b}} A synchronous converter is asynchronous machine that converts alternating current to direct current, or vice versa. A synchronous converter in which motor and generator windings are combined on one armature and excited by one magnetic field is normally used to change alternating to direct current.

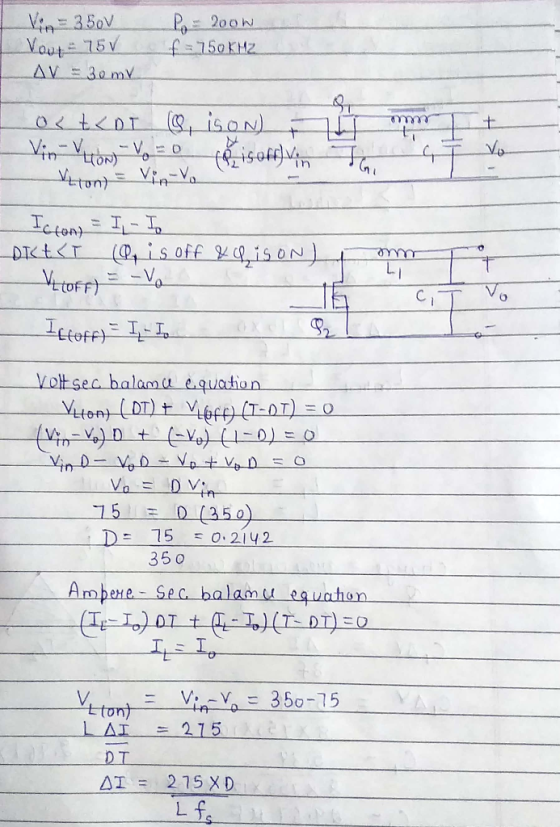

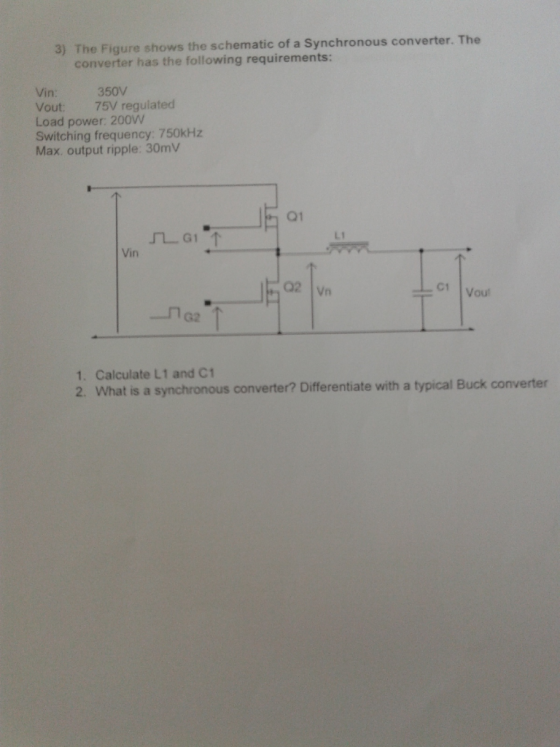

3) The Figure shows the schematic of a Synchronous converter. The converter has the following requirements: 350V Vin: Vout 75V regulated Load power 200W Switching frequency: 750kHz Max. output ripple...

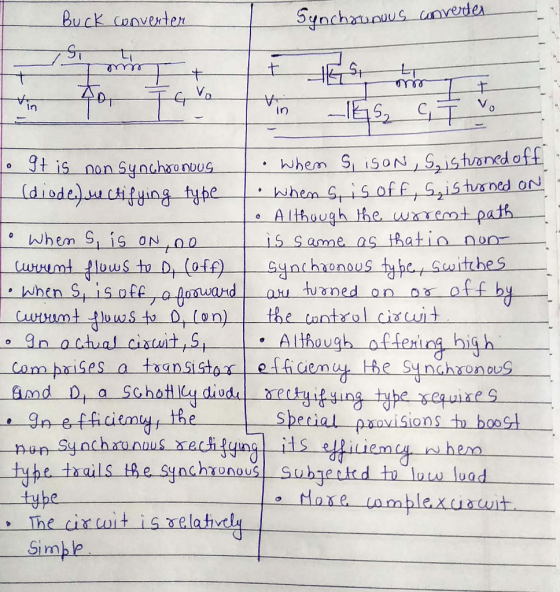

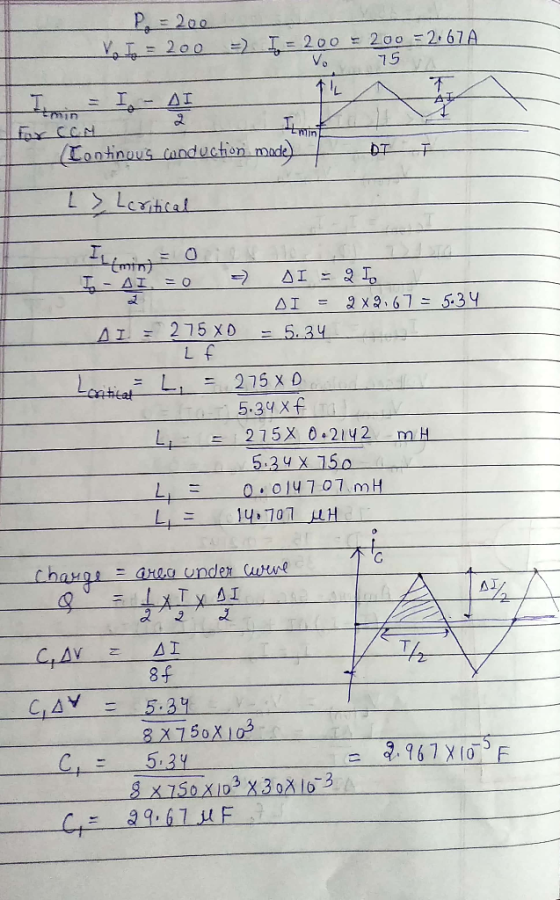

(a) Differentiate the difference and advantage of the synchronous buck converter with a typical buck converter circuit.(b) Sketch the waveforms of the gate drive voltages G1 and G2 assuming a duty cycle of 25% and a maximum gate drive voltage of 10V. How would you prevent the two MOSFET to turn on simultaneously.(c) Calculate L1 and C1, stating all necessary design criteria (e.g. value of duty cycle at the required output voltage).(d) Describe the circuit if a capacitor is connected...
Design a boost converter power stage to the following specification: Input voltage Output voltage: Output voltage ripple:max 20mV Load power: Switching frequency: 15kHz 110-125V 300V 1.5kW Calculate: (i) Maximum duty cycle (ii) Minimum duty cycle (iii) Average diode current (iv) Assuming the Rds(on) of the MOSFET is 0.01 Ω, and the diode forward voltage is 0.8V, calculate the approximate efficiency of the circuit. 2. A switching power supply shown in the circuit below has its switch driven by a signal...
Question 1 For the flyback converter shown in Fig. 1, Vin is 30 V, Vout is 8 V, the output power is 30 w, 30 turns are fitted to winding Ww1, 15 turns are fitted to winding W2, the inductance of W1, L1, is 50 uH and the switching frequency is 200 kHz. The flyback converter operates in continuous conduction mode. Calculate the time for which S1 is switched on a. b. Calculate Aisı during the time S1 is switched...
To design a high efficiency d.c., to d.c power converter with the given specifications min 10V max 15V nominal (regulated) 8V Input voltage: Output voltage: Nominal load current: 4A Inductor current ripple: 0.1A max Switching frequency: 30 kHz Output voltage ripple: 20 mV Define a suitable power circuit topology to meet the above specification? Sketch a circuit diagram of the chosen power circuit topology (a) Define the minimum and maximum duty cycles assuming that the control circuit keeps the output...
