Question

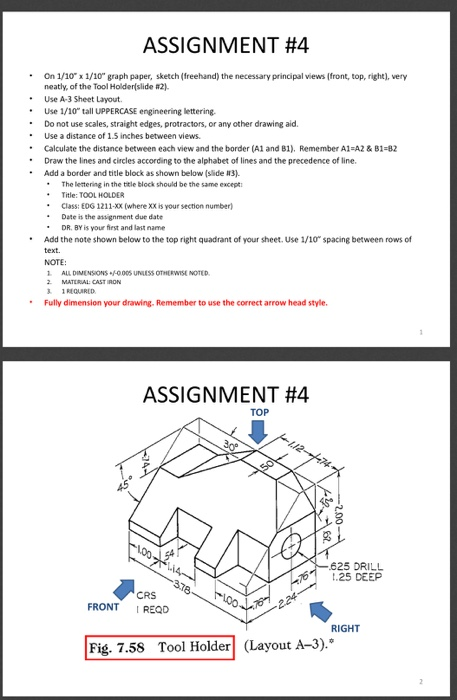

ASSIGNMENT #4 • • • • • • • • On 1/10 1/10 graph paper, sketch (freehand) the necessary principal views (front, top, right), very neatly, of the Tool Holderslide 2) Use A 3 Sheet Layout Use 1/10" tall UPPERCASE engineering lettering Do not use scales, straight edges, protractors, or any other drawing aid. Use a distance of 1.5 inches between views Calculate the distance between each view and the border (A1 and 31). Remember A1-A2 & 61-82 Draw the lines and circles according to the alphabet of lines and the precedence of line. Add a border and title block as shown below slide 83). • The lettering in the block should be the same except • Title: TOOL HOLDER • Class: EDG 1211-K (where is your section number) • Dute is the assignment due date • DR. BY is your first and last name Add the note shown below to the top right quadrant of your sheet. Use 1/10 spacing between rows of text. NOTE: 1 ALL DIMENSIONS 000S UNLESS OTHERWISE NOTED 2 MATERIAL: CAST IRON REQUIRED Fully dimension your drawing. Remember to use the correct arrow head style. ASSIGNMENT #4 17 378- -625 DRILL 19 CRS FRONT I REQD RIGHT Fig. 7.58 Tool Holder (Layout A-3).*

Answer 1

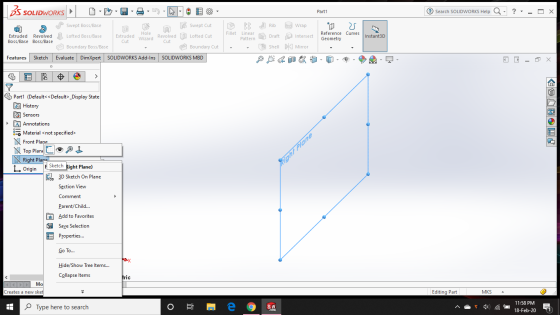

using solidworks select right plane to sketch.

3S SOLIDWORKS On-en 11 8 3 0 - Part1 Search SOLIDWORKS Help Q- ?- - O X Me 25 Reference Curves Geometry Extruded Wizard Extruded Revolved Boss/Base Boss/Base Pattern Rib Wrap Draft Intersect Shell F1 Mirror Instant3D Jº Swept Boss/Base Lofted Boss/Base Revolved i Lofted Cut Cut Boundary Boss/Base Boundary Cut Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD Features Sketch - 2 X 3 Part1 (Default< <Default> _Display State History Sensors A Annotations Material <not specified> Front Plane N Top Plane Co Right Plane L Origin Sketch Right Plane) C 3D Sketch On Plane Section View Comment Parent/Child... Add to Favorites 19 Save Selection Properties... maht Plana Go To... Hide/Show Tree Items... Collapse Items KI Mo Creates a new sket Editing Part MKS Type here to search OB e 9 11:58 PM 18-Feb-20 e

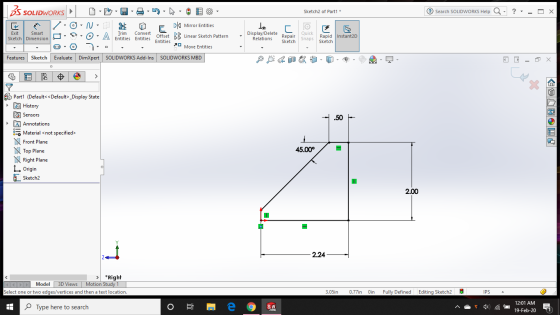

draw the profile.

Sketch2 of Part1 * Search SOLIDWORKS Help Q- ?- - O X 35 SOLIDWORKS ODO-90W-@ 30- 1 / 6 -N - D F 61 Mirror Entities Exit Smart J D - O Sketch Dimension A Trim Convert o Entities Entities Offset Linear Sketch Pattern 0 Move Entities Features Sketch Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD Display/Delete Repair Quick - Relations Snaps Rapid Instant2D Sketch Sketch D - X CE A 6 Part1 (Default< <Default> _Display State History Sensors A Annotations Material <not specified> Front Plane N Top Plane Right Plane L. Origin Sketch2 & 45.000 2.00 2.24 > *Right Model 3D Views Motion Study 1 Select one or two edges/vertices and then a text location. 3.05in 0.77in Oin Fully Defined Editing Sketch2 B P S - Type here to search O I e 9 12:01 AM 19-Feb-20

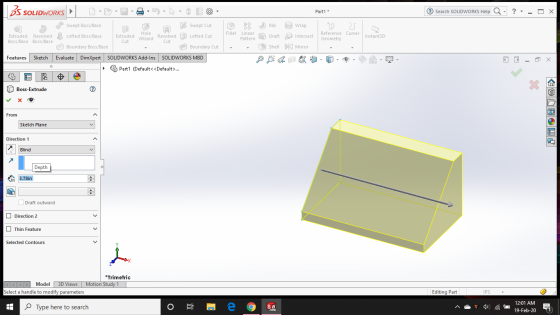

provide depth by extrude bose feature.

BS SOLIDWORKS OD9-9-9 -O EO - Part1 * Search SOLIDWORKS Help Q- ?- - O X s me Reference Curves Extruded Wizard Extruded Revolved Boss/Base Boss/Base Instant3D Rib @ Wrap Draft Intersect Shell F1 Mirror Cut Swept Boss/Base Lofted Boss/Base Revolved i Lofted Cut Cut Boundary Boss/Base Boundary Cut Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD Part1 (Default<<Default>... Geometry , Features Sketch - x Boss-Extrude From Sketch Plane Direction 1 Blind Depth 3.78in Draft outward Direction 2 Thin Feature Selected Contours *Trimetric KIN Model 3D Views Motion Study 1 Select a handle to modify parameters Editing Part IPS . Type here to search O e 9 12:01 AM 19-Feb-20

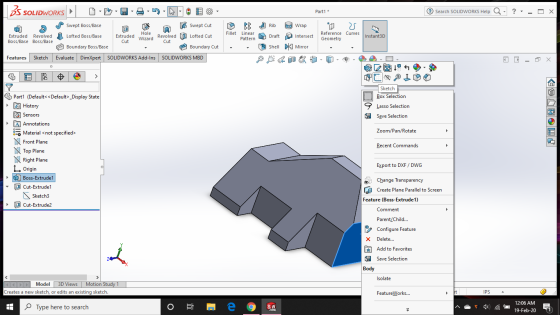

select bottom plane to sketch.

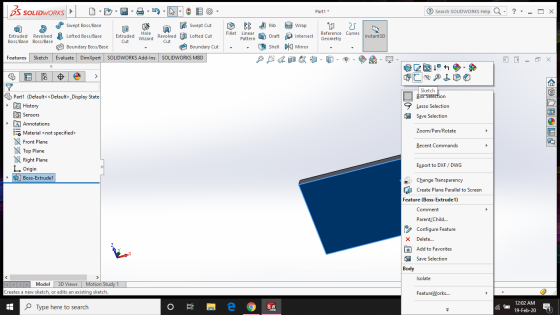

BS SOLIDWORKS > D-00-66 @ " Part1 * Search SOLIDWORKS Help Q- ?- - O X Hole Extruded Fillet Linear Extruded Revolved Boss/Base Boss/Base Rib Wrap Draft Intersect Shell H] Mirror Reference Curves Geometry Instant3D Jo Swept Boss/Base Swept Cut Lofted Boss/Base Extruded Wizard Revolved lofted Cut Cut Cut Boundary Boss/Base Boundary Cut : Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD , Features Sketch ID - x 24- LIV 9 19 Sketch Box Selection Lasso Selection Save Selection Zoom/Pan/Rotate 3 Part1 (Default< <Default>_Display State History Sensors A Annotations Material <not specified> Front Plane Top Plane NRight Plane L. Origin ► ) Boss-Extrude1 Recent Commands Export to DXF/DWG Change Transparency Create Plane Parallel to Screen Feature (Boss-Extrude1) Comment Parent/Child... Configure Feature X Delete... Add to Favorites 9 Save Selection Body Isolate Model 3D Views Motion Study 1 Creates a new sketch, or edits an existing sketch. FeatureWorks... Type here to search O e 9 12:02 AM 19-Feb-20 e

sketch the cut profile

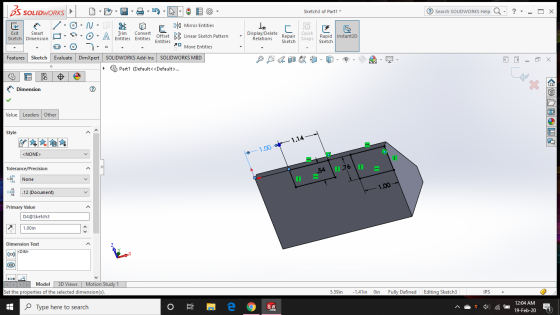

Sketch3 of Part1 * Search SOLIDWORKS Help Q- ?- - O X BS SOLIDWORKS E poi Display/Delete Repair Quick Exit Smart Sketch Dimension D- 9.0.0-0 0 0 09 No b l Mirror Entities 0 . 0 , A Trim Convert Offset Linear Sketch Pattern > Move Entities Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD Part1 (Default< <Default>... O - A Entities Entities Entities - Relations Snaps Rapid Instant2D Sketch Sketch Features Sketch D - X Dimension CE A 6 Value Leaders Other Style 1.14- & 1.00 <NONE> > 54 .76 1 = Tolerance/Precision 1.50 None .541 76 1 *.** 1.00- L .12 (Document) Primary Value D4@Sketch3 1.00in Dimension Text CODIM XOX Model 3D Views Motion Study 1 Set the properties of the selected dimension(s). 5.59in -1.41in Oin Fully Defined Editing Sketch3 IPS Type here to search O I e 9 12:04 AM 19-Feb-20

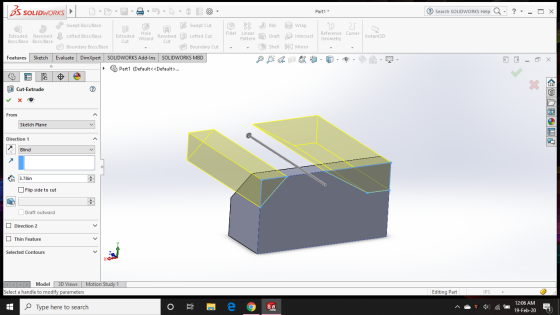

cut that portion by extrude cut feature.

BS SOLIDWORKS OD- E nbre 10- Part1 * Search SOLIDWORKS Help Q- ?- - O X Reference Curves Extruded Wizard Extruded Revolved Boss/Base Boss/Base Instant3D Rib C Wrap Draft Intersect Shell F1 Mirror Swept Boss/Base swept Cut Lofted Boss/Base Revolved i Lofted Cut Cut Cut Boundary Boss/Base Boundary Cut Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD Part1 (Default<<Default>... Geometry , Features Sketch - x Cut-Extrude From Sketch Plane Direction 1 Blind 0 3.78in Flip side to cut Draft outward Direction 2 Thin Feature Selected Contours KM Model 3D Views Motion Study 1 Select a handle to modify parameters Editing Part IPS . Type here to search O I e 9 12:03 AM 19-Feb-20

BS SOLIDWORKS > D-00-66 @ " Part1 * Search SOLIDWORKS Help Q- ?- - O X Extruded Revolved Boss/Base Boss/Base Extruded Wizard Rib Wrap Draft Intersect Shell H] Mirror Reference Curves Geometry Instant3D Jo Swept Boss/Base Swept Cut Lofted Boss/Base Hole Revolved lofted Cut Cut Cut Boundary Boss/Base Boundary Cut : Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD , Features Sketch - 2 X 2 1° - U 9 19 Sketch Box Selection Lasso Selection Save Selection Zoom/Pan/Rotate 3 Part1 (Default< <Default> _Display State History Sensors A Annotations Material <not specified> Front Plane Top Plane NRight Plane L. Origin o Boss-Extrude1 Cut-Extrudel Sketch3 Recent Commands Export to DXF / DWG Change Transparency Create Plane Parallel to Screen Feature (Boss-Extrude1) Comment Parent/Child... Configure Feature X Delete... Add to Favorites 19 Save Selection Body Isolate Model 3D Views Motion Study 1 Creates a new sketch, or edits an existing sketch. FeatureWorks... PS Type here to search O I e 9 12:04 AM 19-Feb-20

Select back plane to sketch.

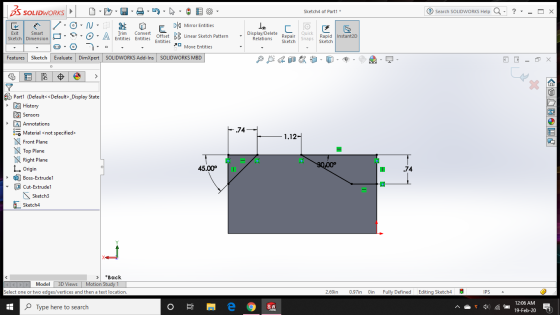

draw the cut profile.

Sketch4 of Part1 * Search SOLIDWORKS Help Q- ?- - O X 35 SOLIDWORKS ODO-90W-@ 30- 1 / 6 -N - D F 61 Mirror Entities Exit Smart J D - O Sketch Dimension A Trim Convert o Entities Entities Offset Linear Sketch Pattern 0 Move Entities Features Sketch Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD Display/Delete Repair Quick - Relations Snaps Rapid Instant2D Sketch Sketch D - X CE A 6 74 " 1.12- & Part1 (Default< <Default> _Display State History Sensors A Annotations Material <not specified> Front Plane Top Plane Right Plane L. Origin a) Boss-Extrude1 Cut-Extrude1 Sketch3 Sketch4 - X 300 45.00 > *Back Model 3D Views Motion Study 1 Select one or two edges/vertices and then a text location. 2.69in 0.97in Oin Fully Defined Editing Sketch4 O P S - Type here to search OB e 9 12:06 AM 19-Feb-20 e

extrude cut that profile.

BS SOLIDWORKS OD- E nbre 10- Part1 * Search SOLIDWORKS Help Q- ?- - O X s me Reference Curves Extruded Wizard Extruded Revolved Boss/Base Boss/Base Instant3D Rib @ Wrap Draft Intersect Shell F1 Mirror Swept Boss/Base Lofted Boss/Base Revolved i Lofted Cut Cut Cut Boundary Boss/Base Boundary Cut Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD Part1 (Default<<Default>... Geometry , Features Sketch - x Cut-Extrude From Sketch Plane Direction 1 Blind 0 3.78in Flip side to cut : Draft outward Direction 2 Thin Feature > Selected Contours > KM Model 3D Views Motion Study 1 Select a handle to modify parameters Editing Part IPS . Type here to search Oi e 9 12:06 AM 19-Feb-20 e

select right plane.

BS SOLIDWORKS > D-00-66 @ " Part1 * Search SOLIDWORKS Help Q- ?- - O X Extruded Wizard Fillet Linear Extruded Revolved Boss/Base Boss/Base Instant3D Jo Swept Boss/Base Swept Cut Lofted Boss/Base Hole Revolved lofted Cut Cut Cut Boundary Boss/Base Boundary Cut : Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD Rib Wrap Draft Intersect Shell H] Mirror Reference Curves Geometry potten By Sh scometince curves , Features Sketch BD CRU - x Sketch Box Selection Lasso Selection Save Selection 19 Zoom/Pan/Rotate Recent Commands 3 Part1 (Default< <Default> _Display State History Sensors A Annotations Material <not specified> Front Plane Top Plane NRight Plane L. Origin a) Boss-Extrude1 - Cut-Extrude1 Sketch3 ► Cut-Extrude2 Export to DXF/DWG 0 Change Transparency Create Plane Parallel to Screen Feature (Boss-Extrude1) Comment Parent/Child... % Configure Feature X Delete... Add to Favorites 19 Save Selection Body Isolate | Model 3D Views Motion Study 1 Creates a new sketch, or edits an existing sketch. FeatureWorks... it IPS . Type here to search O e 9 no 1 lato 12:06 AM 19-Feb-20 e

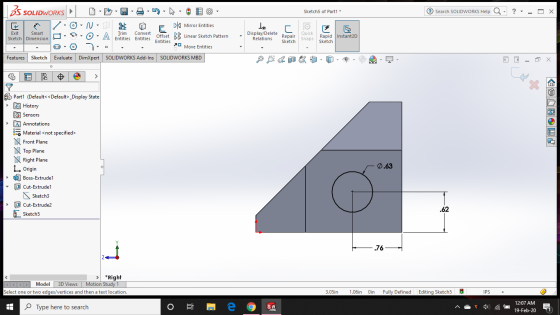

draw the circle.

Sketch5 of Part1 * Search SOLIDWORKS Help Q- ?- - O X 35 SOLIDWORKS 1 / ODO-90W-@ 30- 6 -N - D F 61 Mirror Entities - A Entities Entities Offset Linear Sketch Pattern 0 Move Entities , , A , A Trim Convert Display/Delete Repair Exit Smart Sketch Dimension Quick - Relations Snaps Rapid Instant2D Sketch Sketch Features Sketch Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD D - X CE A 6 & Part1 (Default< <Default> _Display State History Sensors A Annotations Material <not specified> Front Plane Top Plane Right Plane L. Origin ) Boss-Extrudel Cut-Extrude1 Sketch3 Cut-Extrude2 Sketch -0.63 ► - ► .766 > *Right Model 3D Views Motion Study 1 Select one or two edges/vertices and then a text location. 3.05in 1.06in Oin Fully Defined Editing Sketch5 B TPS- Type here to search O e 9 12:07 AM 19-Feb-20

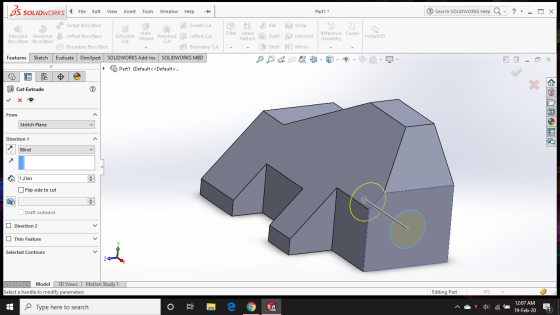

cut that profile up to given depth .

Part1 * Search SOLIDWORKS Help Q- ?- - O X in Extruded Wizard Fillet Linear 25 SOLIDWORKS File Edit View Insert Tools Window Help Swept Boss/Base Extruded Revolved Lofted Boss/Base Hole Revolved i Lofted Cut Boss/Base Boss/Base Cut Cut Boundary Boss/Base Boundary Cut Features Sketch Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD Part1 (Default<<Default>... Rib Wraps Reference Curves Draft Intersect Geometry Shell F1 Mirror Instant3D Pattern - 2x Cut-Extrude From Sketch Plane Direction 1 Blind 01.25in Flip side to cut : Draft outward Direction 2 Thin Feature Selected Contours KM Model 3D Views Motion Study 1 Select a handle to modify parameters Editing Part IPS . Type here to search Oi e 9 12:07 AM 19-Feb-20

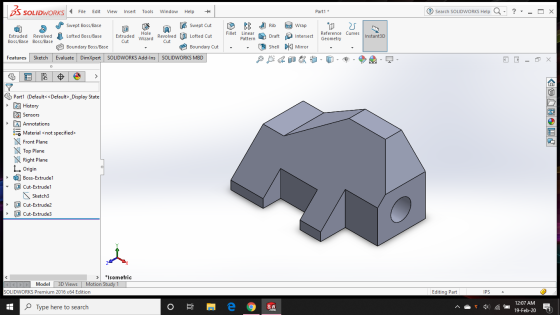

final part.

Ssan LIDWORKS File Edit View Insert Tools Window Help Part1 * Search SOLIDWORKS Help Q- ?- - O X 25 m Fillet Extruded Wizard Linear Extruded Revolved Boss/Base Boss/Base Rib Wrap Draft Intersect Shell H] Mirror Reference Curves Geometry Instant3D Sº swept Boss/Base swept Cut Hole Lofted Boss/Base Revolved Lofted Cut Cut Boundary Boss/Base Boundary Cut : Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD Cut , Features Sketch - x 3 Part1 (Default< <Default> _Display State History Sensors A Annotations Material <not specified> Front Plane Top Plane Right Plane L. Origin a) Boss-Extrude1 - Cut-Extrude1 Sketch3 ► Cut-Extrude2 Cut-Extrude3 > *Isometric Model 3D Views Motion Study 1 SOLIDWORKS Premium 2016 x64 Edition Editing Part IPS . Type here to search O e 9 12:07 AM 19-Feb-20

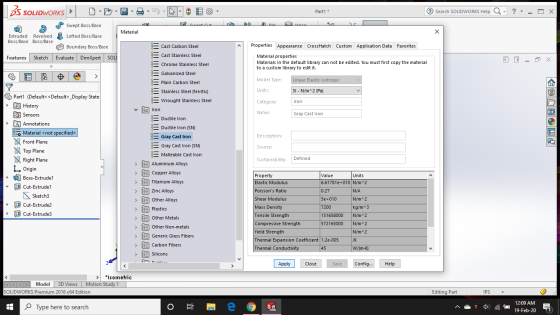

provide material.

| 3S SOLIDWORKS O-09-06-1-6 80 Part1 * Search SOLIDWORKS Help Q - ? - - 0 x want Cut Adib A Material Extruded Revolved Boss/Base Boss/Base Jo Swept Boss/Base Lofted Boss/Base Boundary Boss/Base Evaluate DimXpert SOL Properties Appearance CrossHatch Custom Application Data Favorites Features Sketch Material properties Materials in the default library can not be edited. You must first copy the material to a custom library to edit it. - 2 X Model Type: Linear Elastic Isotropic Units: SI - N/m^2 (Pa) Category: Iron Name: Gray Cast Iron Description: Source: Part1 (Default< <Default> _Display State History Sensors A Annotations Material <not specified> Front Plane Top Plane Right Plane L. Origin i Boss-Extrudel Cut-Extrude1 Sketch3 Cut-Extrude2 Cut-Extrude3 Cast Carbon Steel Cast Stainless Steel Chrome Stainless Steel Galvanized Steel Plain Carbon Steel Stainless Steel (ferritic) Wrought Stainless Steel Iron Ductile Iron Ductile Iron (SN) Gray Cast Iron Gray Cast Iron (SN) Malleable Cast Iron Aluminium Alloys E Copper Alloys E Titanium Alloys E Zinc Alloys E Other Alloys Plastics Other Metals Other Non-metals E Generic Glass Fibers IB Carbon Fibers Silicons Sustainability: Defined > - Ratio ► > > > Property Value Units Elastic Modulus 6.61781e-010 N/m^2 Poisson's Ratio |0.27 N/A Shear Modulus 5e-010 N/m^2 Mass Density 7200 kg/m^3 Tensile Strength 151658000 N/m^2 Compressive Strength 572165000 N/m^2 Yield Strength N/m^2 Thermal Expansion Coefficient 1.2e-005 /K Thermal Conductivity 45 W/(mK) > Apply Close Save Config... Help > *Isometric KEMI Model 3D Views Motion Study 1 SOLIDWORKS Premium 2016 x64 Edition Editing Part IPS . Type here to search OB e 9 12:09 AM 19-Feb-20

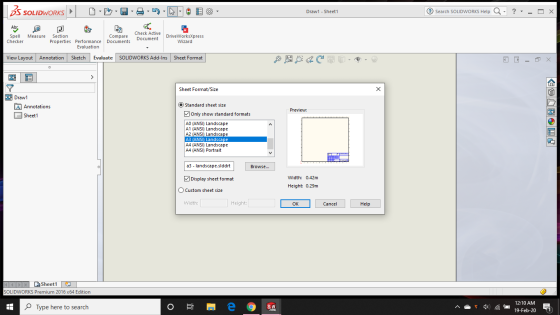

select A3 sheet layout. In drawing from part.

35 SOLIDWORKS 0-0 9.30 W 11 6 0 - Draw 1 - Sheet1 Search SOLIDWORKS Help Q- ?- - X Check Active Compare Spell Checker Measure Document Section Properties Performance Documents Evaluation DriveWorksXpress Wizard View Layout Annotation Sketch Evaluate SOLIDWORKS Add-Ins Sheet Format Sheet Format/Size 2 Draw1 A Annotations @ Sheet1 Standard sheet size MOnly show standard formats Preview: AO (ANSI) Landscape A1 (ANSI) Landscape A2 (ANSI) Landscape A3 (ANSI) Landscape A4 (ANSI) Landscape A4 (ANSI) Portrait a3 - landscape.slddrt Browse... Display sheet format Width: 0.42m Height: 0.29m O Custom sheet size Width: Height: OK Cancel Help KTM Sheet1 SOLIDWORKS Premium 2016 764 Edition SOLIDWORKS Premium 2016 x64 Edition 1 Type here to search O Bie 9 SW 12:10 AM 19-Feb-20

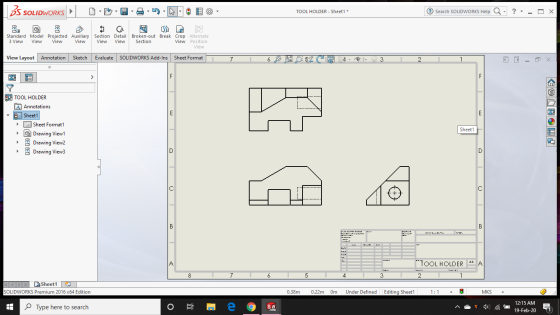

show 3 view and edit the features given.

35 SOLIDWORKS 0- 9.9.9.1-6 TOOL HOLDER - Sheet1 * Search SOLIDWORKS Help Q- ?- - O X Standard Model Projected Auxiliary Section Detail Broken-out Break Crop Alternate 3 View View View View View View Section View Position View View Layout Annotation Sketch Evaluate SOLIDWORKS Add-Ins Sheet Format ID - x EP TOOL HOLDER A Annotations Sheet1 Sheet Format1 Drawing View1 Drawing View2 Drawing View3 Sheet1 TOOL HOLDER 4 A 5 K M Sheet1 SOLIDWORKS Premium 2016 x64 Edition 0.38m 0.22m Om Under Defined Editing Sheet1 1:1 MKS . 1 Type here to search O e 9 12:15 AM 19-Feb-20 e

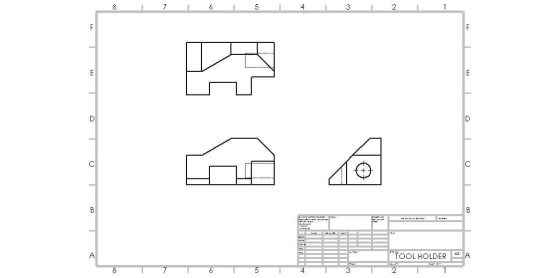

TOOL HOLDER - A

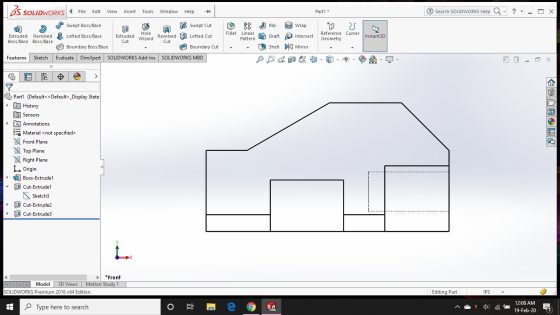

front view.

Ssan LIDWORKS File Edit View Insert Tools Window Help Part1 * Search SOLIDWORKS Help Q- ?- - O X 25 m Fillet Extruded Wizard Linear Extruded Revolved Boss/Base Boss/Base Rib Wrap Draft Intersect Shell H] Mirror Reference Curves Geometry Instant3D Sº swept Boss/Base swept Cut Lofted Boss/Base Hole Revolved Lofted Cut Cut Wizard Cute Boundary Boss/Base Boundary Cut : Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD , Features Sketch - 2 X 3 Part1 (Default< <Default> _Display State History Sensors A Annotations Material <not specified> Front Plane Top Plane Right Plane L. Origin a) Boss-Extrude1 - Cut-Extrude1 Sketch3 ► Cut-Extrude2 Cut-Extrude3 > Front Model 3D Views Motion Study 1 SOLIDWORKS Premium 2016 x64 Edition Editing Part IPS . Type here to search O e 9 12:08 AM 19-Feb-20

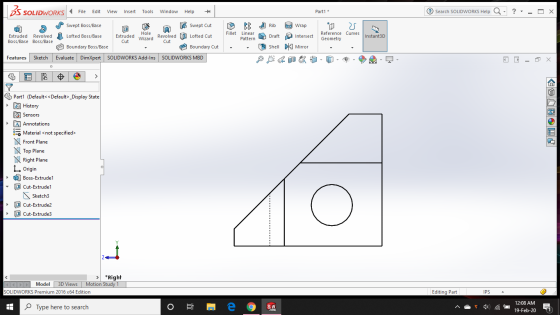

right side view

Ssan LIDWORKS File Edit View Insert Tools Window Help Part1 * Search SOLIDWORKS Help Q- ?- - O X 25 m Fillet Extruded Wizard Linear Extruded Revolved Boss/Base Boss/Base Rib Wrap Draft Intersect Shell H] Mirror Reference Curves Geometry Instant3D Sº swept Boss/Base swept Cut Hole Lofted Boss/Base Revolved Lofted Cut Cut Boundary Boss/Base Boundary Cut : Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD Cut , Features Sketch - 2 X 3 Part1 (Default< <Default> _Display State History Sensors A Annotations Material <not specified> Front Plane Top Plane Right Plane L. Origin a) Boss-Extrude1 - Cut-Extrude1 Sketch3 ► Cut-Extrude2 Cut-Extrude3 > #Right Model 3D Views Motion Study 1 SOLIDWORKS Premium 2016 x64 Edition Editing Part IPS Type here to search Oi e 9 12:08 AM 19-Feb-20

top view

Ssan LIDWORKS File Edit View Insert Tools Window Help Part1 * Search SOLIDWORKS Help Q- ?- - O X 25 m Fillet Extruded Wizard Linear Extruded Revolved Boss/Base Boss/Base Rib Wrap Draft Intersect Shell H] Mirror Reference Curves Geometry Instant3D Sº swept Boss/Base swept Cut Lofted Boss/Base Hole Revolved Lofted Cut Cut Wizard Cute Boundary Boss/Base Boundary Cut : Evaluate DimXpert SOLIDWORKS Add-Ins SOLIDWORKS MBD , Features Sketch - 2 X 3 Part1 (Default< <Default> _Display State History Sensors A Annotations Material <not specified> Front Plane Top Plane Right Plane L. Origin a) Boss-Extrude1 - Cut-Extrude1 Sketch3 ► Cut-Extrude2 Cut-Extrude3 > *Top Model 3D Views Motion Study 1 SOLIDWORKS Premium 2016 x64 Edition Editing Part IPS . Type here to search O e 9 12:08 AM 19-Feb-20
