Question

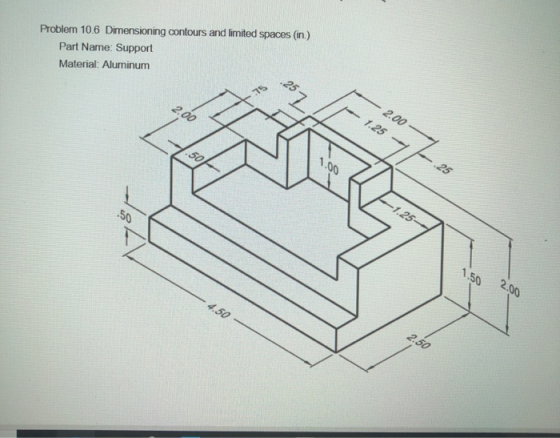

Problem 10.6 Dimensioning contours and limited spaces (in.) Part Name: Support Material: Aluminum 2.00 - -- 1.25 - 2.00 - 4.50

Answer 1

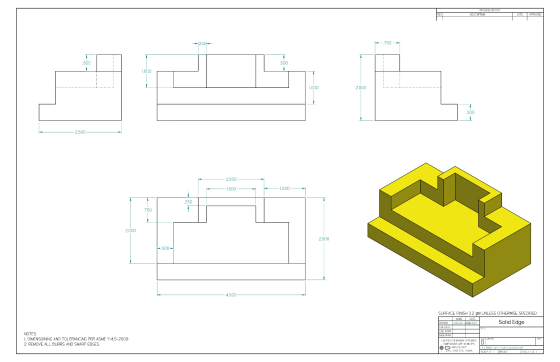

All views are of first angle projection.

General note is provided over the template box.

REVISION TISTORY DESCRIPTION DATE APPROVED 250+ .750- .500 .500 1.000 1.000 2.000 500 2.500 2.000 1.500 — 1.250 .250 750 / 2.000 2.500 500 - 4.500 SURFACE FINISH 3.2 UM UNLESS OTHERWISE SPECIFIED NAME DATE DRAWN Santosh 20 9/20 Solid Edge NOTES I. DIMENSOINING AND TOLERANCING PER ASME YI 4.5-2009 2. REMOVE ALL BURRS AND SHARP EDGES. 525 DAUNO [NC APPR MGR APPR UNESS OTHERWISE SKECIFIED DIMENSIONS ARE N INCIES O D ANGLES XX 2 PL *XXX 3PL *XXXX ELE NAME cm SCALE 2:1 torna problem.dit WEIGHT: SHLLT I OLI
