(a) A square loop of wire with sides of length 40cm is in a uniform magnetic...

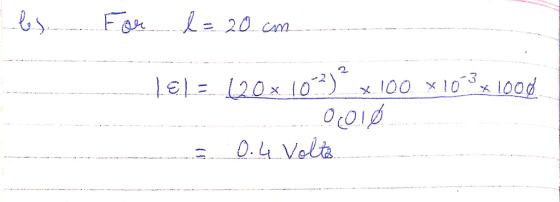

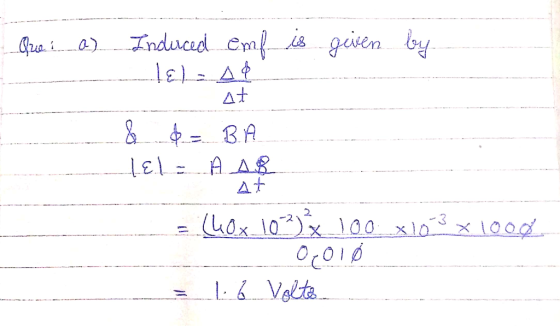

(a) A square loop of wire with sides of length 40cm is in a uniform magnetic field perpendicular to its area. if the field's strength is initially 100mT and it decays to zero in 0.010 s, what is the magnitude of the average emf induced into the loop? (b) What is the average emf if the sides of the loop were only 20cm?
Homework Answers
