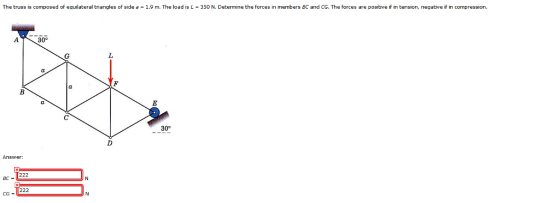

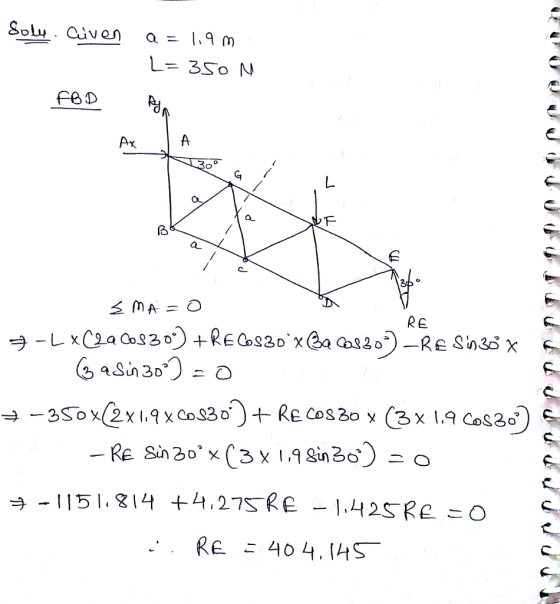

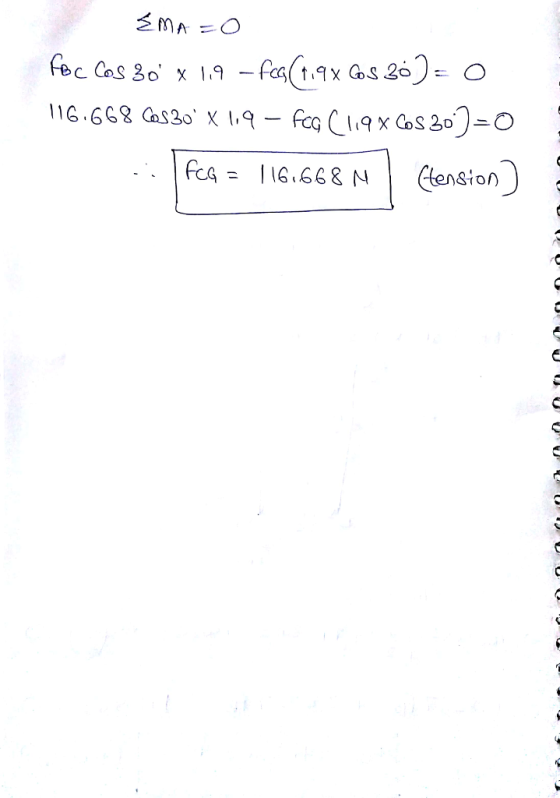

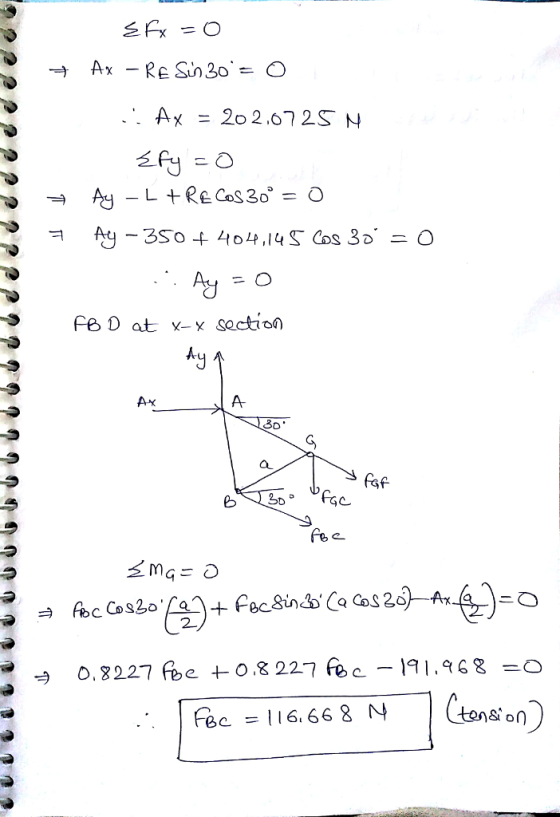

The truss is composed of equilateral triangles of side a-1.9 m. The load is L 350...
Incorrect lculate the forces in members BC, CD, and CG of the loaded truss composed of...
Incorrect lculate the forces in members BC, CD, and CG of the loaded truss composed of equilateral triangles, each of side length 8 m. The forces are positive if in tension, negative if in compression 5.2 KN 8 m 2.1 KN swers: c = T-3.69 kN D7.96 kN kN the tolerance is +/-2% ick if you would like to Show Work for this question:
Determine the forces in members CG and GH of the symmetrically loaded truss. The forces are...
Determine the forces in members CG and GH of
the symmetrically loaded truss. The forces are positive if in
tension and negative if in compression.
Question 19 View Policies Current Attempt in Progress Determine the forces in members CG and GH of the symmetrically loaded truss. The forces are positive if in tension and negative if in compression. 12 m- 4m- 2m- E 2 m 30 A Answers: CG= i GH = i
3- Determine the forces in members CG, CD and GH of the following oaded truss using...
3- Determine the forces in members CG, CD and GH of the following oaded truss using section method and indicate whether the members are in compression. Assume L-50 KN tension or (20 points) 4 m 3 m 3 m I G 30° 2
Problem 6.8 3 of 6 Part A Determine the force in member DE of the truss,...
Problem 6.8 3 of 6 Part A Determine the force in member DE of the truss, and state if the member is in tension or compression. Take Fi 501 N , F, = 814 N (Figure 1) Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression Figure 1 of 1 > 4 m Value Units F, Request Answer Part B Determine the forces...
For the truss shown, determine the axial load in members BC and BE. Indicate whether the...
For the truss shown, determine the axial load in members BC and BE. Indicate whether the mem- bers are in tension (T) or compression (C). Use both method of sections and method of joints. 2 m 2 m 3 m
A snow load transfers the forces shown to the upper joints of a Pratt roof truss....
A snow load transfers the forces shown to the upper joints of a Pratt roof truss. Neglect any horizontal reactions at the supports and solve for the forces in all members. Forces are positive if in tension, negative if in compression 3.9 kN 3.9 kN 3.9 kN 3.9kNB 2.9 m D 39kN 2.0 mH 2.0m G 2.0m 2.0m Answers: kN kN kN kN kN kN kN kN kN kN kN kN kN BG- CD CG DE EF GH
Determine the axial forces in the members of the truss and indicate whether they are in...
Determine the axial forces in the members of the truss and indicate whether they are in tension (T) or compression (C). 100 N H15 A 3 m B с 4 m 4 m (*counterclockwise-positive; clockwise-negative) (*beam weight is negligible) (*Do not forget to draw the free-body diagrams! Not only one FBD!) (*The members are AB, AC, and BC)
Question 2 Determine the forces in members FG, CG, BC, and EF for the loaded crane...
Question 2 Determine the forces in members FG, CG, BC, and EF for the loaded crane truss. The forces are positive if in tension, negative if in compression. 0.35 m E D 4 m 4 m с 4 m 95 KN 4 m 0.35 m B 4 m Н. 45° А Answers: FG = KN CG = KN BC = KN EF = KN
Chapter S4, Problem S4/018 The signboard truss is designed to support a horizontal wind load of...
Chapter S4, Problem S4/018 The signboard truss is designed to support a horizontal wind load of 725 lb. A separate analysis shows that 5/8 of this force is transmitted to the center connection at C and the rest is equally divided between D and B. Calculate the forces in members BE and BC. The forces are positive if in tension, negative if in compression. 5.5 725 lb 5.5 F /B 6.0' 5.5 6.0' 3.0 Answers: BE = Ib BC =...
Tarnororaovore oorRo oroor wrram The below truss is pinned at C and roller supported at A....
Tarnororaovore oorRo oroor wrram The below truss is pinned at C and roller supported at A. A load of 200 N downward is applied at joint B while a 400 N right-hand load at D. The total horizontal span is 8 m of length and the vertical one is 3 m. or in compression ? Are the link members of the following truss in tension 00N 3m 400N 4m 4m A Compression Ad Lnk AB B Tension Link AD nk...
Incorrect lculate the forces in members BC, CD, and CG of the loaded truss composed of equilateral triangles, each of side length 8 m. The forces are positive if in tension, negative if in compression 5.2 KN 8 m 2.1 KN swers: c = T-3.69 kN D7.96 kN kN the tolerance is +/-2% ick if you would like to Show Work for this question:
Determine the forces in members CG and GH of
the symmetrically loaded truss. The forces are positive if in
tension and negative if in compression.
Question 19 View Policies Current Attempt in Progress Determine the forces in members CG and GH of the symmetrically loaded truss. The forces are positive if in tension and negative if in compression. 12 m- 4m- 2m- E 2 m 30 A Answers: CG= i GH = i
3- Determine the forces in members CG, CD and GH of the following oaded truss using section method and indicate whether the members are in compression. Assume L-50 KN tension or (20 points) 4 m 3 m 3 m I G 30° 2
Problem 6.8 3 of 6 Part A Determine the force in member DE of the truss, and state if the member is in tension or compression. Take Fi 501 N , F, = 814 N (Figure 1) Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression Figure 1 of 1 > 4 m Value Units F, Request Answer Part B Determine the forces...
For the truss shown, determine the axial load in members BC and BE. Indicate whether the mem- bers are in tension (T) or compression (C). Use both method of sections and method of joints. 2 m 2 m 3 m
A snow load transfers the forces shown to the upper joints of a Pratt roof truss. Neglect any horizontal reactions at the supports and solve for the forces in all members. Forces are positive if in tension, negative if in compression 3.9 kN 3.9 kN 3.9 kN 3.9kNB 2.9 m D 39kN 2.0 mH 2.0m G 2.0m 2.0m Answers: kN kN kN kN kN kN kN kN kN kN kN kN kN BG- CD CG DE EF GH
Determine the axial forces in the members of the truss and indicate whether they are in tension (T) or compression (C). 100 N H15 A 3 m B с 4 m 4 m (*counterclockwise-positive; clockwise-negative) (*beam weight is negligible) (*Do not forget to draw the free-body diagrams! Not only one FBD!) (*The members are AB, AC, and BC)
Question 2 Determine the forces in members FG, CG, BC, and EF for the loaded crane truss. The forces are positive if in tension, negative if in compression. 0.35 m E D 4 m 4 m с 4 m 95 KN 4 m 0.35 m B 4 m Н. 45° А Answers: FG = KN CG = KN BC = KN EF = KN
Chapter S4, Problem S4/018 The signboard truss is designed to support a horizontal wind load of 725 lb. A separate analysis shows that 5/8 of this force is transmitted to the center connection at C and the rest is equally divided between D and B. Calculate the forces in members BE and BC. The forces are positive if in tension, negative if in compression. 5.5 725 lb 5.5 F /B 6.0' 5.5 6.0' 3.0 Answers: BE = Ib BC =...
Tarnororaovore oorRo oroor wrram The below truss is pinned at C and roller supported at A. A load of 200 N downward is applied at joint B while a 400 N right-hand load at D. The total horizontal span is 8 m of length and the vertical one is 3 m. or in compression ? Are the link members of the following truss in tension 00N 3m 400N 4m 4m A Compression Ad Lnk AB B Tension Link AD nk...
