Determine the axial forces in the members of the truss and indicate whether they are in...
Determine the axial forces in the members of the truss and indicate whether they are in...

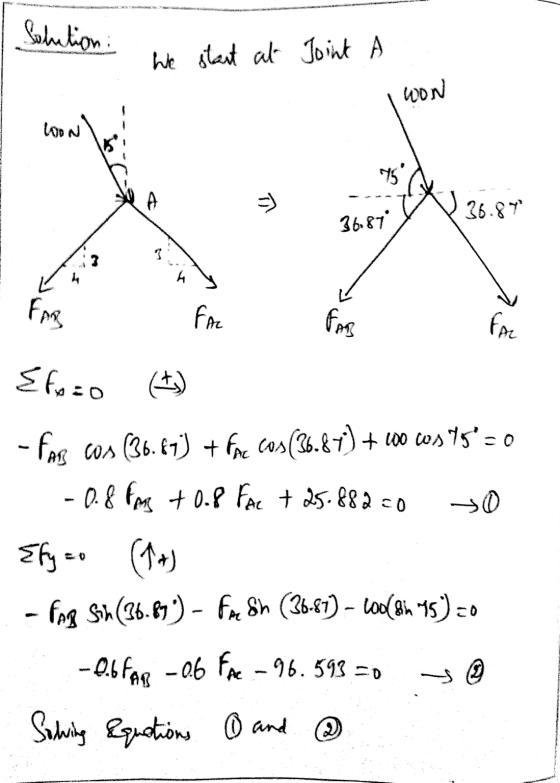

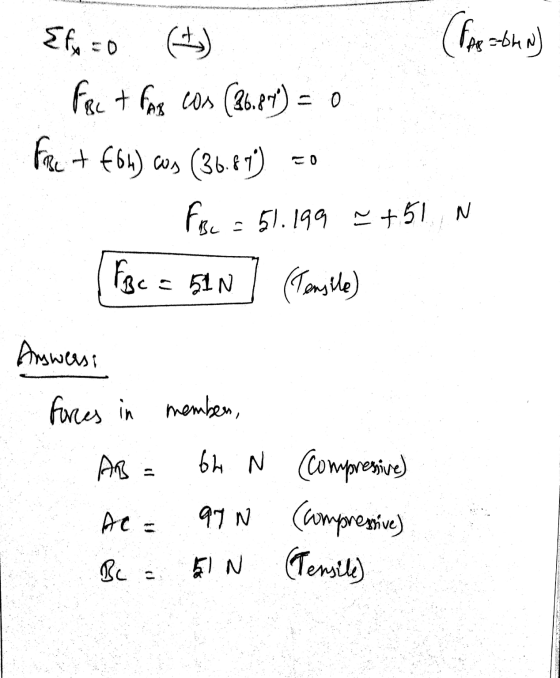

Determine the axial forces in the members of the truss and indicate whether they are in tension (T) or compression (C). 0.4 m 0.7 m 0.7 m
For the truss shown, determine the axial load in members BC and BE. Indicate whether the...
For the truss shown, determine the axial load in members BC and BE. Indicate whether the mem- bers are in tension (T) or compression (C). Use both method of sections and method of joints. 2 m 2 m 3 m
Determine the forces in members DC, CB and BA of the truss. State whether the members...
Determine the forces in members DC,
CB and BA of the truss. State
whether the members are in tension or compression. Set 6 kN
Determine the forces in members DE and
EA of the truss. State whether the members are in
tension or compression.
Determine the forces in members CE and
BE of the truss. State whether the members are in
tension or compression.
4 m 60 60° 4 m 4 m
Determine the forces in the following members of the truss: BC, FD, and BJ. Indicate tension...
Determine the forces in the following members of the truss: BC, FD, and BJ. Indicate tension or compression. Point F is at the middle of DG. ¥9—+ 4 ft 4 ft - 19—+ 3000 lb 1000 lb 19
Determine the force in members EL and LM of the truss and state if the members...
Determine the force in members EL and LM of the truss and state if the members are in tension or compression. (Draw the free-body diagrams separately. Reaction forces and moments cannot be shown on the original figure.) 3@1m = 3m 41 m = 4 m 500 N 500N
Part A - Determining the forces in three specified members of the truss Determine the forces...
Part A - Determining the forces in three
specified members of the truss
Determine the forces in members CD, DH, and
GH.
Express the magnitudes of the forces in pounds to three
significant figures. Separate your answers with commas.
Part B - The Sense of the Forces
State if the members considered in part A are in tension or
compression.
Complete each sentenc
e by dragging the appropriate word into the blank. The words can
be used more than once....
1 4 m .Determine the reaction ine&E Determine the axial forces on Truss members, and stat...
1 4 m .Determine the reaction ine&E Determine the axial forces on Truss members, and stat they are compression or tension members Points) Determine the Reactions in D &B 60 1b M-75 lb.ft 12 ft 8 ft 15 ft RDY RDy
Determine the force in members EL and LM of the truss and state if the members...
Determine the force in members EL and LM of the truss and state if the members are in tension or compression. (Draw the free-body diagrams separately. Reaction forces and moments cannot be shown on the original figure.) 3@1m =3m 1 Н E 4@1m=4m 500N M 500N W OST
Determine the forces of all the members of the truss. Indicate if tension or compression.
Determine the forces of all the members of the truss. Indicate if tension or compression.
Determine the forces in members CG and GH of the symmetrically loaded truss. The forces are...
Determine the forces in members CG and GH of
the symmetrically loaded truss. The forces are positive if in
tension and negative if in compression.
Question 19 View Policies Current Attempt in Progress Determine the forces in members CG and GH of the symmetrically loaded truss. The forces are positive if in tension and negative if in compression. 12 m- 4m- 2m- E 2 m 30 A Answers: CG= i GH = i
Determine the axial forces in the members of the truss and indicate whether they are in tension (T) or compression (C). 0.4 m 0.7 m 0.7 m
For the truss shown, determine the axial load in members BC and BE. Indicate whether the mem- bers are in tension (T) or compression (C). Use both method of sections and method of joints. 2 m 2 m 3 m
Determine the forces in members DC,
CB and BA of the truss. State
whether the members are in tension or compression. Set 6 kN
Determine the forces in members DE and
EA of the truss. State whether the members are in
tension or compression.
Determine the forces in members CE and
BE of the truss. State whether the members are in
tension or compression.
4 m 60 60° 4 m 4 m
Determine the forces in the following members of the truss: BC, FD, and BJ. Indicate tension or compression. Point F is at the middle of DG. ¥9—+ 4 ft 4 ft - 19—+ 3000 lb 1000 lb 19
Determine the force in members EL and LM of the truss and state if the members are in tension or compression. (Draw the free-body diagrams separately. Reaction forces and moments cannot be shown on the original figure.) 3@1m = 3m 41 m = 4 m 500 N 500N
Part A - Determining the forces in three
specified members of the truss
Determine the forces in members CD, DH, and
GH.
Express the magnitudes of the forces in pounds to three
significant figures. Separate your answers with commas.
Part B - The Sense of the Forces
State if the members considered in part A are in tension or
compression.
Complete each sentenc
e by dragging the appropriate word into the blank. The words can
be used more than once....
1 4 m .Determine the reaction ine&E Determine the axial forces on Truss members, and stat they are compression or tension members Points) Determine the Reactions in D &B 60 1b M-75 lb.ft 12 ft 8 ft 15 ft RDY RDy
Determine the force in members EL and LM of the truss and state if the members are in tension or compression. (Draw the free-body diagrams separately. Reaction forces and moments cannot be shown on the original figure.) 3@1m =3m 1 Н E 4@1m=4m 500N M 500N W OST
Determine the forces of all the members of the truss. Indicate if tension or compression.
Determine the forces in members CG and GH of
the symmetrically loaded truss. The forces are positive if in
tension and negative if in compression.
Question 19 View Policies Current Attempt in Progress Determine the forces in members CG and GH of the symmetrically loaded truss. The forces are positive if in tension and negative if in compression. 12 m- 4m- 2m- E 2 m 30 A Answers: CG= i GH = i
