Determine the force in members EL and LM of the truss and state if the members...

Question

Question

Determine the force in members EL and LM of the truss and state if the members are in tension or compression. (Draw the free-

engineering Mechanical-Engineering

Answer 1

Answer #1

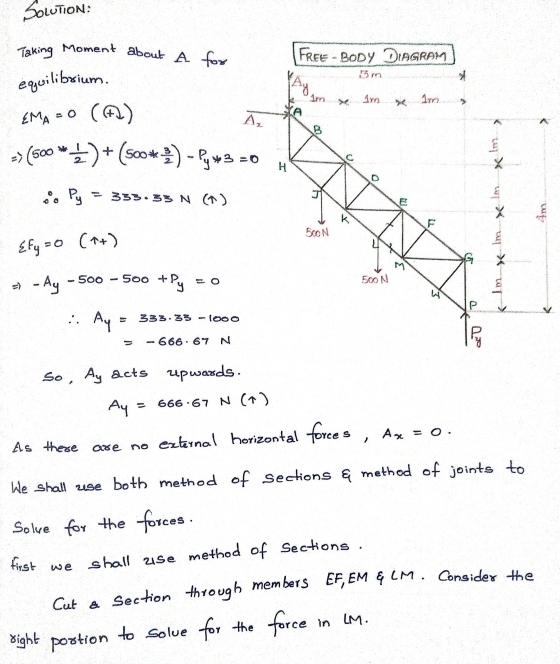

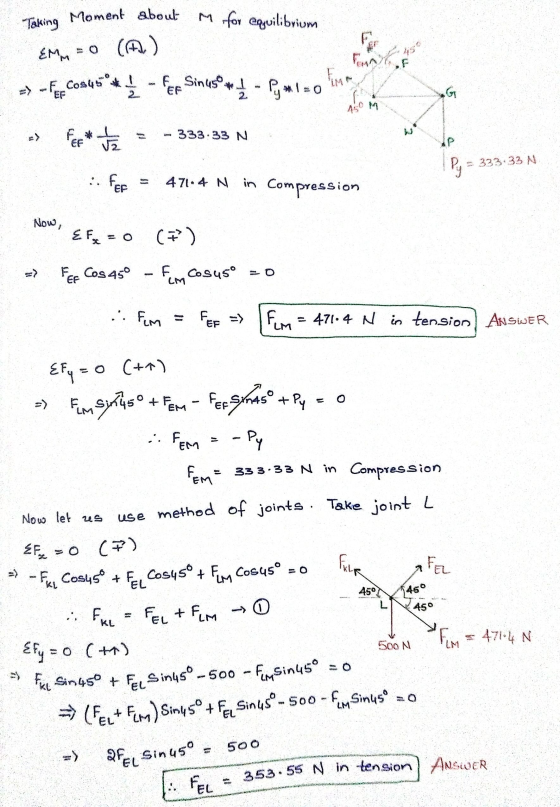

A detailed solution is given in the image. Hope it's helpful.

Answer 2

Similar Homework Help Questions

Determine the force in members EL and LM of the truss and state if the members...

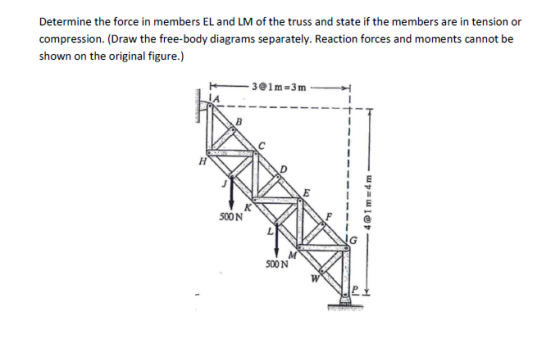

Determine the force in members EL and LM of the truss and state if the members are in tension or compression. (Draw the free-body diagrams separately. Reaction forces and moments cannot be shown on the original figure.) 3@1m =3m 1 Н E 4@1m=4m 500N M 500N W OST
Determine the force in members EL and LM of the truss and state if the members...

Determine the force in members EL and LM of the truss and state if the members are in tension or compression. (Draw the free-body diagrams separately. Reaction forces and moments cannot be shown on the original figure.) 301m 3m 41 mm 500N 500N
Determine the force in members EL and LM of the truss and state if the members...

Determine the force in members EL and LM of the truss and state if the members are in tension or compression. Draw FBD reaction snd moment forces 3@1mx3m B Н 4@1 m=4m к 500N M 500 N W
