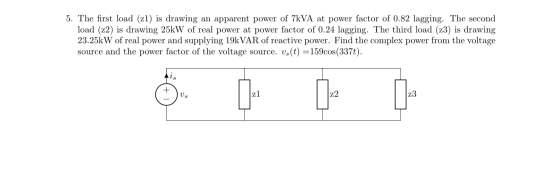

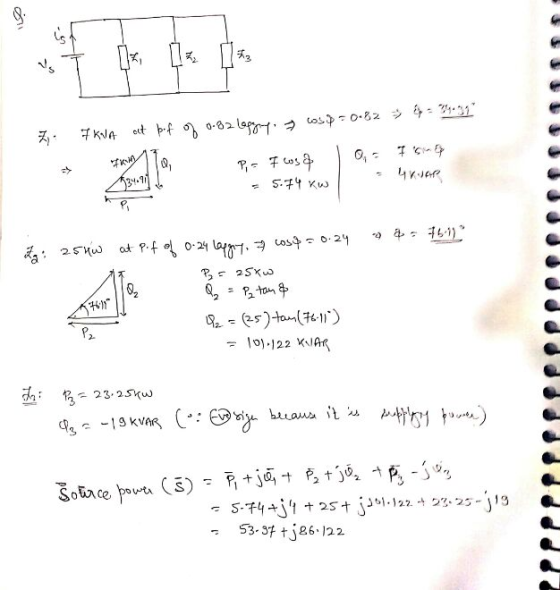

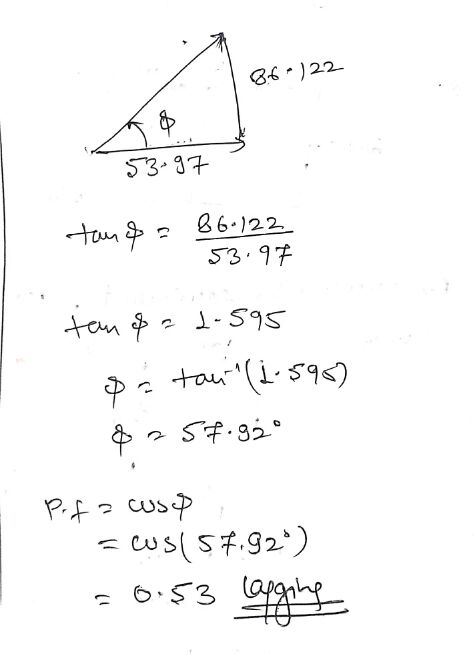

5. The first load (zl) is drawing an apparent power of 7kVA at power factor of...
For the following voltage and current phasors, calculate the complex power, apparent power, real power, and...
For the following voltage and current phasors, calculate the complex power, apparent power, real power, and reactive power. Determine whether the power factor is leading or lagging. V = 260 230 Vrms, I0.5260 Arms The value of apparent power is VA The value of real power is W. VAR. The value of reactive power is The power factor is Click to select B
9. A three phase balanced Y connected source is supplying three, three phase loads that are...
9. A three phase balanced Y connected source is supplying three, three phase loads that are connected in parallel. First load is a y connected and has an impedance of 30+j40 ohms. The second load is absorbing a total of 150kVA at 0.5 power factor lagging. The third load is absorbing 150kVA at 0.5 power factor leading. The line to line source rms voltage is 2500V. i Find the load current in each load i) Find the total real and...
An Inductive load 1 phase pulling power 6 kW on power factor 0.85 lagging and voltage...
An Inductive load 1 phase pulling power 6 kW on power factor 0.85 lagging and voltage 230 V. Find : a) Reactive power and Apparent power consumed by the load b) Load impedance c) Draw the triangle power of the load
P3- A source supplies power to the following three load connected in parallel: (1) a light...
P3- A source supplies power to the following three load connected in parallel: (1) a light load drawing 20 kW, (2) an induction motor drawing 10 KVA at 0.90 power factor lagging, and (3) a synchronous motor operating at 10 hp, 85% efficiency and 0.95 power factor leading (1 hp = 0.746 kW), Determine the real, reactive, and apparent power delivered by the source. Also, draw the source power triangle.
P3- A source supplies power to the following three load connected in parallel: (1) a light...
P3- A source supplies power to the following three load connected in parallel: (1) a light load drawing 20 kW. (2) an induction motor drawing 10 kVA at 0.90 power factor lagging, and (3) a synchronous motor operating at 10 hp, 85% efficiency and 0.95 power factor leading (1 hp = 0.746 kW). Determine the real, reactive, and apparent power delivered by the source. Also, draw the source power triangle.
An impedance of 10+4j is connected to a voltage source supplying 100 < 0 V to...
An impedance of 10+4j is connected to a voltage source supplying 100 < 0 V to the impedance. What is the current supplied to the impedance? What is the power factor of the load? What is the real, reactive, apparent, and complex power consumed by the load?
A 110-V rms,60-Hz source is applied to a load impedance Z The apparent power entering the...
A 110-V rms,60-Hz source is applied to a load impedance Z The apparent power entering the load is 120 VA at a power factor of 0.507 lagging References eBook& Resources Learning Objective: Understand apparent power power and power factor Section Break Difficulty Medium value 10.00 points Calculate the complex The complex power is VA. Hints References eBook & Resources
1. A 480 V (rms) source supplies power to two loads connected in parallel. The first...
1. A 480 V (rms) source supplies power to two loads connected in parallel. The first load draws 80 kW and 30 kVAR. The second load draws 100 kVA at a power factor of 0.6 lagging. a) Draw the power triangle for the first load and determine its power factor; b) Determine the current (both magnitude and phase, using the source voltage as the phase reference) drawn by the first load; c) Draw the power triangle for the second load...
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a cur...
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a current of 10 A at pf- 0.93 (leading), and the second and third loads (each) draw a current of 20 A at pf= 0.85 (lagging). Suppose the line-to-line voltage is 240 V. Compute the following: a) The transmission line current b) The load power factor c) The complex power supplied by the source
Problem 7 Three three-phase wye-connected loads are in parallel...
please answer all parts with steps (15%) A three phase source supplies power to an induction...
please answer all parts with steps
(15%) A three phase source supplies power to an induction motor drawing 10 kW at at 240 V and 0.60 power factor lagging, Find, >(a) The reactive power supplied by the source. (o) The apparent power drawn from the source. (c) The complex power drawn from the source. (d)The magnitude of the source current. If a capacitor is connected in parallel with the load, will the source current magnitude increase or decrease. (e)
For the following voltage and current phasors, calculate the complex power, apparent power, real power, and reactive power. Determine whether the power factor is leading or lagging. V = 260 230 Vrms, I0.5260 Arms The value of apparent power is VA The value of real power is W. VAR. The value of reactive power is The power factor is Click to select B
9. A three phase balanced Y connected source is supplying three, three phase loads that are connected in parallel. First load is a y connected and has an impedance of 30+j40 ohms. The second load is absorbing a total of 150kVA at 0.5 power factor lagging. The third load is absorbing 150kVA at 0.5 power factor leading. The line to line source rms voltage is 2500V. i Find the load current in each load i) Find the total real and...
P3- A source supplies power to the following three load connected in parallel: (1) a light load drawing 20 kW, (2) an induction motor drawing 10 KVA at 0.90 power factor lagging, and (3) a synchronous motor operating at 10 hp, 85% efficiency and 0.95 power factor leading (1 hp = 0.746 kW), Determine the real, reactive, and apparent power delivered by the source. Also, draw the source power triangle.
P3- A source supplies power to the following three load connected in parallel: (1) a light load drawing 20 kW. (2) an induction motor drawing 10 kVA at 0.90 power factor lagging, and (3) a synchronous motor operating at 10 hp, 85% efficiency and 0.95 power factor leading (1 hp = 0.746 kW). Determine the real, reactive, and apparent power delivered by the source. Also, draw the source power triangle.
A 110-V rms,60-Hz source is applied to a load impedance Z The apparent power entering the load is 120 VA at a power factor of 0.507 lagging References eBook& Resources Learning Objective: Understand apparent power power and power factor Section Break Difficulty Medium value 10.00 points Calculate the complex The complex power is VA. Hints References eBook & Resources
1. A 480 V (rms) source supplies power to two loads connected in parallel. The first load draws 80 kW and 30 kVAR. The second load draws 100 kVA at a power factor of 0.6 lagging. a) Draw the power triangle for the first load and determine its power factor; b) Determine the current (both magnitude and phase, using the source voltage as the phase reference) drawn by the first load; c) Draw the power triangle for the second load...
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a current of 10 A at pf- 0.93 (leading), and the second and third loads (each) draw a current of 20 A at pf= 0.85 (lagging). Suppose the line-to-line voltage is 240 V. Compute the following: a) The transmission line current b) The load power factor c) The complex power supplied by the source
Problem 7 Three three-phase wye-connected loads are in parallel...
please answer all parts with steps
(15%) A three phase source supplies power to an induction motor drawing 10 kW at at 240 V and 0.60 power factor lagging, Find, >(a) The reactive power supplied by the source. (o) The apparent power drawn from the source. (c) The complex power drawn from the source. (d)The magnitude of the source current. If a capacitor is connected in parallel with the load, will the source current magnitude increase or decrease. (e)
