An impedance of 10+4j is connected to a voltage source supplying 100 < 0 V to...
An impedance of 10+4j is connected to a voltage source supplying 100 < 0 V to the impedance.

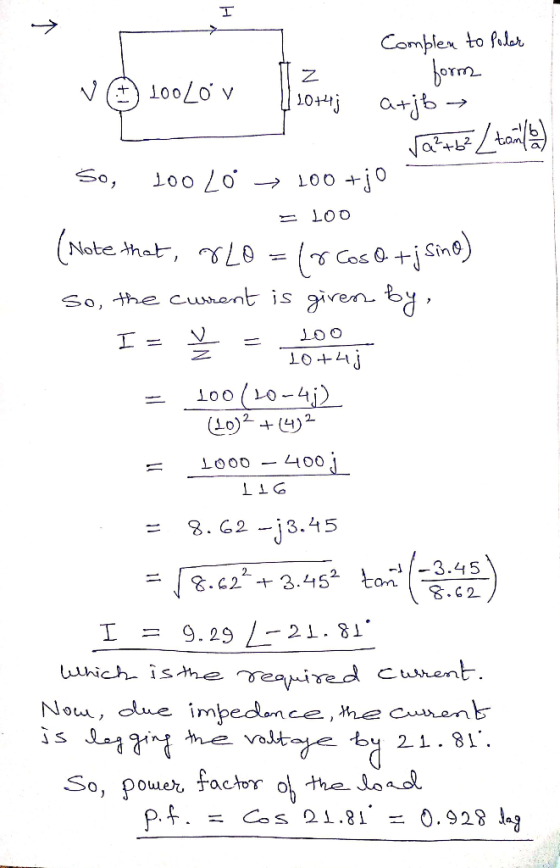

What is the current supplied to the impedance?
What is the power factor of the load?

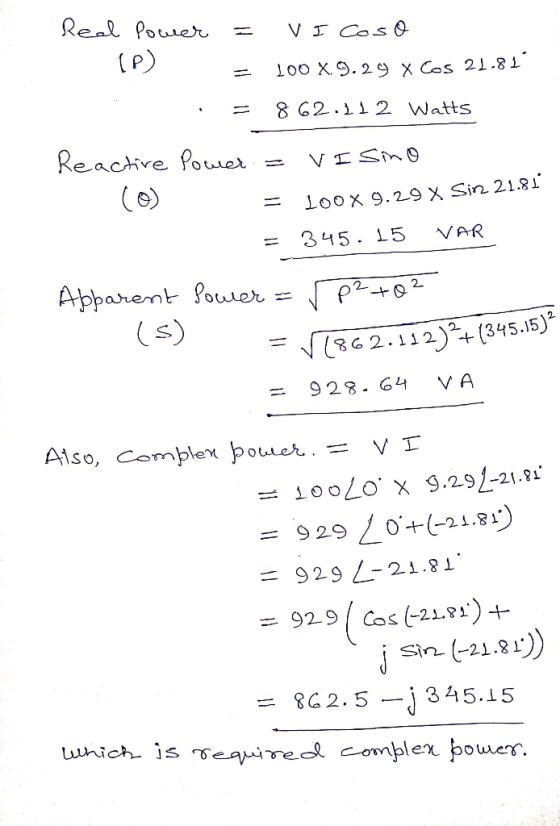

What is the real, reactive, apparent, and complex power consumed by
the load?
Homework Answers
