Please show how this transformers problem is done. Thanks!

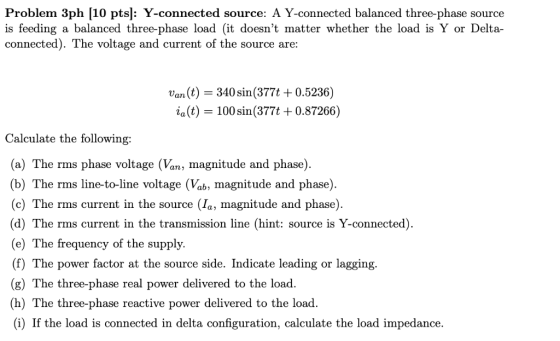

![Problem 3ph [10 pts]: Y-connected source: A Y-connected balanced three-phase source is feeding a balanced three-phase load (i](http://img.homeworklib.com/images/b6c871d5-075b-44af-9490-43883ce7e93b.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
Problem 3ph [10 pts]: Y-connected source: A Y-connected balanced three-phase source is feeding a ...
9. A three phase balanced Y connected source is supplying three, three phase loads that are...
9. A three phase balanced Y connected source is supplying three, three phase loads that are connected in parallel. First load is a y connected and has an impedance of 30+j40 ohms. The second load is absorbing a total of 150kVA at 0.5 power factor lagging. The third load is absorbing 150kVA at 0.5 power factor leading. The line to line source rms voltage is 2500V. i Find the load current in each load i) Find the total real and...
A Δ-connected source supplies power to a Y-connected load in a three-phase balanced system. Given that...
A Δ-connected source supplies power to a Y-connected load in a three-phase balanced system. Given that the line impedance is (1 + j1) Ω per phase while the load impedance is (6 + j4) Ω per phase, find the magnitude of the line voltage at the load. Assume the source phase voltage Vab= 208 ∠0° V rms. The magnitude of the line voltage at the load is _______ Vrms.
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL = 440 V rms....
A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL = 440 V rms. This source is connected to a balanced wye-connected load. Each phase of the load consists of a 0.5-H inductance in series with a 50-Ω resistance. Assume that the phase of Van is zero. home / study / engineering / electrical engineering / electrical engineering questions and answers / A Balanced Positive-sequence Wye-connected 60-Hz Three-phase Source Has Line-to-line Voltages ... Question: A balanced positive-sequence wye-connected...
A balanced three-phase source with a 208 V rms (line-to-line) is delivering power to a balanced...
A balanced three-phase source with a 208 V rms (line-to-line) is delivering power to a balanced Y-connected load with phase impedance Z1 = 4 + j 3 Ohms in parallel with a balanced delta-connected load with phase impedance Z2 = 7.5 + j 6 Ohms. Calculate the active (real) and reactive (imaginary) powers delivered by the source. Draw the power triangle. What is the power factor of the combined load?
508 CHAPTER 11 . POLYPHASE CIRCUITS 11.40 In a balanced three-phase system, the source has an...
508 CHAPTER 11 . POLYPHASE CIRCUITS 11.40 In a balanced three-phase system, the source has an aboc phase-sequence and is connected in delta. There are two rallel wye-connected loads. The phase impedance of load i and load 2 is 4 The line impedance connecting the source to the loads is 0.3 + j0.2 2. If the curre IAN! = 10/20-Arms, find the delta currents in the source 4 Ω and 10 +/4 Ω, respectively. nt in the a phase of...
A three-phase balanced wye connected source with a line voltage of 400v supplies a balanced delta...
A three-phase balanced wye connected source with a line voltage of 400v supplies a balanced delta connected load with the impedance of each phase ?∆ = 60∠450Ω. The impedance of the threephase line connecting the source and the load is ?l = 2∠300Ω/phase. Calculate the line current and phase current magnitudes of the load. Also find real and reactive power at the terminals (abc) of the load and at the terminals (ABC) of the source.
The a-phase voltage of an ideal balanced three-phase Y-connected source is Van-13.2kV<0° and the frequency is...
The a-phase voltage of an ideal balanced three-phase Y-connected source is Van-13.2kV<0° and the frequency is 60Hertz. The source is connected to a A-connected 3-phase balanced load of 100+j750 per phase. The lines are considered perfect. The phase sequence of the source is abc Use the a-phase sequence as a reference. a) Draw the 3-phase circuit b) Give Van, Voor and V, Derive VAB and derive Vec,and VcA c) Calculate lAB and derive Isc and IcA d) Calculate the total...
A balanced Y-connected voltage source with a phase voltage ? = 277∠0°? delivers to a balanced...
A balanced Y-connected voltage source with a phase voltage ? = 277∠0°? delivers to a balanced delta connected load with impedance ?ௗ௧ = 45 − ?18Ω that is in parallel with a Yconnected load with impedance ? = 30 + ?15Ω. (a) Calculate the current at the source (b) Calculate the source real and reactive power
9. A three phase balanced Y connected source is supplying three, three phase loads that are connected in parallel. First load is a y connected and has an impedance of 30+j40 ohms. The second load is absorbing a total of 150kVA at 0.5 power factor lagging. The third load is absorbing 150kVA at 0.5 power factor leading. The line to line source rms voltage is 2500V. i Find the load current in each load i) Find the total real and...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
508 CHAPTER 11 . POLYPHASE CIRCUITS 11.40 In a balanced three-phase system, the source has an aboc phase-sequence and is connected in delta. There are two rallel wye-connected loads. The phase impedance of load i and load 2 is 4 The line impedance connecting the source to the loads is 0.3 + j0.2 2. If the curre IAN! = 10/20-Arms, find the delta currents in the source 4 Ω and 10 +/4 Ω, respectively. nt in the a phase of...
The a-phase voltage of an ideal balanced three-phase Y-connected source is Van-13.2kV<0° and the frequency is 60Hertz. The source is connected to a A-connected 3-phase balanced load of 100+j750 per phase. The lines are considered perfect. The phase sequence of the source is abc Use the a-phase sequence as a reference. a) Draw the 3-phase circuit b) Give Van, Voor and V, Derive VAB and derive Vec,and VcA c) Calculate lAB and derive Isc and IcA d) Calculate the total...
