A Δ-connected source supplies power to a Y-connected load in a three-phase balanced system. Given that...

A Δ-connected source supplies power to a Y-connected load in a three-phase balanced system. Given that the line impedance is (1 + j1) Ω per phase while the load impedance is (6 + j4) Ω per phase, find the magnitude of the line voltage at the load. Assume the source phase voltage Vab= 208 ∠0° V rms.

The magnitude of the line voltage at the load is _______ Vrms.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

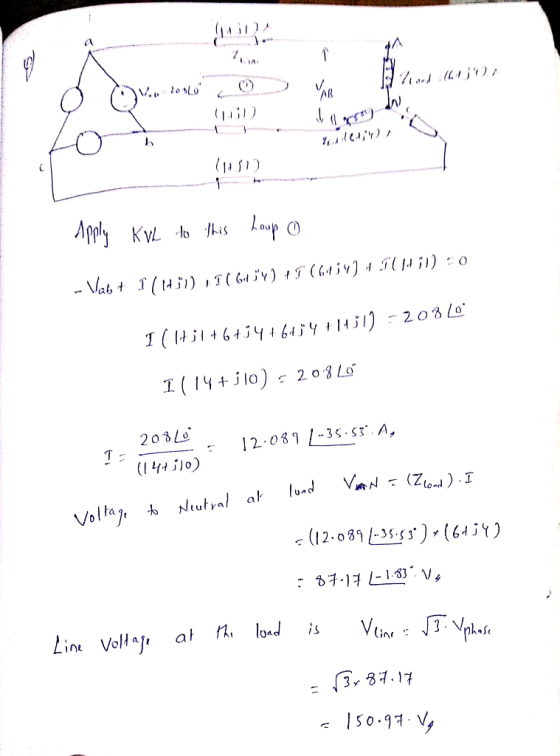

Answer #1

0 0
