2. Find the steady-state temperature u(r,0) in a semicircular plate of radius r 2 if [10<0<...

Question

Question

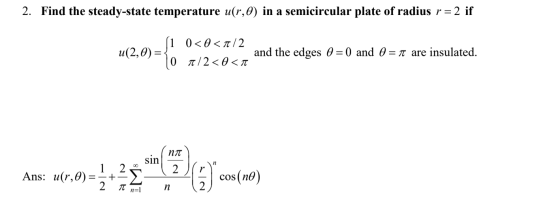

2. Find the steady-state temperature u(r,0) in a semicircular plate of radius r 2 if [10<0< π/2 u(2,0) and the edges 0 = 0 an

math Advanced-Math

Answer 1

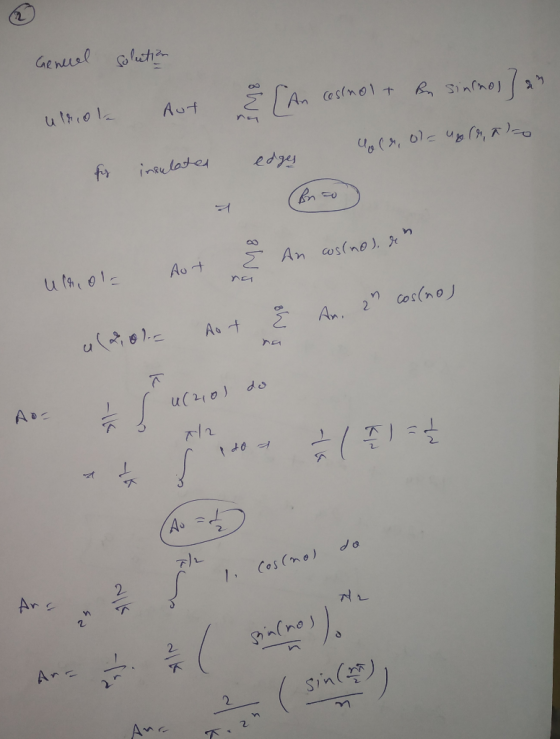

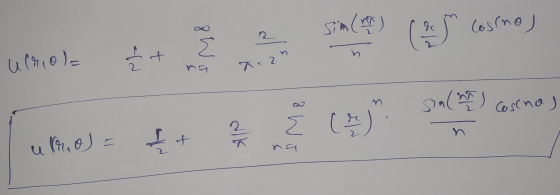

Answer #1

Doubt in this then comment below.. i will explain you..

.

please thumbs up for this solution...thanks..

.

Answer 2
