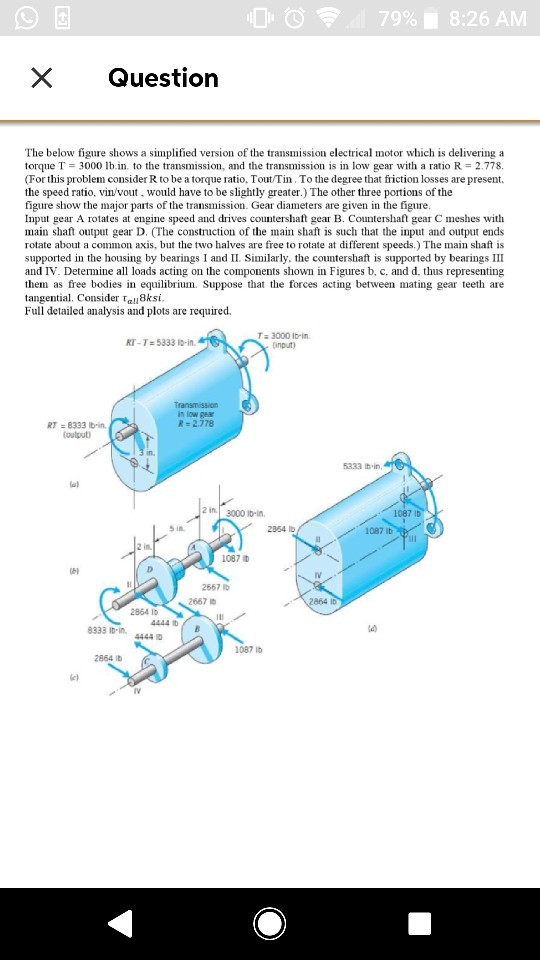

Consider the simplified transmision sample problem shown in Figure 1 below. In this figure, mating gears were shown to only exert tangential forces on each other. In reality, mating spur gear teeth will exert both tangential forces and radial forces2 due to the involute profile shape of the teeth (see Chapter 15, Figure 15.7). Let the diameters of gears B and D be 4.25 in while the diameters of gears A and C be 2.25 in. All other dimensions and...
Homework 6: The figure below shows a gear train where gear 1, on shaft a (input shaft), drives gear 2 with 32 teeth (denoted 32T) on shaft b, gear 3 (20T) also is on shaft b and drives gear 4 (507) on shaft c (output shaft). The pitch diameter of gears 1 and 2 are d = 24 mm and d = 48 mm. The center distance between gears 3 and 4 (distance between shafts b and c is 70mm....
Question 1 In the epicyclic gear shown in Figure Q1 the Annulus A1 and the Sun wheel S2 are compound, the Sun wheel Si rotates with the input shaft and both Planet cages rotate with the output shaft. The numbers of teeth on the o wheels are Si=24, A1=72, Sz=40 and A2=80. (1) Find the gear ratio of the system when the Annulus A1 is held fixed. S Find the gear ratio of the system when the Figure Q1 Annulus...
Figure below shows the load components acting on a helical gear
mounted on a simply
supported shaft. Bearing B takes thrust. A flexible coupling for
transmitting
torque attaches to the right end of the shaft. The left end is
free.
1-Draw load, shear force, and bending moment diagrams for the
shaft, in both the horizontal and vertical planes.
2- Identify the most critically loaded shaft cross section, and
for this location determine the diameter theoretically required for
infinite life. Assume...
please don't copy and paste from previous answer
Figure 4 shows a six-element planetary transmission, where spur gears 1 and 2 have an mi module, spur gears 3 and 5 have an m2 module, and spur gears 4 and 6 have an mj module. a. Write the train output velocity (Op) formula as a function of the angular velocity of shafts A, B and C, and tooth numbers Ni to No b. Establish the angular velocity of the output shaft...
Q 1- 08 Pts) Figure below is a diagram of a DC motor connected in parnllel to a current source i,. The torque and back-EMF constants of the motor are Ko K respectively, the motor resistance is R, also modeled as connected in parallel, the motor inertia is 1- (not shown), and the motor inductance is negligible. The motor load is an inertia J with compliance (stiffness) K and viscous friction coefficient b, and it is attached a gear pair...
01- (08 Pts) Figure below is a diagram of a DC motor connected in parallel to a current source is the torque and back-EMF constants of the motor are K. K respectively, the motor resistance is R, also modeled as connected in parallel, the motor inertia is I. (not shown), and the motor inductance is negligible. The motor load is an inertia compliance (stiffness) K and viscous friction coefficient b, and it is attached to the motor via a gear...
A transfer shaft with two spur gears shown below: Input Gear 1 Output Gear Torque Bearing 1 Gear 1 Gear 2 Bearing 2 B OTO 4" 4" 4" 4 . . Weight Ibf Teeth number Pressure angle Po (diametric pitch) teeth/in Gear A 50 20° 6 Gear C 2 25 20° 6 Deep groove ball bearings at B and D. Pitch diameter of the gear is equal to the teeth number divided by diametric pitch. Shaft speed = 3000 rpm....
power = 3 kW
