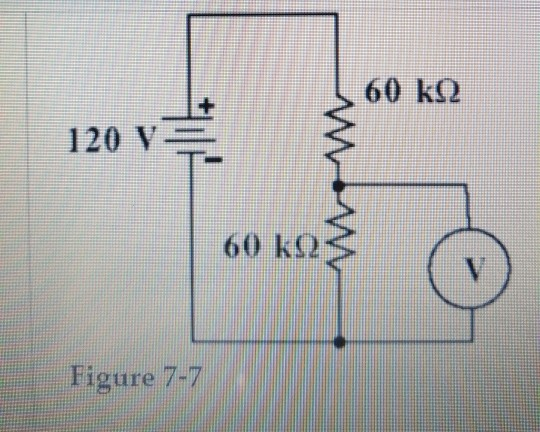

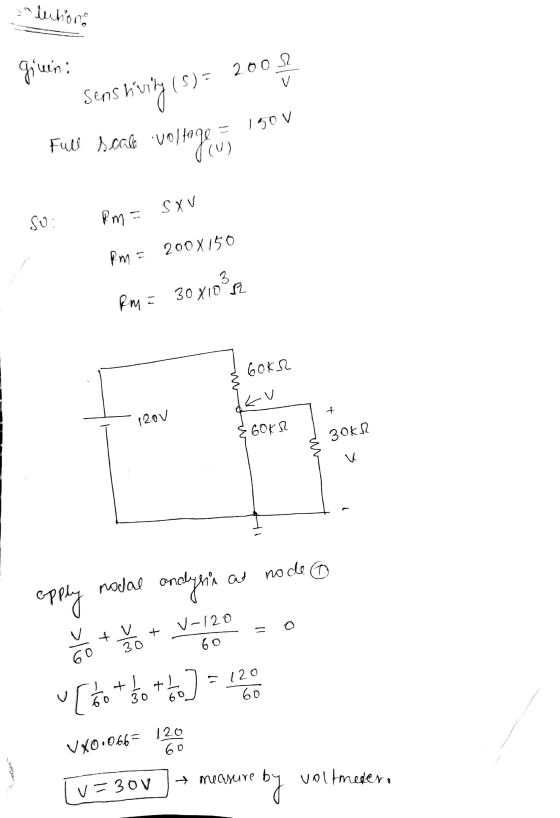

A voltmeter wit an ohm per volt rating of 200 ohm/Volt is conected as shown in figure 7-7. It is set on the 150 volt range. what voltage will the meter indicate?


A voltmeter wit an ohm per volt rating of 200 ohm/Volt is conected as shown in...
In the circuit shown in the following figure, the voltage across the R1 = 5.50 Ohm resistor is 27.0 V. what are the emf of the battery and the current through the 6.00-Ohm resistor? (Let R2 = 1.00 Ohm) Epsilon = _____ V I = __________ A A capacitor is charged to a potential of 13.0 V and is connected to a voltmeter having an internal resistance of 3.45 Mohm. After a time of 3.50 s the voltmeter reads 3.0...
2.5 Loading effects. The ratings of a piezoelectric sensor indicate that at a certain stimulus the sensor provides an output of 150 V at no load. The short-circuit current of the sensor is measured and found to be 10 micro(A) (this is done by shorting the output through a current meter). To measure the output voltage of the sensor, a voltmeter with an internal impedance of 10 Mega(ohm) is connected across the sensor. a. Calculate the actual reading of the...
Problem 3.49 6 of 13 A Review Constants A 200 kn resistor is connected from the 100 V terminal to the common terminal of a dual-soal voltmeter, as shown in Figure 1). This modified Voltmeter is then used to measure the voltage across the 600 kronistor in the circuit in (Figure 2) Part A What is the reading on the 820 V scale of the meter? Assume that both scales of the given dual scale voltmeter were recalibrated when the...
6. (5 points) A 12 Volt battery with a 3 Ohm internal resistance is connected to a circuit as shown below. W a.) What percent of the power being expended by the battery is dissipated over the 24 resistor (.e. being used by the 24 resistor)? (note that you are going to 242 have to figure out several things along the way to arrive at the answer) 422 w 512 WW 1222 12V b.) If you measure the voltage between...
Please solve using MatLab program. Thanks, I will give good
rating!
Problem 4: The equations describing the circuit shown in Figure P38 are -1+Ri+Ri4 = 0 -Rai4Rzi2+Riz = 0 -Ris+Rsis + v2 = 0 ii+i i2i+ is The given values of the resistances and the voltage v, are R, 5, R 100, R that 1 k 1000 ) Suppose that each resistance is rated to carry a current of no more than 1 mA ( 0.001 A). Determine the allowable...
Calculate vo(t) in the circuit shown in the figure below if i(t) is 200 cos(105t+ 60°) mA, i2(t) is 100 sin(105t90°) mA, and vst) 10 sin(105t) v uci) + 250 nF o(r) 52 Ohm
Calculate vo(t) in the circuit shown in the figure below if i(t) is 200 cos(105t+ 60°) mA, i2(t) is 100 sin(105t90°) mA, and vst) 10 sin(105t) v uci) + 250 nF o(r) 52 Ohm
HELP PLEASE?? THANK YOU ;))
Question 16 (5 points) In the circuit shown in the figure, the 60-Hz ac source has a rms voltage amplitude of 120 V, the capacitive reactance is 600 the inductive reactance is 150 and the resistance is 4502 a) What is the inductance L of the inductor? (2 pts) b) What is the capacitance C of the capacitor? (2 pts) c) What is the impedance of the circuit? (1 pts) 60 H 200- L
Determins the power dissipated by the 4-ohm resistor in the right
hand circuit using algebra. Show the following calculations.
4. Take a Screenshot of the full circuit board showing all four circuits and save it as "DC Circuit_2.pog". Print it out and submit it with your lab report. 5. Determine the power dissipated by the 4-2 resistor in the left-hand circuit by adding either an ammeter or a voltmeter to the circuit. Use the reading from that meter in calculating...
QUESTION 20 Consider the x-ray tube rating chart shown below. For an examination at 130 kVp and 300 mA, what is the longest exposure time that would be considered safe? 60 Hz 1 mm FOCAL SPOT 15° TARGET ANGLE Joe 200 m 150 mg A TUBE VOLTAGE (kVp) 750 mA 300 mA 400 mA Sama so0 MA LRC-2042 .001.002.003.005 .01 2 3 4 5 7 10 15 20 30 .02 .03 .05.07.1 2 3 .5.71 SECONDS
The magnetization curve for a separately excited de generator is shown in Figure P8-7. The generator is rated at 6 kW, 120 V, 50 A, and 1800 r/min and is shown in Figure P8-8. Its field circuit is rated at 5A. The following data are known about the machine: R, -0.189 1,-120 V R-0400 R - 200 N, -1000 tums per pole Answer the following questions about this generator, assuming no armature reaction. (a) If this generator is operating at...
