Homework Answers
Add Answer to:
Find the sheer force diagram and the bending moment
diagram?

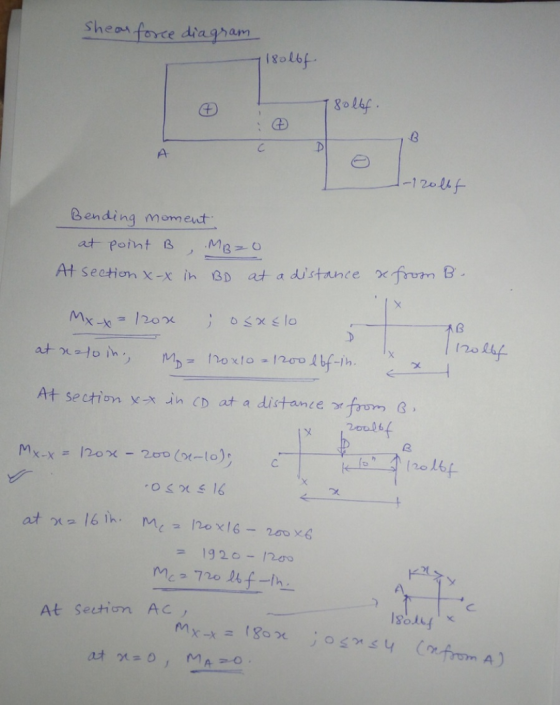

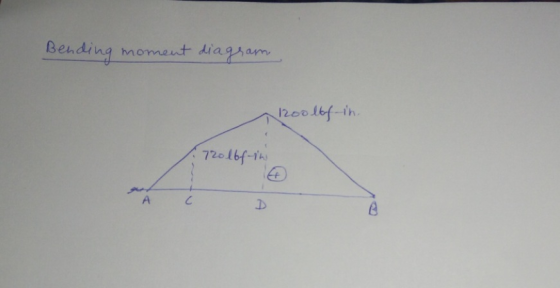

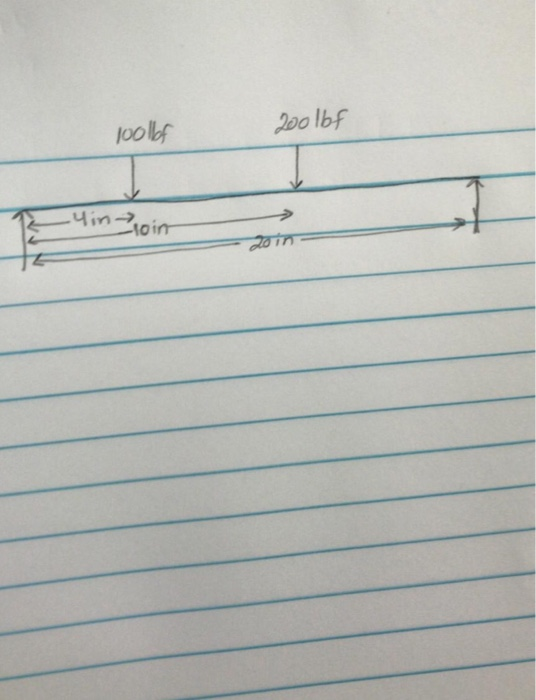

1004 20o lbf
For the diagram below find the shear force and bending moment at various points anddraw the bending moment and shear force diagram. Show all the calculations performed for finding various parameters....
For the diagram below find the shear force and bending moment at
various points anddraw the bending moment and shear force diagram.
Show all the calculations performed for finding various
parameters.
UDL 14kN/m 60 KN R, R, 5m 20m
UDL 14kN/m 60 KN R, R, 5m 20m
draw the shear and bending moment diagrams. determine the maxium absolute values of the sheer bending...
draw the shear and bending moment diagrams. determine the maxium absolute values of the sheer bending moment. 20 kN/m С M=12 kN.m A B -2 m 2 m
For the following diagram, draw the shear and bending moment diagrams for the beam. Include the shear force and bending moment equations.
For the following diagram, draw the shear and bending moment diagrams for the beam. Include the shear force and bending moment equations.
Determine the reactions and draw the shear force and bending moment diagrams (SFD & BMD). Find...
Determine the reactions and draw the shear force and bending
moment diagrams (SFD & BMD). Find the maximum shear force and
bending moment along the horizontal portion of the beam amd
calculate the maximum traverse shear stress amd maximum normal
stress. Draw the normal and shear stress distributions along the
cross section.
Fy
= 760 lbs
Fx = 830 lbs
ト·25%) Decet reoconsand drd he Shes fore ond beg men Sheer Shes, ds+rivntions alonShe cross sec on Sho Stress Hress
Plot the shear force diagram for this beam. Plot the bending moment diagram for the beam.
Problem:!!!! Plot the shear force diagram for this beam.Plot the bending moment diagram for the beam.
need help finding , reactions ,shear force and bending moment diagram .please show steps RA Find...
need help finding , reactions ,shear force and bending
moment diagram .please show steps
RA Find Ther oreBendlins Monant D
Find the moment diagrams and sharp forces of the sheer. A) cutting equations B) Cutting Diagram C...
Find the moment diagrams and sharp forces of the
sheer.
A) cutting equations
B) Cutting Diagram
C) Moments Diagram
Next Problem:
Find cutting diagrams and flexing moment of the sheer,
as well as identifying its maximum and minimum values.
0.8 kN/m Im 3 m 20 kips 12 kips 1.5 kips/ft 6 ft
0.8 kN/m Im 3 m
20 kips 12 kips 1.5 kips/ft 6 ft
shear force and bending moment diagram
please use moment distribution method to solve the question.Detailed calculations for the shear force and bending moment is needed with the diagrams.
shear force and bending moment diagram
Draw the shear force and bending moment diagrams of the beam above.
For the diagram below find the shear force and bending moment at
various points anddraw the bending moment and shear force diagram.
Show all the calculations performed for finding various
parameters.
UDL 14kN/m 60 KN R, R, 5m 20m
UDL 14kN/m 60 KN R, R, 5m 20m
draw the shear and bending moment diagrams. determine the maxium absolute values of the sheer bending moment. 20 kN/m С M=12 kN.m A B -2 m 2 m
Determine the reactions and draw the shear force and bending
moment diagrams (SFD & BMD). Find the maximum shear force and
bending moment along the horizontal portion of the beam amd
calculate the maximum traverse shear stress amd maximum normal
stress. Draw the normal and shear stress distributions along the
cross section.
Fy
= 760 lbs
Fx = 830 lbs
ト·25%) Decet reoconsand drd he Shes fore ond beg men Sheer Shes, ds+rivntions alonShe cross sec on Sho Stress Hress
need help finding , reactions ,shear force and bending
moment diagram .please show steps
RA Find Ther oreBendlins Monant D
Find the moment diagrams and sharp forces of the
sheer.
A) cutting equations
B) Cutting Diagram
C) Moments Diagram
Next Problem:
Find cutting diagrams and flexing moment of the sheer,
as well as identifying its maximum and minimum values.
0.8 kN/m Im 3 m 20 kips 12 kips 1.5 kips/ft 6 ft
0.8 kN/m Im 3 m
20 kips 12 kips 1.5 kips/ft 6 ft
