Question

Description There is a method used to create plants for computer graphics that is known as L-Systems. In a L-System you have rules and parameters that control the "growth" of the plant. Background L-Systems were developed by Astrid Lindenmayer to help describe plant growth. It is based on grammars. A grammar consists of a set of rules. The left hand side of a rule is always a nonterminal or variable symbol that can be expanded to whatever is on the right hand side of the rule. For instance: variables F constants + start symbol F rule: F- F+F-F-F+F angle: 90 degrees At the start you have the start symbol, in this case F. The only rule (or production) in this case expands a single F into F+F-F-F+F. If we were to expand this a second time we would take each of the F's and apply the rule to them. The resulting string would be F+F-F-F+F +F+F-F-F+F - F+F-F-F+F - F+F-F-F+F +F+F-F-F+F As you might expect, if we keep expanding the string will ge longer and longer. In order to draw a plant or curve for computer graphics from this string we need to assign roles for the symbols in the string. In this case, F draws forward a unit, +turns counterclockwise by the given angle (90 degrees), and -turns clockwise by the given angle (90 degrees) Your Program In your program you will take a set of rules and apply it a given number of times. At the end you will draw the resulting string using basic rules. We will need to add two more terminal symbols or constants to our language to allow for more interesting shapes. One is the symbol. When you reach the [ symbol you will need to save the current state of the system (on a stack). This means that you will need to save the current position and the current direction that you are going. The other symbol is the 1 symbol and that will allow you to retrieve the last state from the stack. This allows you to return to a previous position before continuing At the end, you should draw your string to a window using Java's graphics objects

Growing Plant program following guidelines

Drawing Canvas Code:

import java.awt.Canvas;
import java.awt.*;
import java.awt.geom.*;

/**
 *
 */

/**
 */
public class DrawingCanvas extends Canvas {
        protected String drawString;
        protected double angleIncrement;


        DrawingCanvas() {
                this.setPreferredSize(new Dimension(400, 400));
        }

        public void setDrawString(String s) {
                drawString = s;
        }

        public void setAngleIncrement(double d) {
                angleIncrement = Math.PI * d/ 180.0;
        }
        /**
         * Paint routine for our canvas.  The upper Left hand corner
         * is 0, 0 and the lower right hand corner is 399, 399.
         *
         * Our initial Position can be either 200, 0 (probably easier)
         * or 200, 399 (need to draw in the "negative" direction).
         *
         * We will also talk about how to scale this and modify it.
         *
         */
        public void paint (Graphics g) {
                Graphics2D g2 = (Graphics2D)g;
                int currentPositionX, currentPositionY, position;
                double currentAngle;

                currentPositionX = 200;
                currentPositionY = 200;
                currentAngle = 0.0;

                for (position = 0; position < drawString.length(); position++) {
                        if (drawString.charAt(position) == 'F') { // Draw 5 units along current direction
                                Line2D line = new Line2D.Double(currentPositionX, currentPositionY,
                                                                                                currentPositionX + 5.0 * Math.sin(currentAngle),
                                                                                                currentPositionY + 5.0 * Math.cos(currentAngle));
                                g2.draw(line);
                                currentPositionX = (int) (currentPositionX + 5.0 * Math.sin(currentAngle));
                                currentPositionY = (int) (currentPositionY + 5.0 * Math.cos(currentAngle));
                        } else if (drawString.charAt(position) == '-') {
                                currentAngle -= angleIncrement;
                        } else if (drawString.charAt(position) == '+') {
                                currentAngle += angleIncrement;
                        } else if (drawString.charAt(position) == '[') {

                        } else if (drawString.charAt(position) == ']') {

                        }
                }
        }
        Completed GUI:

import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.*;
import javax.swing.*;
import javax.swing.border.Border;
import javax.swing.border.EtchedBorder;

/**
 *
 */

/**
 * The GUI for Project 2 as we developed it in
 * class.  You may alter this code for use with Project 2.
 *
 *
 */
public class Project2GUI extends JFrame implements ActionListener {

        protected JTextField lhs[], rhs[], angle, startSymbol;
        protected JButton drawButton;
        protected JSpinner iterationSpinner;
        protected JLabel ruleLabels[], angleLabel, startLabel, spinnerLabel;
        protected String rhsValue[], lhsValue[];
        protected DrawingCanvas myCanvas;

        public Project2GUI () {
                rhsValue = new String[5];
                lhsValue = new String[5];

                this.setDefaultCloseOperation(EXIT_ON_CLOSE);
                this.add(buildGUI());
                this.pack();
                this.setVisible(true);
        }

        /**
         * buildGUI builds the graphics components that make up
         * our GUI for Project 2.  It returns a panel that contains
         * all of the components.  It also hooks up the Draw Button
         * with this object as an actionListener.
         *
         * @return  JPanel with the GUI.
         */
        private JPanel buildGUI() {
                JPanel ourGUI = new JPanel();
                GridBagConstraints gbc = new GridBagConstraints();

                ourGUI.setLayout(new GridBagLayout());
                /*
                 * Allocate the widgets and add them to the GUI.  I've
                 * changed this to use a gridBagLayout to allow us a better
                 * way to arrange the GUI.
                 *
                 * The routine is too long.  It should be shortened
                 * and simplified.  We will do this to it in class.
                 */


                buildAngle(ourGUI, gbc);
                buildStartSymbol(ourGUI, gbc);
                drawButton = new JButton ("Draw");
                drawButton.addActionListener(this);
                gbc.gridx = 0;          gbc.gridy = 9;
                gbc.gridwidth = 10; gbc.anchor = GridBagConstraints.CENTER;
                ourGUI.add(drawButton, gbc);


                buildSpinner(ourGUI, gbc);


                lhs = new JTextField[5];
                rhs = new JTextField[5];
                ruleLabels = new JLabel[5];

                for (int i = 0; i < 5; i++) {
                        buildRules(ourGUI, gbc, i);
                }
                JLabel title = new JLabel ("L-System Project");
                title.setSize(20, 200);
                gbc.gridx = 0;          gbc.gridy = 0;
                gbc.gridwidth = 10;             gbc.gridheight = 1;
                gbc.anchor = GridBagConstraints.CENTER;
                ourGUI.add(title, gbc);
                myCanvas = new DrawingCanvas();
                myCanvas.setAngleIncrement(90.0);
                myCanvas.setDrawString("F+F-F-F+F+F+F-F-F+F-F+F-F-F+F-F+F-F-F+F+F+F-F-F+F");
//              myCanvas.setDrawString("F+F-F-F+F+F+F-F-F+F-F+F-F-F+F-F+F-F-F+F+F+F-F-F+F+F+F-F-F+F+F+F-F-F+F-F+F-F-F+F-F+F-F-F+F+F+F-F-F+F-F+F-F-F+F+F+F-F-F+F-F+F-F-F+F-F+F-F-F+F+F+F-F-F+F-F+F-F-F+F+F+F-F-F+F-F+F-F-F+F-F+F-F-F+F+F+F-F-F+F+F+F-F-F+F+F+F-F-F+F-F+F-F-F+F-F+F-F-F+F+F+F-F-F+F");
                gbc.gridx = 0; gbc.gridy = 10;
                gbc.gridwidth = 10; gbc.gridheight = 10;
                ourGUI.add(myCanvas, gbc);
                return ourGUI;
        }

        /**
         *
         * The label and textfield for the start symbol
         * @param ourGUI  The panel to which the items are to be added.
         * @param gbc     The GridBagConstraint for this item -- should be removed -- local.
         */
        private void buildStartSymbol(JPanel ourGUI, GridBagConstraints gbc) {
                startLabel = new JLabel ("Start Symbol: ");
                startSymbol = new JTextField(2);
                gbc.gridx = 8;          gbc.gridy = 4;
                ourGUI.add(startLabel, gbc);
                gbc.gridx = 9;
                gbc.fill = GridBagConstraints.HORIZONTAL;
                ourGUI.add(startSymbol, gbc);
                gbc.fill = GridBagConstraints.NONE;
        }

        /**
         *
         * Build the label and text field for the angle input.
         * @param ourGUI  The panel that the items are to be added to.
         * @param gbc     The GridBagConstraint for this item -- should be removed -- local.
         */
        private void buildAngle(JPanel ourGUI, GridBagConstraints gbc) {
                angleLabel = new JLabel ("Angle: ");
                angle = new JTextField (4);             gbc.gridx = 8;          gbc.gridy = 2;
                gbc.gridheight = 1;             gbc.gridwidth = 1;
                ourGUI.add(angleLabel, gbc);
                gbc.gridx = 9;
                gbc.fill = GridBagConstraints.HORIZONTAL;
                ourGUI.add(angle, gbc);
                gbc.fill = GridBagConstraints.NONE;
        }

        /**
         *
         * Build the spinner that controls the number of times the Productions get
         * expanded.  Add it to the given JPanel.
         * @param ourGUI  The panel that the Spinner is to be added to.
         * @param gbc     The gridBagConstraint for this item -- should be removed -- local.
         */
        private void buildSpinner(JPanel ourGUI, GridBagConstraints gbc) {
                spinnerLabel = new JLabel("Number of Iterations: ");
                gbc.gridx = 8;          gbc.gridy = 6;          gbc.gridwidth = 1;
                ourGUI.add(spinnerLabel, gbc);
                iterationSpinner = new JSpinner(new SpinnerNumberModel(1, 1, 20, 1));
                gbc.gridx = 9;          gbc.gridy = 6;          gbc.gridwidth = 1;
                gbc.fill = GridBagConstraints.HORIZONTAL;
                ourGUI.add(iterationSpinner, gbc);
                gbc.fill = GridBagConstraints.NONE;
        }

        /**
         * Build the fields for the rules into the JPanel given.
         * @param ourGUI  The panel that the rules are to be added to...
         * @param gbc     The gridBagConstraint for this panel -- should be removed.
         * @param i               The number of the rule that we are adding.
         */
        private void buildRules(JPanel ourGUI, GridBagConstraints gbc, int i) {
                ruleLabels[i] = new JLabel("Rule "+i+" : ");
                gbc.gridx = 1;                  gbc.gridy = i+2;                        gbc.gridheight = 1;                     gbc.gridwidth = 1;
                ourGUI.add(ruleLabels[i], gbc);
                gbc.gridx = 2;
                lhs[i] = new JTextField(2);
                ourGUI.add(lhs[i], gbc);
                gbc.gridwidth = 5;                      gbc.gridx = 3;
                rhs[i] = new JTextField(10);
                ourGUI.add(rhs[i], gbc);
        }

        /**
         * grab actions and react to them....  This will be
         * used to detect the press of the draw button and
         * gather the information from the different fields.
         *
         * I've added code to pop up dialogs for various problems that
         * may occur with the data.  The tests on the data are not
         * complete.  They handle a number of simple errors.
         *
         */
        public void actionPerformed(ActionEvent event) {
                if (event.getSource() == drawButton) {
                        /*
                         * Right now we will print out the state of
                         * all the input fields...
                         */
                        for (int i = 0; i < 5; i++) {
                                System.out.println("Rule "+i+": " + lhs[i].getText() +
                                                " -> " + rhs[i].getText());
                                rhsValue[i] = rhs[i].getText().trim().toUpperCase();
                                lhsValue[i] = lhs[i].getText().trim().toUpperCase();
                        }
                        System.out.println("Start Symbol = " + startSymbol.getText());
                        String ourStartSymbol = startSymbol.getText();
                        ourStartSymbol.trim();
                        if (ourStartSymbol.length() > 1) {
                                JOptionPane.showMessageDialog(this,
                                    "Start Symbol must be a single character!  Multiple characters found.",
                                    "Start Symbol Error",
                                    JOptionPane.ERROR_MESSAGE);
                        } else if (ourStartSymbol.length() == 0) {
                                JOptionPane.showMessageDialog(this,
                                            "You must have a start symbol!  No start symbol found.",
                                            "Start Symbol Error",
                                            JOptionPane.ERROR_MESSAGE);

                        }

                        System.out.println("Angle = " + angle.getText());
                        try  {
                        float angleValue = Float.parseFloat(angle.getText());
                        myCanvas.setAngleIncrement(angleValue);
                        } catch (NumberFormatException e) {  // bad angle -- should notify user and try again...
                                JOptionPane.showMessageDialog(this,
                                            "Angle must be a valid floating point number.  Try again.",
                                            "Angle Error",
                                            JOptionPane.ERROR_MESSAGE);

                        }
                        myCanvas.setDrawString("F+F-F-F+F+F+F-F-F+F-F+F-F-F+F-F+F-F-F+F+F+F-F-F+F+F+F-F-F+F+F+F-F-F+F-F+F-F-F+F-F+F-F-F+F+F+F-F-F+F-F+F-F-F+F+F+F-F-F+F-F+F-F-F+F-F+F-F-F+F+F+F-F-F+F-F+F-F-F+F+F+F-F-F+F-F+F-F-F+F-F+F-F-F+F+F+F-F-F+F+F+F-F-F+F+F+F-F-F+F-F+F-F-F+F-F+F-F-F+F+F+F-F-F+F");
                        System.out.println("Number of iterations = " + iterationSpinner.getValue());
                        myCanvas.repaint();
                }
        }

        public static void main(String[] args) {
                Project2GUI project2 = new Project2GUI();

        }



}

Answer 1

package lsystem;

import java.util.HashMap;
import java.util.LinkedList;
import java.util.Queue;
import java.util.Scanner;

import ch.aplu.turtle.Turtle; //get "https://sourceforge.net/projects/jturtle/" and add to build path

public class LsysGenerate {

public static void main(String[] args) {

HashMap<String , String> rules = new HashMap<>();
rules.put("+", "+");
rules.put("-", "-");

rules.put("f", "f");
int noRules;
String axiom;

Scanner sc = new Scanner(System.in);

System.out.println("Enter the starting symbol/ axiom");
axiom = sc.nextLine();
System.out.println("Enter no of rules");
noRules=sc.nextInt();
sc.nextLine();

System.out.println("Enter rules of format <symbol>=<Expansion> (no spaces, only non caps,allowed specials{[,],-,+)}");
for(int i=0;i<noRules;i++)
{
String temp = sc.nextLine();
String[] arr=temp.split("=");
rules.put(arr[0], arr[1]);
}

System.out.println("Enter no of iterations..");
int iter = sc.nextInt();
sc.nextLine();

Queue<String> q = new LinkedList<>();

System.out.println(axiom+" "+noRules+" "+iter);

for(int i=0;i<iter;i++)
{
StringBuffer next = new StringBuffer();

for(int j=0;j< axiom.length();j++)
{
if(axiom.charAt(j)=='[') {
q.add(next.toString());
}else if(axiom.charAt(j)==']') {
String top = q.element();
q.remove(top);
next.append(top);
}else {
next.append(rules.get(""+axiom.charAt(j)));
}
}

axiom = next.toString();
}

System.out.println("This is the expanded string representation\n"+axiom);

//logic to draw from string commands
//You can change the origin of turtle and customize step size

//default angle is taken as 90 degrees you can customize it from input

//reduce step size to view bigger "plants" inside window
double step = 10; double angle =90;

Turtle turtle = new Turtle();

for(int i=0;i<axiom.length();i++) {
if(axiom.charAt(i)=='+') {
turtle.left(angle);
continue;
}
if(axiom.charAt(i)=='-') {
turtle.right(angle);
continue;
}
turtle.forward(step); //will take a step forward for every symbol except (+,-)
}

}
}

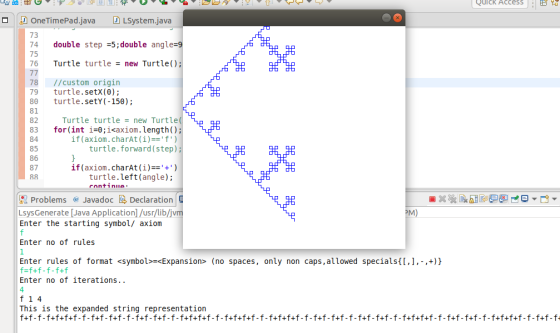

Here is a screenshot of result. Using single variable and single rule.
