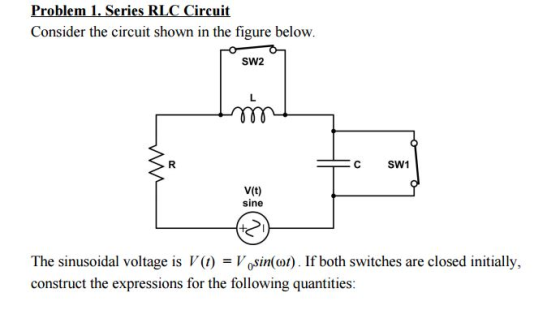

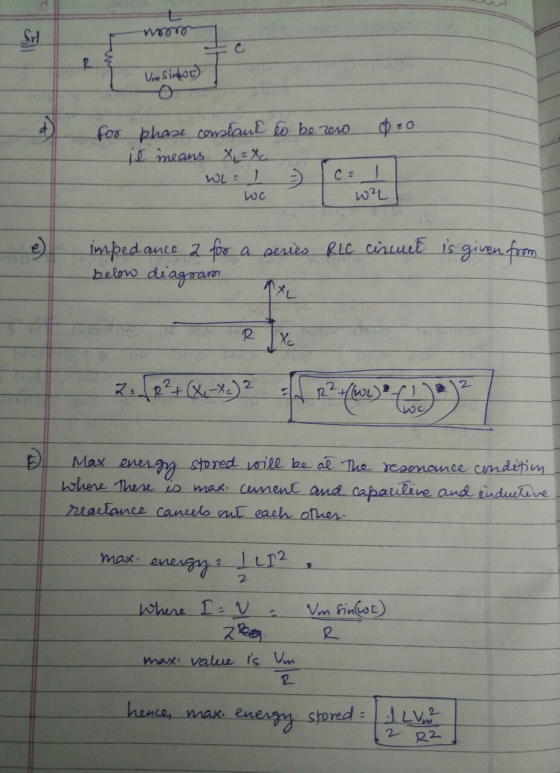

d) The capacitance C, in terms of the angular frequency ? and inductance L, if both...
d) The capacitance C, in terms of the angular frequency ? and inductance L, if both SW1 and SW2 have been open for a long time and the voltage and current are in phase (i.e. phase constant = 0).
e) The impedance, Z, of the circuit when both switches are open.
f) The maximum energy stored in the inductor during oscillations.
Homework Answers
Add Answer to:
d) The capacitance C, in terms of the angular frequency ? and
inductance L, if both...
An L-C circuit has an inductance of 0.440 H and a capacitance of 0.220 nF ....
An L-C circuit has an inductance of 0.440 H and a capacitance of 0.220 nF . During the current oscillations, the maximum current in the inductor is 1.00 A . Part A: What is the maximum energy Emax stored in the capacitor at any time during the current oscillations? Express your answer in joules. Part B: How many times per second does the capacitor contain the amount of energy found in part A? Express your answer in times per second.
An L-C circuit has an inductance of 0.350 HH and a capacitance of 0.290 nF ....
An L-C circuit has an inductance of 0.350 HH and a capacitance of 0.290 nF . During the current oscillations, the maximum current in the inductor is 2.00 A . Part A What is the maximum energy EmaxEmaxE_max stored in the capacitor at any time during the current oscillations? Express your answer in joules. View Available Hint(s) EmaxEmaxE_max = nothing JJ Submit Part B How many times per second does the capacitor contain the amount of energy found in part...
An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor...
An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor with a capacitance of 250 μF . The initial charge on the capacitor is 5.50 μC , and the initial current in the inductor is zero. a) What is the maximum voltage across the capacitor? b) What is the maximum current in the inductor? c) What is the maximum energy stored in the inductor? d) When the current in the inductor has half its...
Define the impedance Z in terms of V and I A two-terminal network contains an inductance L and a capacitance C connecte...
Define the impedance Z in terms of V and I A two-terminal network contains an inductance L and a capacitance C connected in parallel. Calculate the impedance of this network if - Vo exp(iwt) Determine the frequency which minimises the magnitude of the current flowing through the two-terminal network from part (ii).
Define the impedance Z in terms of V and I A two-terminal network contains an inductance L and a capacitance C connected in parallel. Calculate the impedance of...
A capacitance C and an inductance L are operated at the same angular frequency. Part B:...
A capacitance C and an inductance L are operated at the same angular frequency. Part B: If L = 4.80 mH and C = 4.00 μF , what is the numerical value of the angular frequency in part A? Part C: What is the reactance of each element?
For part (c) of the Check Your Understanding 14.10 I got 1800 rad/s for the angular...
For part (c) of the Check Your Understanding 14.10 I got 1800
rad/s for the angular frequency, am I right? The book gives the
answer as 1.4 * 10^3 rad/s. Also for part (b) I got -pi/2 rad, but
the answer is pi/2 rad and -pi/2 rad. I'm not sure where the pi/2
came from. I've attached the problem below. Please don't solve the
example but the questions after it.
Example 14.6 An LC Circuit In an LC circuit,...
L-C circuit
EnergyStoragein an L-C CircuitAnL-C circuit has an inductance of0.440 and a capacitance of 0.230 . During the current oscillations, the maximumcurrent in the inductor is 2.00 .Part AWhat is the maximum energy stored in the capacitorat anytime during the current oscillations?in joules.Part BHow many times per second does the capacitorcontain the amount of energy found in part A?in times per second.
1. Compute the impedance of a series R-L-C circuit at angular frequencies of ω1= 1000 rad/s...
1. Compute the impedance of a series R-L-C circuit at angular frequencies of ω1= 1000 rad/s , ω2= 710 rad/s and ω3= 455 rad/s . Take R = 170 Ω , L = 0.935 H and C = 2.40 μF . What is the phase angle of the source voltage with respect to the current when ω = 1000 rad/s? 2. A series R–L–C circuit of R = 150 Ω , L = 0.915 H and C = 2.05 μF...
L-C Oscillations. A capacitor with capacitance 5.50 ✕ 10-5 F is charged by connecting it to...
L-C Oscillations. A capacitor with capacitance 5.50 ✕ 10-5 F is charged by connecting it to a 12.0 V battery. The capacitor is disconnected from the battery and connected across an inductor with L = 1.55 H. (a) What are the angular frequency ω of the electrical oscillations and the period of these oscillations (the time for one oscillation)? _______________ rad/s _______________ s (b) What is the initial charge on the capacitor? ________________ C (c) How much energy is initially...
In an L-R-C series circuit, the resistance is 380 ohms, the inductance is 0.360 henrys, and...
In an L-R-C series circuit, the resistance is 380 ohms, the inductance is 0.360 henrys, and the capacitance is 1.40×10−2 microfarads. 1)What is the resonance angular frequency ω0 of the circuit? 2)The capacitor can withstand a peak voltage of 580 volts. If the voltage source operates at the resonance frequency, what maximum voltage amplitude Vmax can the source have if the maximum capacitor voltage is not exceeded?
Define the impedance Z in terms of V and I A two-terminal network contains an inductance L and a capacitance C connected in parallel. Calculate the impedance of this network if - Vo exp(iwt) Determine the frequency which minimises the magnitude of the current flowing through the two-terminal network from part (ii).
Define the impedance Z in terms of V and I A two-terminal network contains an inductance L and a capacitance C connected in parallel. Calculate the impedance of...
For part (c) of the Check Your Understanding 14.10 I got 1800
rad/s for the angular frequency, am I right? The book gives the
answer as 1.4 * 10^3 rad/s. Also for part (b) I got -pi/2 rad, but
the answer is pi/2 rad and -pi/2 rad. I'm not sure where the pi/2
came from. I've attached the problem below. Please don't solve the
example but the questions after it.
Example 14.6 An LC Circuit In an LC circuit,...
