An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor...
An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor with a capacitance of 250 μF . The initial charge on the capacitor is 5.50 μC , and the initial current in the inductor is zero.
a) What is the maximum voltage across the capacitor?

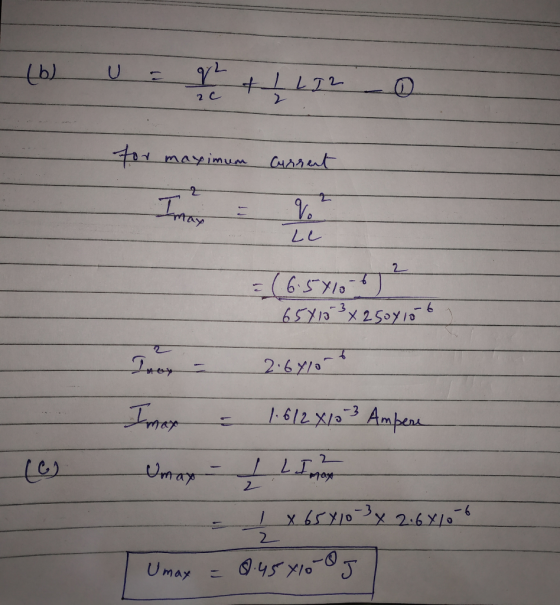

b) What is the maximum current in the inductor?
c) What is the maximum energy stored in the inductor?

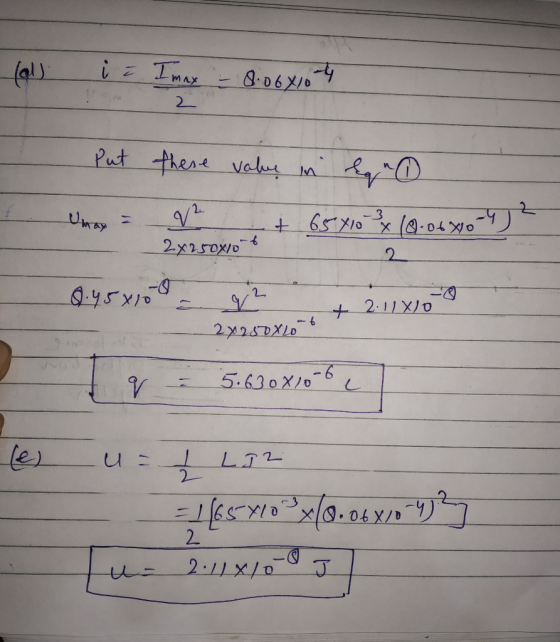

d) When the current in the inductor has half its maximum value, what is the charge on the capacitor?
e) When the current in the inductor has half its maximum value, what is the energy stored in the inductor?
Homework Answers
Add Answer to:
An L-C circuit consists of an inductor with an
inductance of 65.0 mH and a capacitor...
Chapter 31, Problem 001 An oscillating LC circuit consists of a 88.6 mH inductor and a...
Chapter 31, Problem 001 An oscillating LC circuit consists of a 88.6 mH inductor and a 3.10 μF capacitor. If the maximum charge on the capacitor is 2.87 μC, what are (a) the total energy in the circuit and (b) the maximum current? (a) Number (b) Number Units Units
(1 point) A capacitor C = 120 μF has an initial charge of 100 μC. It is connected across an inductor L = 17 mH at t = 0 a) What is the frequency of oscillation? Hz b) What is the maximum current thro...
(1 point) A capacitor C = 120 μF has an initial charge of 100 μC. It is connected across an inductor L = 17 mH at t = 0 a) What is the frequency of oscillation? Hz b) What is the maximum current through L? c) What is the first time at which the energy is equally shared by C and L? ms
(1 point) A capacitor C = 120 μF has an initial charge of 100 μC. It is...
1. A 2.40 mH inductor is connected in series with a dc battery of negligible internal...
1. A 2.40 mH inductor is connected in series with a dc battery of negligible internal resistance, a 0.880 kΩ resistor, and an open switch. a. How long after the switch is closed will it take for the current in the circuit to reach half of its maximum value ? b. How long after the switch is closed will it take for the energy stored in the inductor to reach half of its maximum value? 2. A 4.75 μF capacitor...
An LRC circuit consists of a 15.0 μF capacitor, a resistor, and an inductor connected in...
An LRC circuit consists of a 15.0 μF capacitor, a resistor, and an inductor connected in series across an AC power source of variable frequency having a voltage amplitude of 20.0 V. You observe that when the power source frequency is adjusted to 44.5 Hz, the rms current through the circuit has its maximum value of 65.0 mA. What will be the rms current if you change the frequency of the power source to 60.0 Hz? {? A}
An RLC circuit consists of a 150-Ω resistor, a 21.0-μF capacitor, and a 390-mH inductor connected...
An RLC circuit consists of a 150-Ω resistor, a 21.0-μF capacitor, and a 390-mH inductor connected in series with a 120-V, 60.0-Hz power supply. (a) What is the phase angle between the current and the applied voltage? _____ ° (b) Which reaches its maximum earlier, the current or the voltage? current or voltage?
An LC circuit is built with an inductor L = 9.40 mH and a capacitor C...
An LC circuit is built with an inductor L = 9.40 mH and a capacitor C = 17.9 pF. If the capacitor voltage has its maximum value of V = 4.49 V at t = 0 s, what is the inductor current if the capacitor is fully discharged?
An LC circuit is built with an inductor L = 5.40 mH and a capacitor C...
An LC circuit is built with an inductor L = 5.40 mH and a capacitor C = 73.0 pF. If the capacitor voltage has its maximum value of V = 4.46 V at t = 0 s, what is the inductor current if the capacitor is fully discharged?
An LC circuit is built with an inductor L = 7.40 mH and a capacitor C...
An LC circuit is built with an inductor L = 7.40 mH and a capacitor C = 51.3 pF. If the capacitor voltage has its maximum value of V = 2.40 V at t = 0 s, what is the inductor current if the capacitor is fully discharged?
An L-C circuit containing an 82.0-mH inductor and a 1.60-nF capacitor oscillates with a maximum current...
An L-C circuit containing an 82.0-mH inductor and a 1.60-nF capacitor oscillates with a maximum current of 0.800 A . Assuming the capacitor had its maximum charge at time t= 0, calculate the energy stored in the inductor after 2.40 ms of oscillation.
An L-C circuit containing an 80.0-mH inductor and a 1.40-nF capacitor oscillates with a maximum current...
An L-C circuit containing an 80.0-mH inductor and a 1.40-nF capacitor oscillates with a maximum current of 0.800 A . a.) Assuming the capacitor had its maximum charge at time t= 0, calculate the energy stored in the inductor after 2.55 ms of oscillation.
Chapter 31, Problem 001 An oscillating LC circuit consists of a 88.6 mH inductor and a 3.10 μF capacitor. If the maximum charge on the capacitor is 2.87 μC, what are (a) the total energy in the circuit and (b) the maximum current? (a) Number (b) Number Units Units
(1 point) A capacitor C = 120 μF has an initial charge of 100 μC. It is connected across an inductor L = 17 mH at t = 0 a) What is the frequency of oscillation? Hz b) What is the maximum current through L? c) What is the first time at which the energy is equally shared by C and L? ms
(1 point) A capacitor C = 120 μF has an initial charge of 100 μC. It is...
