An RLC circuit consists of a 150-Ω resistor, a 21.0-μF capacitor, and a 390-mH inductor connected...

An RLC circuit consists of a 150-Ω resistor, a 21.0-μF capacitor, and a 390-mH inductor connected in series with a 120-V, 60.0-Hz power supply.

(a) What is the phase angle between the current and the applied voltage?
_____ °

(b) Which reaches its maximum earlier, the current or the voltage?

current or voltage?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

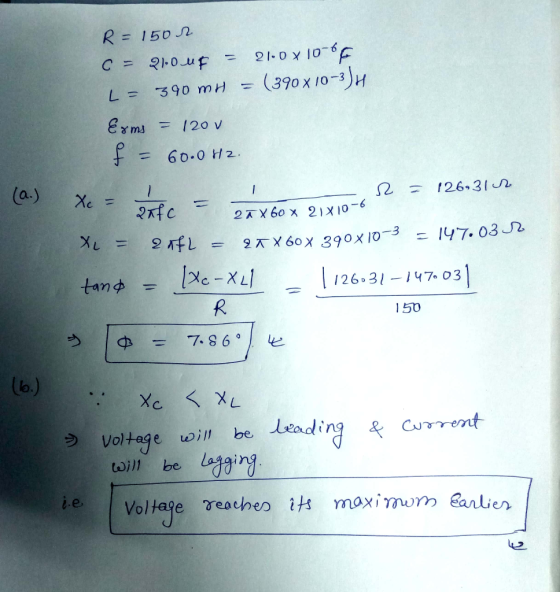

Answer #1
