A 54.0 Ω resistor, a 0.800 H inductor, and a 14.0 µF capacitor are connected in...
A 54.0 Ω resistor, a 0.800 H inductor, and a 14.0 µF capacitor are connected in series to a 60.0 Hz source. The rms current in the circuit is 1.72 A. Find the rms voltages across:
(a) the RLC combination.
(b) phase angle between the current and generator voltage
I've found XC= 189.5 Ω, and XL = 301.6 Ω

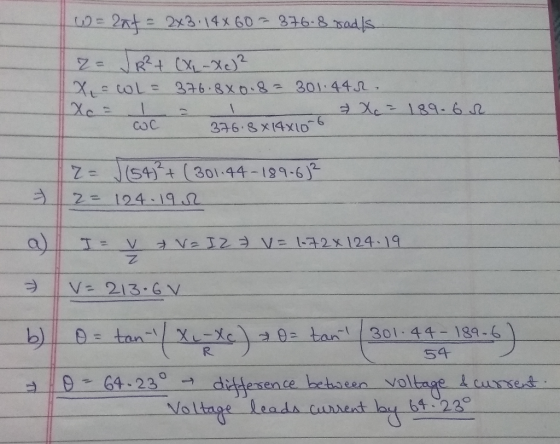

Homework Answers
Add Answer to:
A 54.0 Ω resistor, a 0.800 H inductor, and a 14.0 µF capacitor
are connected in...
A 48.0 Ω resistor, a 0.900 H inductor, and a 17.0 µF capacitor are connected in...
A 48.0 Ω resistor, a 0.900 H inductor, and a 17.0 µF capacitor are connected in series to a 60.0 Hz source. The rms current in the circuit is 3.28 A. Find the rms voltages across (g) the RLC combination. ( h) phase angle between the current and generator voltage
A 28.0-Ω resistor, a 12.0-µF capacitor, and a 17.0-mH inductor are connected in series with a...
A 28.0-Ω resistor, a 12.0-µF capacitor, and a 17.0-mH inductor are connected in series with a 150-V generator. (a) At what frequency is the current a maximum? (b) What is the maximum value of the rms current?
1. A 8.50-Ω resistor, 6.50-mH inductor, and 110-µF capacitor are connected in series to a 45.0-V...
1. A 8.50-Ω resistor, 6.50-mH inductor, and 110-µF capacitor are connected in series to a 45.0-V (rms) source having variable frequency. If the operating frequency is twice the resonance frequency, find the energy delivered to the circuit during one period. 2. A 1.48-mF capacitor is connected to a North American electrical outlet (ΔVrms = 120 V, f = 60.0 Hz). Assuming the energy stored in the capacitor is zero at t = 0, determine the magnitude of the current in...
In a series circuit, a generator (1300 Hz, 15.0 V) is connected to a 14.0- resistor,...
In a series circuit, a generator (1300 Hz, 15.0 V) is connected to a 14.0- resistor, a 3.90-μF capacitor, and a 5.80-mH inductor. Find the voltages across (a) the resistor, (b) the capacitor, and (c) the inductor. Note: The ac current and voltage are rms values and power is an average value unless indicated otherwise.
A 42.0-μF capacitor is connected to a 48.0-Ω resistor and a generator whose rms output is...
A 42.0-μF capacitor is connected to a 48.0-Ω resistor and a generator whose rms output is 30.0 V at 60.0 Hz. (a) Find the rms current in the circuit. A (b) Find the rms voltage drop across the resistor. V (c) Find the rms voltage drop across the capacitor. V (d) Find the phase angle for the circuit. The voltage ---Select--- leads ahead of lags behind the current by °.
An RLC circuit consists of a 150-Ω resistor, a 21.0-μF capacitor, and a 390-mH inductor connected...
An RLC circuit consists of a 150-Ω resistor, a 21.0-μF capacitor, and a 390-mH inductor connected in series with a 120-V, 60.0-Hz power supply. (a) What is the phase angle between the current and the applied voltage? _____ ° (b) Which reaches its maximum earlier, the current or the voltage? current or voltage?
#1A 41.2-µF capacitor is connected across a 55.8-Hz generator. An inductor is then connected in parallel...
#1A 41.2-µF capacitor is connected across a 55.8-Hz generator. An inductor is then connected in parallel with the capacitor. What is the value of the inductance if the rms currents in the inductor and capacitor are equal? _____ mH #2 A 39.0-mH inductor has a reactance of 1.90 kΩ. What is the capacitance of a capacitor that has the same reactance at this frequency? ___F please help me and show me how to do the work correctly
A generator is connected to a resistor and a 0.029-H inductor in series. The rms voltage...
A generator is connected to a resistor and a 0.029-H inductor in series. The rms voltage across the generator is 7.6 V. When the generator frequency is set to 134 Hz, the rms voltage across the inductor is 2.7 V. Determine the resistance of the resistor in this circuit. Ω
A series RLC circuit has a capacitor with a capacitance of 48.0 μF , an inductor...
A series RLC circuit has a capacitor with a capacitance of 48.0 μF , an inductor with an inductance of 0.800 H and a resistor with a resistance of 140. Ω. The circuit has a rms current of 6.90 A when the frequency is 56.0 Hz. What is the phase angle?
A 500 Ω resistor and a 280 mH inductor are connected in series with an ac...
A 500 Ω resistor and a 280 mH inductor are connected in series with an ac generator with an rms voltage of 23.0 V and a frequency of 65.0 Hz What is the rms current in this circuit? I(rms)= ? mA
