A 48.0 Ω resistor, a 0.900 H inductor, and a 17.0 µF capacitor are connected in...

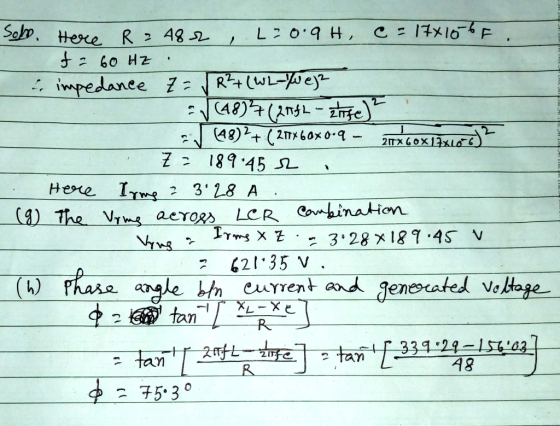

A 48.0 Ω resistor, a 0.900 H inductor, and a 17.0 µF capacitor are connected in series to a 60.0 Hz source. The rms current in the circuit is 3.28 A. Find the rms voltages across (g) the RLC combination. ( h) phase angle between the current and generator voltage
Homework Answers
Add Answer to:
A 48.0 Ω resistor, a 0.900 H inductor, and a 17.0 µF capacitor
are connected in...
A 54.0 Ω resistor, a 0.800 H inductor, and a 14.0 µF capacitor are connected in...
A 54.0 Ω resistor, a 0.800 H inductor, and a 14.0 µF capacitor are connected in series to a 60.0 Hz source. The rms current in the circuit is 1.72 A. Find the rms voltages across: (a) the RLC combination. (b) phase angle between the current and generator voltage I've found XC= 189.5 Ω, and XL = 301.6 Ω
A 28.0-Ω resistor, a 12.0-µF capacitor, and a 17.0-mH inductor are connected in series with a...
A 28.0-Ω resistor, a 12.0-µF capacitor, and a 17.0-mH inductor are connected in series with a 150-V generator. (a) At what frequency is the current a maximum? (b) What is the maximum value of the rms current?
A 42.0-μF capacitor is connected to a 48.0-Ω resistor and a generator whose rms output is...
A 42.0-μF capacitor is connected to a 48.0-Ω resistor and a generator whose rms output is 30.0 V at 60.0 Hz. (a) Find the rms current in the circuit. A (b) Find the rms voltage drop across the resistor. V (c) Find the rms voltage drop across the capacitor. V (d) Find the phase angle for the circuit. The voltage ---Select--- leads ahead of lags behind the current by °.
1. A 8.50-Ω resistor, 6.50-mH inductor, and 110-µF capacitor are connected in series to a 45.0-V...
1. A 8.50-Ω resistor, 6.50-mH inductor, and 110-µF capacitor are connected in series to a 45.0-V (rms) source having variable frequency. If the operating frequency is twice the resonance frequency, find the energy delivered to the circuit during one period. 2. A 1.48-mF capacitor is connected to a North American electrical outlet (ΔVrms = 120 V, f = 60.0 Hz). Assuming the energy stored in the capacitor is zero at t = 0, determine the magnitude of the current in...
A series RLC circuit has a capacitor with a capacitance of 48.0 μF , an inductor...
A series RLC circuit has a capacitor with a capacitance of 48.0 μF , an inductor with an inductance of 0.800 H and a resistor with a resistance of 140. Ω. The circuit has a rms current of 6.90 A when the frequency is 56.0 Hz. What is the phase angle?
An RLC circuit consists of a 150-Ω resistor, a 21.0-μF capacitor, and a 390-mH inductor connected...
An RLC circuit consists of a 150-Ω resistor, a 21.0-μF capacitor, and a 390-mH inductor connected in series with a 120-V, 60.0-Hz power supply. (a) What is the phase angle between the current and the applied voltage? _____ ° (b) Which reaches its maximum earlier, the current or the voltage? current or voltage?
A generator is connected to a resistor and a 0.029-H inductor in series. The rms voltage...
A generator is connected to a resistor and a 0.029-H inductor in series. The rms voltage across the generator is 7.6 V. When the generator frequency is set to 134 Hz, the rms voltage across the inductor is 2.7 V. Determine the resistance of the resistor in this circuit. Ω
An LRC circuit consists of a 15.0 μF capacitor, a resistor, and an inductor connected in...
An LRC circuit consists of a 15.0 μF capacitor, a resistor, and an inductor connected in series across an AC power source of variable frequency having a voltage amplitude of 20.0 V. You observe that when the power source frequency is adjusted to 44.5 Hz, the rms current through the circuit has its maximum value of 65.0 mA. What will be the rms current if you change the frequency of the power source to 60.0 Hz? {? A}
A generator is connected to a resistor and a 0.028-H inductor in series. The rms voltage...
A generator is connected to a resistor and a 0.028-H inductor in series. The rms voltage across the generator is 9.5 V. When the generator frequency is set to 110 Hz, the rms voltage across the inductor is 3.5 V. Determine the resistance of the resistor in this circuit.
A circuit consists of a 292- resistor and a 0.206-H inductor. These two elements are connected...
A circuit consists of a 292- resistor and a 0.206-H inductor. These two elements are connected in series across a generator that has a frequency of 93.6 Hz and a voltage of 251 V. (a) What is the current in the circuit? (b) Determine the phase angle between the current and the voltage of the generator. Note: The ac current and voltage are rms values and power is an average value unless indicated otherwise.
