A 42.0-μF capacitor is connected to a 48.0-Ω resistor and a generator whose rms output is...

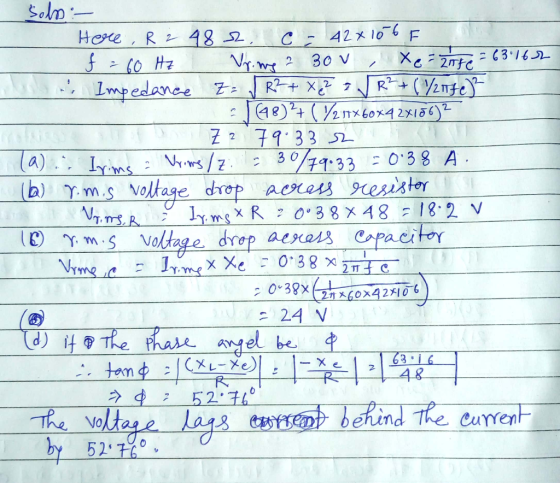

A 42.0-μF capacitor is connected to a 48.0-Ω resistor and a generator whose rms output is 30.0 V at 60.0 Hz.
(a) Find the rms current in the circuit.
A
(b) Find the rms voltage drop across the resistor.
V
(c) Find the rms voltage drop across the capacitor.
V
(d) Find the phase angle for the circuit.
The voltage ---Select--- leads ahead of lags behind the
current by °.
Homework Answers
Add Answer to:
A 42.0-μF capacitor is connected to a 48.0-Ω resistor
and a generator whose rms output is...
A 48.0 Ω resistor, a 0.900 H inductor, and a 17.0 µF capacitor are connected in...
A 48.0 Ω resistor, a 0.900 H inductor, and a 17.0 µF capacitor are connected in series to a 60.0 Hz source. The rms current in the circuit is 3.28 A. Find the rms voltages across (g) the RLC combination. ( h) phase angle between the current and generator voltage
A resistor (R = 9.00 ✕ 102 Ω), a capacitor (C = 0.250 μF), and an...
A resistor (R = 9.00 ✕ 102 Ω), a capacitor (C = 0.250 μF), and an inductor (L = 2.40 H) are connected in series across a 2.40 ✕ 102-Hz AC source for which ΔVmax = 1.05 ✕ 102 V. (a) Calculate the impedance of the circuit. _____kΩ (b) Calculate the maximum current delivered by the source. ____A (c) Calculate the phase angle between the current and voltage. _____° (d) Is the current leading or lagging behind the voltage? 1)The...
A 3490 - Ω resistor and a 1.7 - μF capacitor are connected in series across...
A 3490 - Ω resistor and a 1.7 - μF capacitor are connected in series across a generator (60.0 Hz, 120 V). Determine the power delivered to the circuit.
A 54.0 Ω resistor, a 0.800 H inductor, and a 14.0 µF capacitor are connected in...
A 54.0 Ω resistor, a 0.800 H inductor, and a 14.0 µF capacitor are connected in series to a 60.0 Hz source. The rms current in the circuit is 1.72 A. Find the rms voltages across: (a) the RLC combination. (b) phase angle between the current and generator voltage I've found XC= 189.5 Ω, and XL = 301.6 Ω
An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected...
An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected in series with a 0.350 H inductor, a 5.10 μF capacitor and a 306 Ω resistor. a. What is the impedance of the circuit? b. What is the rms current through the resistor? c. What is the average power dissipated in the circuit? d. What is the peak current through the resistor? e. What is the peak voltage across the inductor? f. What is...
A 120 μF capacitor is connected to an ac generator with an rms voltage of 17.0...
A 120 μF capacitor is connected to an ac generator with
an rms voltage of 17.0 V and a frequency of 130.0 Hz .
Constants I Periodic Table Part A A 120 μΡ capacitors connected to an ac generator with an rms voltage of 17.0 V and a frequency of 130.0 Hz What is the rms current in this circuit?
A 80.0 Hz generator with an rms voltage of 135 V is connected in series to...
A 80.0 Hz generator with an rms voltage of 135 V is connected in series to a 3.10 kΩ resistor and a 3.15 μF capacitor. a) Find the rms current in the circuit. b) Find the phase angle, ϕ, between the current and the voltage.
An AC generator supplies an rms voltage of 240 V at 60.0 Hz. It is connected...
An AC generator supplies an rms voltage of 240 V at 60.0 Hz. It is connected in series with a 0.650 H inductor, a 6.00 μF capacitor and a 266 Ω resistor. What is the average power dissipated in the circuit?
An RLC circuit consists of a 150-Ω resistor, a 21.0-μF capacitor, and a 390-mH inductor connected...
An RLC circuit consists of a 150-Ω resistor, a 21.0-μF capacitor, and a 390-mH inductor connected in series with a 120-V, 60.0-Hz power supply. (a) What is the phase angle between the current and the applied voltage? _____ ° (b) Which reaches its maximum earlier, the current or the voltage? current or voltage?
A 93.0-mH inductor and a 6.50-μF capacitor are connected in series with a generator whose frequency...
A 93.0-mH inductor and a
6.50-μF capacitor are connected in series with a generator whose
frequency is 549 Hz. The rms voltage across the capacitor is 2.50
V. Determine the rms voltage across the inductor.
Vo sin 2π ft rms
A 120 μF capacitor is connected to an ac generator with
an rms voltage of 17.0 V and a frequency of 130.0 Hz .
Constants I Periodic Table Part A A 120 μΡ capacitors connected to an ac generator with an rms voltage of 17.0 V and a frequency of 130.0 Hz What is the rms current in this circuit?
A 93.0-mH inductor and a
6.50-μF capacitor are connected in series with a generator whose
frequency is 549 Hz. The rms voltage across the capacitor is 2.50
V. Determine the rms voltage across the inductor.
Vo sin 2π ft rms
