An LC circuit is built with an inductor L = 5.40 mH and a capacitor C...

An LC circuit is built with an inductor L = 5.40 mH and a capacitor C = 73.0 pF. If the capacitor voltage has its maximum value of V = 4.46 V at t = 0 s, what is the inductor current if the capacitor is fully discharged?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Request Professional Answer

Request Answer!

We need at least 10 more requests to produce the answer.

0 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)

All students who have requested the answer will be notified once they are available.
Know the answer?
Add Answer to:
An LC circuit is built with an inductor L = 5.40 mH and a capacitor C...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Similar Homework Help Questions

  • An LC circuit is built with an inductor L = 9.40 mH and a capacitor C...

    An LC circuit is built with an inductor L = 9.40 mH and a capacitor C = 17.9 pF. If the capacitor voltage has its maximum value of V = 4.49 V at t = 0 s, what is the inductor current if the capacitor is fully discharged?

  • An LC circuit is built with an inductor L = 7.40 mH and a capacitor C...

    An LC circuit is built with an inductor L = 7.40 mH and a capacitor C = 51.3 pF. If the capacitor voltage has its maximum value of V = 2.40 V at t = 0 s, what is the inductor current if the capacitor is fully discharged?

  • An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor...

    An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor with a capacitance of 250 μF . The initial charge on the capacitor is 5.50 μC , and the initial current in the inductor is zero. a) What is the maximum voltage across the capacitor? b) What is the maximum current in the inductor? c) What is the maximum energy stored in the inductor? d) When the current in the inductor has half its...

  • please help!! LC Circuit 1 а A circuit is constructed with two capacitors and an inductor...

    please help!! LC Circuit 1 а A circuit is constructed with two capacitors and an inductor as shown. The values for the capacitors are: C1 = 175 pF and C2 = 399 pF. The inductance is L = 254 mH. At time t =0, the current through the inductor has its maximum value I (0) = 262 mA and it has the direction shown. 0000 1) What is wo, the resonant frequency of this circuit? 179 radians/s Submit Your submissions:...

  • Part 1 An LC circuit is shown in the figure below. The 32 pF capacitor is...

    Part 1 An LC circuit is shown in the figure below. The 32 pF capacitor is initially charged by the 10 V battery when S is at position a. Then S is thrown to position b so that the capacitor is shorted across the 12 mH inductor What is the maximum value for the oscillating current assuming no resistance in the circuit? Answer in units of A. Part 2 What is the maximum energy stored in the magnetic field of...

  • An LC circuit like the one in the figure below contains an 65.0 mH inductor and...

    An LC circuit like the one in the figure below contains an 65.0 mH inductor and a 10.0 pF capacitor that initially carries a 175 UC charge. The switch is open for t < 0 and is then thrown closed at t = 0. lle (a) Find the frequency (in hertz) of the resulting oscillations. 197 HZ (b) At t = 1.00 ms, find the charge on the capacitor. 174 x Remember that your answer to part (a) is in...

  • An LC circuit like the one in the figure below contains an 80.0 mH inductor and...

    An LC circuit like the one in the figure below contains an 80.0 mH inductor and a 30.0 µF capacitor that initially carries a 175 µC charge. The switch is open for t < 0 and is then thrown closed at t = 0. A rectangular loop forms an L C circuit. The left side of the loop contains a capacitor C carrying a charge Qmax, with the positively charged plate above the negatively charged plate. The right side of...

  • An LC circuit like the one in the figure below contains an 80.0 mH inductor and...

    An LC circuit like the one in the figure below contains an 80.0 mH inductor and a 30.0 µF capacitor that initially carries a 175 µC charge. The switch is open for t < 0 and is then thrown closed at t = 0. A rectangular loop forms an L C circuit. The left side of the loop contains a capacitor C carrying a charge Qmax, with the positively charged plate above the negatively charged plate. The right side of...

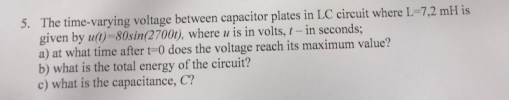

  • 5. The time-varying voltage between capacitor plates in LC circuit where L=7,2 mH is given by...

    5. The time-varying voltage between capacitor plates in LC circuit where L=7,2 mH is given by u(t)=80sin(27001), where u is in volts, t - in seconds; a) at what time after t=0 does the voltage reach its maximum value? b) what is the total energy of the circuit? c) what is the capacitance, C?

  • Consider an LC circuit with L = 13 mH and C = 2352 pF. At what...

    Consider an LC circuit with L = 13 mH and C = 2352 pF. At what frequency is the reactance of the inductor equal to the reactance of the capacitor? =_____Hz What is the resonant frequency of the circuit? =_____Hz
