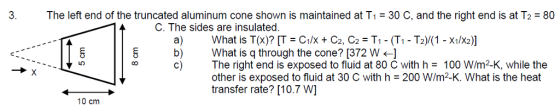

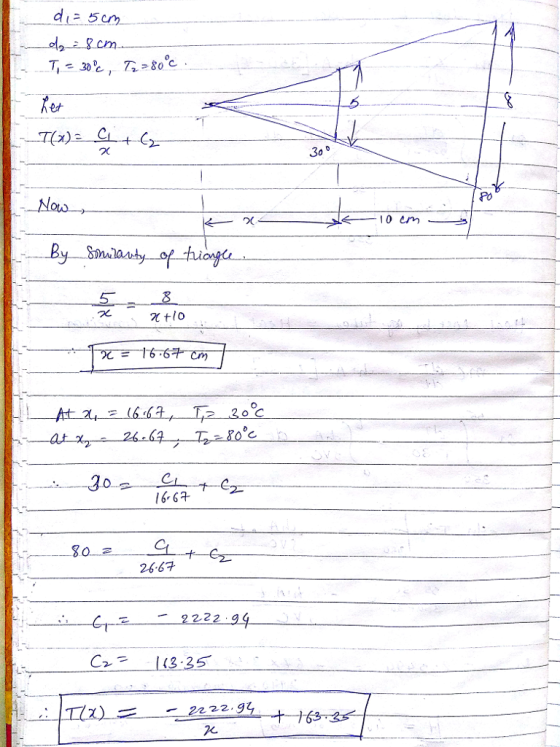

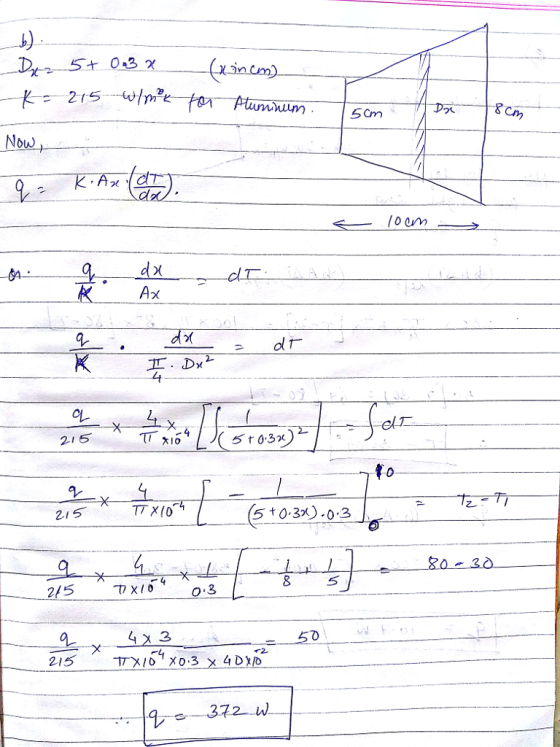

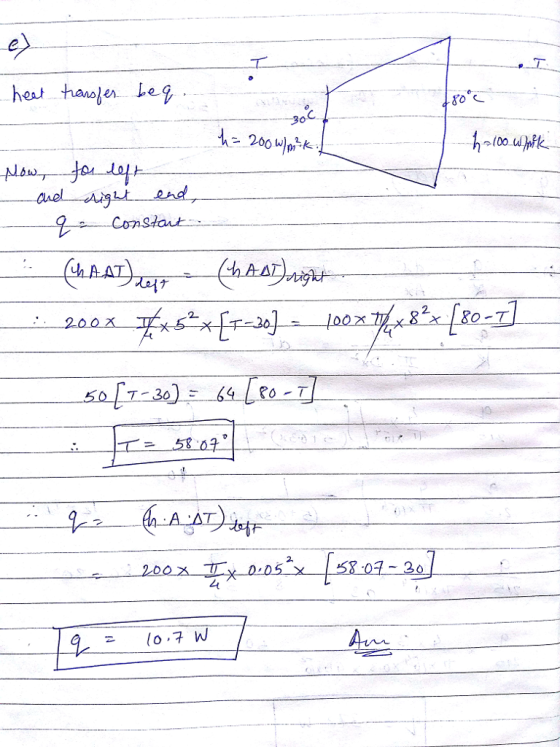

![3. The left end of the truncated aluminum cone shown is maintained at T1 30 C, and the right end is at T280 C. The sides are insulated. What is T(x)? [T = Cix + C2, C2 = T1-(T1-T2)/(1-X1/X2)] What is q through the cone? [372 W The right end is exposed to fluid at 80 C with h = 100 W/m2-K, while the other is exposed to fluid at 30 C with h = 200 W/m2-K. What is the heat transfer rate? [10.7 W] a) b) 10 cm](http://img.homeworklib.com/questions/18288d40-bf87-11ea-b971-8b6d7e705ffb.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
3. The left end of the truncated aluminum cone shown is maintained at T1 30 C,...
A truncated solid cone is of circular cross section, and its diameter is related to the...
A truncated solid cone is of circular cross section, and its
diameter is related to the axial coordinate by an expression of the
formD=ax3/2, wherea=1.0 m-1/2.
The sides are well insulated, while the top surface of the cone
atx1is maintained atT1and the bottom surface atx2is maintained
atT2.
What is the rate of heat transfer across the cone if it is
constructed of pure aluminum withx1=0.075 m,T1=240°C,x2=0.225 m,
andT2=20°C? Evaluate the properties of aluminum atT¯=333 K.
A truncated cone 30 cm high is constructed of aluminum [k = 204 W/m 0C]. The...
A truncated cone 30 cm high is constructed of aluminum [k = 204 W/m 0C]. The diameter at the top is 7.5 cm, and the diameter at the bottom is 12.5 cm. The lower surface is maintained at 93 °C; the upper surface, at 540 °C. The other surface is insulated. Assuming one dimensional heat flow, what is the rate of heat transfer in watts?
3. The wall shown in the figure below has thickness L 0.25 m and uniform thermal...
3. The wall shown in the figure below has thickness L 0.25 m and uniform thermal conductivity k-1 W/mK. It is exposed to circulating fluid on the surface at x = L, where the temperature ofthe fluid is T-= 30°C and the convection coefficient is h = 4 W/m2.K. The surface at x = 0 is maintained at constant temperature T-20 °C. Assume ID heat flux, and that the system is at steady state a) b) Determine the temperature distribution...
The upper and lower sides of the rectangular aluminum block L-10mm, D 3mm) are insulated as shown below. The left and r...
The upper and lower sides of the rectangular aluminum block L-10mm, D 3mm) are insulated as shown below. The left and right sides have temperature boundary conditions and convective boundary conditions, respectively Surface temperature T 100 C, Outside temperature T-20 C Heat transfer coefficent h 120W/(m2 k) Alumium thermal conductivity K-220 W/(m k), density p-2707kg/m Specific heat C896J/(kg K) Assuming the aluminum block is a two-dimensional shape, calculate the temperature on the plane(x-y) as follows. 1) Calculate the temperature of...
A heat conducting rod, is made of an aluminum section that is 0.10 m long, and...
A heat conducting rod, is made of an aluminum section that is 0.10 m long, and a copper section that is 0.80 m long. Both sections have cross-sectional areas of 0,0004 m2. The aluminum end is maintained at a temperature of 20°C and the copper end is at 121°C. The thermal conductivity of aluminum is 205 W/m∙K and of copper is 385 W/m∙K. Steady state has been reached, and no heat is lost through the well-insulated sides of the rod....
Problem 1. (75') This is a 1-D steady state problem. Only object A generates heat per unit volume of dA 2 x 106W/m3. The left surface of A is insulated and the right surface of B is exposed to a...
Problem 1. (75') This is a 1-D steady state problem. Only object A generates heat per unit volume of dA 2 x 106W/m3. The left surface of A is insulated and the right surface of B is exposed to a fluid. Temperature of the fluid is To 300 K. The convective heat transfer coefficient is h 1000 W/m2/K Thermal conductivity of A is kA 30 W/m/K, and B is k 20 W/m/K Thickness of each object is: IA-30 mm, 1':...
A block of aluminum at a temperature of T1 = 31.5 degrees C has a mass...
A block of aluminum at a temperature of T1 = 31.5 degrees C has a mass of m1 = 14 kg. It is brought into contact with another block of aluminum with a mass of m2 = 0.5m1, at a temperature of T2 = 15 degrees C. This aluminum has a heat capacity of c = 899 J/kg K. b. What is the temperature in degrees C? c. What was the heat transfer to block 1, in joules?
2. An aluminum cylinder has a radius (ra) of 3 cm and al n cylinder has...
2. An aluminum cylinder has a radius (ra) of 3 cm and al n cylinder has a radius (11) of 3 cm and a length (L) of 10 cm. The cylinder is covered with an additional insulation laver which has the critical insulation thickness The insulation surface is exposed to ambient air with the convection heat trans coefficient of h = 5 W/m2.°C. The surface temperature (T1) of aluminum cylinder is 100 The ambient air temperature (T..) is 25 °C....
Question 3 34 pts ro 1 ri = 0.05m A pipe with surface temperature T1 -...
Question 3 34 pts ro 1 ri = 0.05m A pipe with surface temperature T1 - 458 K is wrapped with 0.04 m of glass fiber pipe insulation. The outer surface temperature of the insulation, T2 is equal to 347 K and its emissivity is equal to 0.68. The insulation is also subject to natural convection with a bulk fluid temperature of 298 K and h = 4 W/m2-K. For a pipe length of 100 m, and assuming that the...
In a manufacturing process, a transparent film is being bonded to a substrate as shown in...
In a manufacturing process, a transparent film is being bonded to a substrate as shown in the sketch, where Lj = 0.8 mm, with an associated k, =0.025 W/m-K and Ly =1.0 mm with an associated ks =0.05 W/m-K. To cure the bond at a temperature To, a radiant source is used to provide a heat flux d" (W/m2), all of which is absorbed at the bonded surface. The back of the substrate is maintained at T while the free...
A truncated solid cone is of circular cross section, and its
diameter is related to the axial coordinate by an expression of the
formD=ax3/2, wherea=1.0 m-1/2.
The sides are well insulated, while the top surface of the cone
atx1is maintained atT1and the bottom surface atx2is maintained
atT2.
What is the rate of heat transfer across the cone if it is
constructed of pure aluminum withx1=0.075 m,T1=240°C,x2=0.225 m,
andT2=20°C? Evaluate the properties of aluminum atT¯=333 K.
3. The wall shown in the figure below has thickness L 0.25 m and uniform thermal conductivity k-1 W/mK. It is exposed to circulating fluid on the surface at x = L, where the temperature ofthe fluid is T-= 30°C and the convection coefficient is h = 4 W/m2.K. The surface at x = 0 is maintained at constant temperature T-20 °C. Assume ID heat flux, and that the system is at steady state a) b) Determine the temperature distribution...
The upper and lower sides of the rectangular aluminum block L-10mm, D 3mm) are insulated as shown below. The left and right sides have temperature boundary conditions and convective boundary conditions, respectively Surface temperature T 100 C, Outside temperature T-20 C Heat transfer coefficent h 120W/(m2 k) Alumium thermal conductivity K-220 W/(m k), density p-2707kg/m Specific heat C896J/(kg K) Assuming the aluminum block is a two-dimensional shape, calculate the temperature on the plane(x-y) as follows. 1) Calculate the temperature of...
Problem 1. (75') This is a 1-D steady state problem. Only object A generates heat per unit volume of dA 2 x 106W/m3. The left surface of A is insulated and the right surface of B is exposed to a fluid. Temperature of the fluid is To 300 K. The convective heat transfer coefficient is h 1000 W/m2/K Thermal conductivity of A is kA 30 W/m/K, and B is k 20 W/m/K Thickness of each object is: IA-30 mm, 1':...
2. An aluminum cylinder has a radius (ra) of 3 cm and al n cylinder has a radius (11) of 3 cm and a length (L) of 10 cm. The cylinder is covered with an additional insulation laver which has the critical insulation thickness The insulation surface is exposed to ambient air with the convection heat trans coefficient of h = 5 W/m2.°C. The surface temperature (T1) of aluminum cylinder is 100 The ambient air temperature (T..) is 25 °C....
Question 3 34 pts ro 1 ri = 0.05m A pipe with surface temperature T1 - 458 K is wrapped with 0.04 m of glass fiber pipe insulation. The outer surface temperature of the insulation, T2 is equal to 347 K and its emissivity is equal to 0.68. The insulation is also subject to natural convection with a bulk fluid temperature of 298 K and h = 4 W/m2-K. For a pipe length of 100 m, and assuming that the...
In a manufacturing process, a transparent film is being bonded to a substrate as shown in the sketch, where Lj = 0.8 mm, with an associated k, =0.025 W/m-K and Ly =1.0 mm with an associated ks =0.05 W/m-K. To cure the bond at a temperature To, a radiant source is used to provide a heat flux d" (W/m2), all of which is absorbed at the bonded surface. The back of the substrate is maintained at T while the free...
