A heat conducting rod, is made of an aluminum section that is 0.10 m long, and...

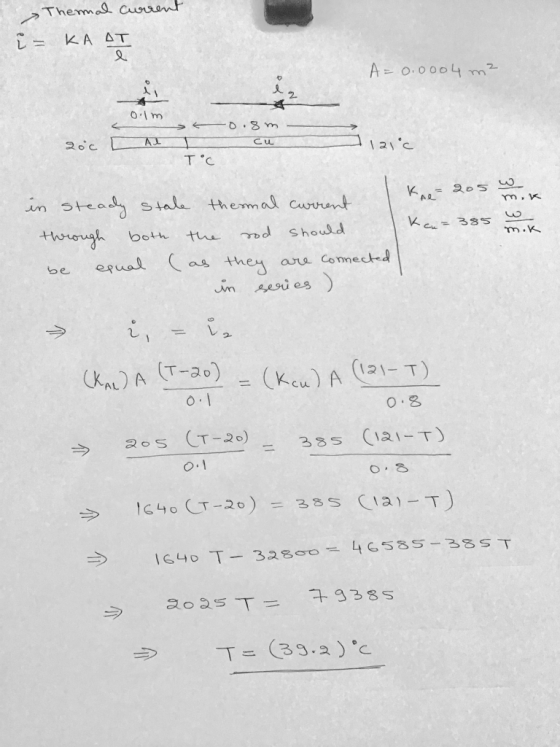

A heat conducting rod, is made of an aluminum section that is 0.10 m long, and a copper section that is 0.80 m long. Both sections have cross-sectional areas of 0,0004 m2. The aluminum end is maintained at a temperature of 20°C and the copper end is at 121°C. The thermal conductivity of aluminum is 205 W/m∙K and of copper is 385 W/m∙K. Steady state has been reached, and no heat is lost through the well-insulated sides of the rod. Calcualte the temperature of the aluminum-copper junction in the rod. Answer in two decimal places.
Homework Answers
Add Answer to:
A heat conducting rod, is made of an aluminum section that is
0.10 m long, and...
Heat Flowing through a Sectioned Rod
A long rod, insulated to prevent heat loss along its sides, is in perfect thermal contact with boiling water (at atmospheric pressure) at one end and with an ice-water mixture at the other. The rod consists of a 1.00 m section of copper (with one end in the boiling water) joined end-to-end to a length L2 of steel (with one end in the ice water). Both sections of the rod have cross-sectional areas of 4.00 cm2. The temperature of the copper-steel junction...
Problems 4, 5 & 6 15) A heat-conducting rod, 0.90 m long and wrapped in insulation,...
Problems 4, 5 & 6
15) A heat-conducting rod, 0.90 m long and wrapped in insulation, is made of an aluminum section that is 0.20 m long and a copper section that is 0.20m long. Both sections have a cross- sectional area of 0.00040 m2, The aluminum end and the copper end are maintained at temperatures of 30 C and 230 C respectively. The thermal conductivities of aluminum and copper are 205 W/m K (aluminum) and 385 W/m K (copper)....
A copper rod is 0.815 m0.815 m long with a rectangular cross section of dimensions 0.0543...
A copper rod is 0.815 m0.815 m long with a rectangular cross section of dimensions 0.0543 m0.0543 m by 0.0781 m0.0781 m. The ends of the rod are held at 51.5 ∘C51.5 ∘C and 89.9 ∘C89.9 ∘C, but the rod is otherwise insulated from its environment. Find the heat current (the amount of heat that flows per unit time) through the rod. The thermal conductivity of copper is 385 W/(m⋅K)385 W/(m⋅K).
copper rod is 0.791 m long with a rectangular cross section of dimensions 0.0451 m by...
copper rod is 0.791 m long with a rectangular cross section of dimensions 0.0451 m by 0.0751 m. The ends of the rod are held at 55.1 'C and 99.1 'C, but the rod is otherwise insulated from its environment. Find the heat current (the amount of heat that flows per unit time) through the rod. The thermal conductivity of copper is 385 W/(m K). heat current
A copper rod is 0.825 m long with a rectangular cross section of dimensions 0.0463 m...
A copper rod is 0.825 m long with a rectangular cross section of dimensions 0.0463 m by 0.0829 m . The ends of the rod are held at 52.7 ∘C and 91.5 ∘C , but the rod is otherwise insulated from its environment. Find the heat current (the amount of heat that flows per unit time) through the rod. The thermal conductivity of copper is 385 W/(m⋅K) . Please show work
u have a 0.883-m-long copper rod with a rectangular cross section of dimensions 0.0563 m by...
u have a 0.883-m-long copper rod with a rectangular cross section of dimensions 0.0563 m by 0.0753 m. You maintain the ends of the rod at 44.3°C and 92.5°C, but otherwise insulate the rod from its environment. Find the heat current* through the rod. The thermal conductivity of copper is 385 W/(m K) Number ) The heat current is the amount of heat that flows per unit time.
A copper rod and an aluminum rod of equal diameter are joined end to end in...
A copper rod and an aluminum rod of equal diameter are joined end to end in good thermal contact. The temperature of the free end of the copper rod is held constant at 100°C, and that of the far end of the aluminum rod is held at 0°C. If the copper rod is 0.80 m long, what must be the length of the aluminum rod so that the temperature at the junction is 50°C?
A copper rod and an aluminum rod of the same length and cross-sectional area are attached...
A copper rod and an aluminum rod of the same length and cross-sectional area are attached end to end. The copper end is placed in a furnace which is maintained at a constant temperature of 292∘C. The aluminum end is placed in an ice bath held at constant temperature of 0.0∘C. Calculate the temperature (in degrees Celsius) at the point where the two rods are joined. The thermal conductivity of copper is 380 J/(s⋅m⋅C∘) and that of aluminum is 200...
A copper rod and an aluminum rod of equal diameter are joined end to end in...
A copper rod and an aluminum rod of equal diameter are joined end to end in good thermal contact. The temperature of the free end of the copper rod is held constant at 100°C, and that of the far end of the aluminum rod is held at 0°C. If the copper rod is 0.74 m long, what must be the length of the aluminum rod so that the temperature at the junction is 50°C? __________________m
Two rods, one made of brass and the other made of copper, are joined end to...
Two rods, one made of brass and the other made of copper, are joined end to end. The length of the brass section is 0.160 m and the length of the copper section is 0.640 m. Each segment has cross-sectional area 0.00680 m². The free end of the brass segment is in boiling water and the free end of the copper segment is in an ice and water mixture, in both cases under normal atmospheric pressure. The sides of the...
Problems 4, 5 & 6
15) A heat-conducting rod, 0.90 m long and wrapped in insulation, is made of an aluminum section that is 0.20 m long and a copper section that is 0.20m long. Both sections have a cross- sectional area of 0.00040 m2, The aluminum end and the copper end are maintained at temperatures of 30 C and 230 C respectively. The thermal conductivities of aluminum and copper are 205 W/m K (aluminum) and 385 W/m K (copper)....
copper rod is 0.791 m long with a rectangular cross section of dimensions 0.0451 m by 0.0751 m. The ends of the rod are held at 55.1 'C and 99.1 'C, but the rod is otherwise insulated from its environment. Find the heat current (the amount of heat that flows per unit time) through the rod. The thermal conductivity of copper is 385 W/(m K). heat current
u have a 0.883-m-long copper rod with a rectangular cross section of dimensions 0.0563 m by 0.0753 m. You maintain the ends of the rod at 44.3°C and 92.5°C, but otherwise insulate the rod from its environment. Find the heat current* through the rod. The thermal conductivity of copper is 385 W/(m K) Number ) The heat current is the amount of heat that flows per unit time.
