A copper rod and an aluminum rod of the same length and cross-sectional area are attached...

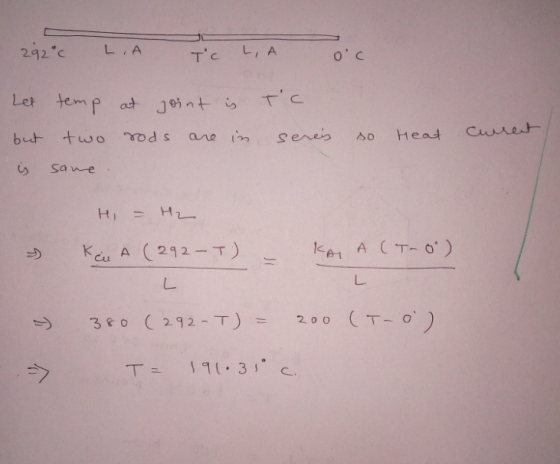

A copper rod and an aluminum rod of the same length and cross-sectional area are attached end to end. The copper end is placed in a furnace which is maintained at a constant temperature of 292∘C. The aluminum end is placed in an ice bath held at constant temperature of 0.0∘C. Calculate the temperature (in degrees Celsius) at the point where the two rods are joined. The thermal conductivity of copper is 380 J/(s⋅m⋅C∘) and that of aluminum is 200 J/(s⋅m⋅C∘)).
Homework Answers
Add Answer to:
A copper rod and an aluminum rod of the same length and
cross-sectional area are attached...
A copper rod and an aluminum rod of the same length and cross-sectional area are attached...
A copper rod and an aluminum rod of the same length and cross-sectional area are attached end to end (Figure 1). The copper end is placed in a furnace maintained at a constant temperature TCu = 230 ∘C . The aluminum end is placed in an ice bath held at a constant temperature of 0.0∘C. Calculate the temperature at the point where the two rods are joined.
phys1
A copper rod and an aluminum rod of the same length and cross-sectional area are attached end to end (Fig. 14-15). The copper endis placed in a furnace which is maintained at a constant temperature of242°C. The aluminum end is placed in an ice bath held at constant temperature of 0.0°C.Calculate the temperature at the point where the two rods are joined. °CFigure 14-15
Two rods of the same cross-sectional area are laid down in a line and joined where...
Two rods of the same cross-sectional area are laid down in a
line and joined where they meet. Rod B has twice the length of rod
A, and the thermal conductivity of the material that rod B is made
from is three times larger than the thermal conductivity of the
material that rod A is made from. The far end of rod A is
maintained at a constant temperature of 90 degrees Celsius, and the
far end of rod B...
A copper rod and an aluminum rod of equal diameter are joined end to end in...
A copper rod and an aluminum rod of equal diameter are joined end to end in good thermal contact. The temperature of the free end of the copper rod is held constant at 100°C, and that of the far end of the aluminum rod is held at 0°C. If the copper rod is 0.80 m long, what must be the length of the aluminum rod so that the temperature at the junction is 50°C?
A copper rod and an aluminum rod of equal diameter are joined end to end in...
A copper rod and an aluminum rod of equal diameter are joined end to end in good thermal contact. The temperature of the free end of the copper rod is held constant at 100°C, and that of the far end of the aluminum rod is held at 0°C. If the copper rod is 0.74 m long, what must be the length of the aluminum rod so that the temperature at the junction is 50°C? __________________m
Two rods of the same length and diameter are made from copper and aluminium, respectively. The...
Two rods of the same length and diameter are made from copper and aluminium, respectively. The rods are connected in series and to two regions of different temperature so that energy will transfer through the rods by heat. The temperature Th is maintained at a constant 84.0 °C at the end A while the temperature Tc at the end B is maintained at 19.0 °C. The thermal conductivity of copper is 397 J/(s · m · °C) and that for...
A heat conducting rod, is made of an aluminum section that is 0.10 m long, and...
A heat conducting rod, is made of an aluminum section that is 0.10 m long, and a copper section that is 0.80 m long. Both sections have cross-sectional areas of 0,0004 m2. The aluminum end is maintained at a temperature of 20°C and the copper end is at 121°C. The thermal conductivity of aluminum is 205 W/m∙K and of copper is 385 W/m∙K. Steady state has been reached, and no heat is lost through the well-insulated sides of the rod....
A copper rod has a length of 1.5 m and a cross-sectional area of 4.8 ×...
A copper rod has a length of 1.5 m and a cross-sectional area of 4.8 × 10-4 m2. One end of the rod is in contact with boiling water and the other with a mixture of ice and water. What is the mass of ice per second that melts? Assume that no heat is lost through the side surface of the rod. GIve answer in kg/s.
A copper rod has a length of 2.0 m and a cross-sectional area of 3.4 x...
A copper rod has a length of 2.0 m and a cross-sectional area of 3.4 x 10-4 m2. One end of the rod is in contact with boiling water and the other with a mixture of ice and water. What is the mass of ice per second that melts? Assume that no heat is lost through the side surface of the rod. m/t = i
A copper rod has a length of 1.3 m and a cross-sectional area of 3.9 10-4...
A copper rod has a length of 1.3 m and a cross-sectional area of 3.9 10-4 m2. One end of the rod is in contact with boiling water and the other with a mixture of ice and water. What is the mass of ice per second that melts? Assume that no heat is lost through the side surface of the rod. m/t = Incorrect: Your answer is incorrect. Correct: Your answer is correct.
Two rods of the same cross-sectional area are laid down in a
line and joined where they meet. Rod B has twice the length of rod
A, and the thermal conductivity of the material that rod B is made
from is three times larger than the thermal conductivity of the
material that rod A is made from. The far end of rod A is
maintained at a constant temperature of 90 degrees Celsius, and the
far end of rod B...
A copper rod has a length of 2.0 m and a cross-sectional area of 3.4 x 10-4 m2. One end of the rod is in contact with boiling water and the other with a mixture of ice and water. What is the mass of ice per second that melts? Assume that no heat is lost through the side surface of the rod. m/t = i
