Two rods of the same length and diameter are made from copper and aluminium, respectively. The...

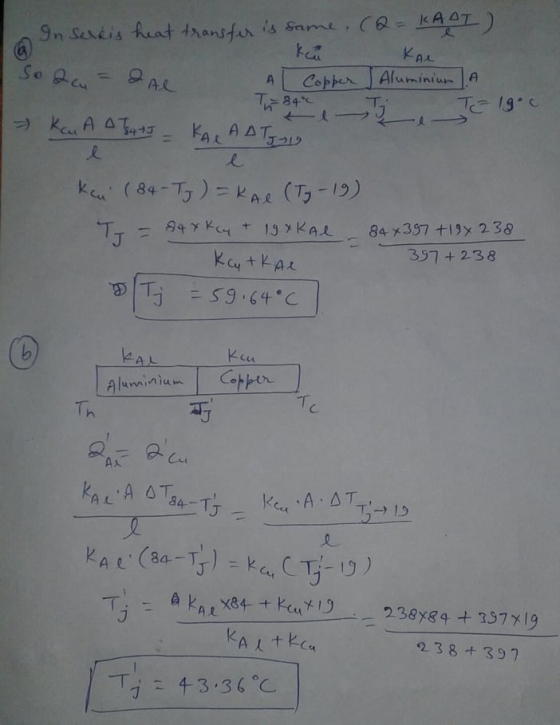

Two rods of the same length and diameter are made from copper and aluminium, respectively. The rods are connected in series and to two regions of different temperature so that energy will transfer through the rods by heat. The temperature Th is maintained at a constant 84.0 °C at the end A while the temperature Tc at the end B is maintained at 19.0 °C. The thermal conductivity of copper is 397 J/(s · m · °C) and that for aluminum is 238 J/(s · m · °C). (a) Determine the temperature Tj at the junction of the two rods. (b) If the two rods are now interchanged, but the values of Th and Tc are the same as in part (a), what will be the temperature of the junction?
Homework Answers
Add Answer to:
Two rods of the same length and diameter are made from copper
and aluminium, respectively. The...
A copper rod and an aluminum rod of the same length and cross-sectional area are attached...
A copper rod and an aluminum rod of the same length and cross-sectional area are attached end to end. The copper end is placed in a furnace which is maintained at a constant temperature of 292∘C. The aluminum end is placed in an ice bath held at constant temperature of 0.0∘C. Calculate the temperature (in degrees Celsius) at the point where the two rods are joined. The thermal conductivity of copper is 380 J/(s⋅m⋅C∘) and that of aluminum is 200...
A copper rod and an aluminum rod of the same length and cross-sectional area are attached...
A copper rod and an aluminum rod of the same length and cross-sectional area are attached end to end (Figure 1). The copper end is placed in a furnace maintained at a constant temperature TCu = 230 ∘C . The aluminum end is placed in an ice bath held at a constant temperature of 0.0∘C. Calculate the temperature at the point where the two rods are joined.
A heat conducting rod, is made of an aluminum section that is 0.10 m long, and...
A heat conducting rod, is made of an aluminum section that is 0.10 m long, and a copper section that is 0.80 m long. Both sections have cross-sectional areas of 0,0004 m2. The aluminum end is maintained at a temperature of 20°C and the copper end is at 121°C. The thermal conductivity of aluminum is 205 W/m∙K and of copper is 385 W/m∙K. Steady state has been reached, and no heat is lost through the well-insulated sides of the rod....
Two rods of the same length Rod 1 and diameter are made from different materials. The...
Two rods of the same length Rod 1 and diameter are made from different materials. The rods are Ti to connect two regions of different temperature so that energy will transfer through the rods by heat. They can be connected in series, as in Figure (e), or in parallel, as in Figure (b), In which case is the rate of energy transfer by heat larger? T. T. Rod1Rod 2 Rod 2 a)When the rods are in series. b) When the...
Consider two long, slender rods of the same diameter but different materials. One end of each...
Consider two long, slender rods of the same diameter but different materials. One end of each rod is attached to a base surface maintained at 100°C, while the surfaces of the rods are exposed to ambient air at 20°C. By traversing the length of each rod with a thermocouple, it was observed that the temperatures of the rods were equal at the positions XA = 0.15 m and XB = 0.25 m, where x is measured from the base surface....
Two rods of the same cross-sectional area are laid down in a line and joined where...
Two rods of the same cross-sectional area are laid down in a
line and joined where they meet. Rod B has twice the length of rod
A, and the thermal conductivity of the material that rod B is made
from is three times larger than the thermal conductivity of the
material that rod A is made from. The far end of rod A is
maintained at a constant temperature of 90 degrees Celsius, and the
far end of rod B...
Two identical cylindrical rods except one has a thermal conductivity k1 and the other k2. The...
Two identical cylindrical rods except one has a thermal conductivity k1 and the other k2. The rods are placed end to end between the two walls that are 1m apart and maintained at different temperatures, Tw and Tc. T3 the interface temperature, is halfway between the walls. If k2 = 0.5k1 and the heat flows only along the lengths of the rod determine the temperature T3. (Please calculate to final).
A copper rod and an aluminum rod of equal diameter are joined end to end in...
A copper rod and an aluminum rod of equal diameter are joined end to end in good thermal contact. The temperature of the free end of the copper rod is held constant at 100°C, and that of the far end of the aluminum rod is held at 0°C. If the copper rod is 0.80 m long, what must be the length of the aluminum rod so that the temperature at the junction is 50°C?
A copper rod and an aluminum rod of equal diameter are joined end to end in...
A copper rod and an aluminum rod of equal diameter are joined end to end in good thermal contact. The temperature of the free end of the copper rod is held constant at 100°C, and that of the far end of the aluminum rod is held at 0°C. If the copper rod is 0.74 m long, what must be the length of the aluminum rod so that the temperature at the junction is 50°C? __________________m
Two rods, one made of brass and the other made of copper, are joined end to...
Two rods, one made of brass and the other made of copper, are joined end to end. The length of the brass section is 0.160 m and the length of the copper section is 0.640 m. Each segment has cross-sectional area 0.00680 m². The free end of the brass segment is in boiling water and the free end of the copper segment is in an ice and water mixture, in both cases under normal atmospheric pressure. The sides of the...
Two rods of the same length Rod 1 and diameter are made from different materials. The rods are Ti to connect two regions of different temperature so that energy will transfer through the rods by heat. They can be connected in series, as in Figure (e), or in parallel, as in Figure (b), In which case is the rate of energy transfer by heat larger? T. T. Rod1Rod 2 Rod 2 a)When the rods are in series. b) When the...
Consider two long, slender rods of the same diameter but different materials. One end of each rod is attached to a base surface maintained at 100°C, while the surfaces of the rods are exposed to ambient air at 20°C. By traversing the length of each rod with a thermocouple, it was observed that the temperatures of the rods were equal at the positions XA = 0.15 m and XB = 0.25 m, where x is measured from the base surface....
Two rods of the same cross-sectional area are laid down in a
line and joined where they meet. Rod B has twice the length of rod
A, and the thermal conductivity of the material that rod B is made
from is three times larger than the thermal conductivity of the
material that rod A is made from. The far end of rod A is
maintained at a constant temperature of 90 degrees Celsius, and the
far end of rod B...
