6 10 pts. A shaft described as above in Problem 5 with the same known torque...

Question

Question

6 10 pts. A shaft described as above in Problem 5 with the same known torque at A and the same dimensions is comprised of seg

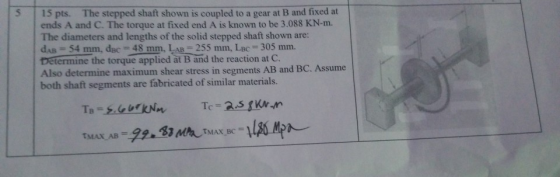

5 The stepped shaft shown is coupled to a gear at B and fixed at 15 pts. ends A and C. The torque at fixed end A is known to

6 ไ 10 pts. A shaft described as above in Problem 5 with the same known tongue at A and the same 60 GPa Determine the angir c

engineering Mechanical-Engineering

Answer 1

Answer #1

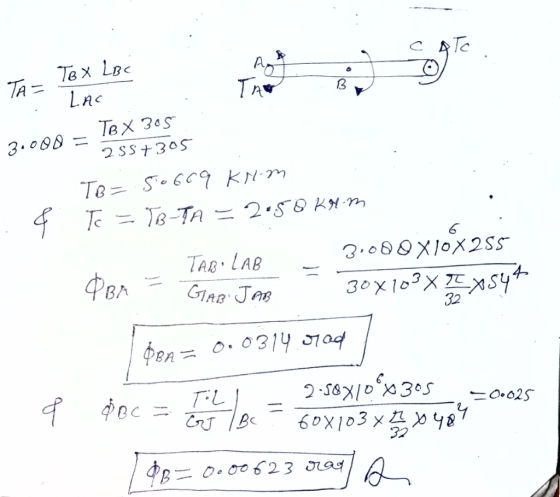

Using pure torque equation first calculate torque at b and c Tex LBc TA TA 13 6 TAR LAB 32 느0.625

Answer 2

Similar Homework Help Questions

1) Use equilibrium to solve for the unknown torque at Point C of the problem in...

1) Use equilibrium to solve for the unknown torque at Point C of the problem in the Appendix. Sum moments about the X-axis and given that the shaft is in equilibrium, determine the torque that must be applied at Point C. You can assume that the shaft is not connected to any other features although in a real-world application there would need to be bearing that keep the shaft from ‘wandering off.’ But note that there are no ‘forces’ applied...
