help me this exercise pls. Thank you
Homework Answers

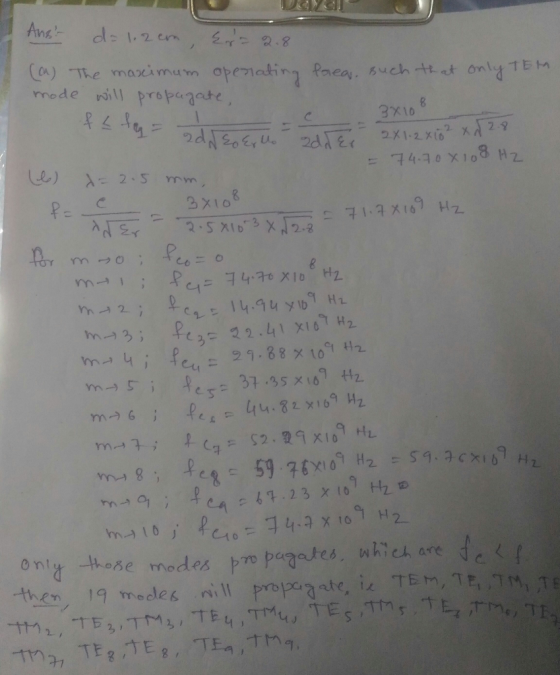

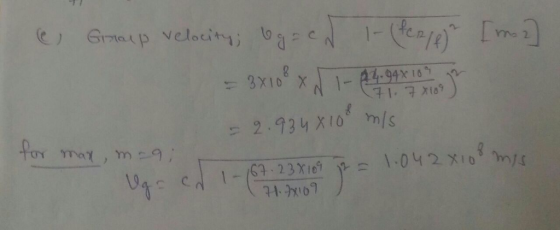

modes are found by multiplying the maximum freq of TEM mode with
different m values.Please start with 2nd image.
Add Answer to:
help me this exercise pls. Thank you

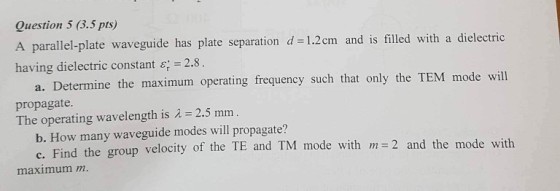

Question 5 (3.5 pts) A parallel-plate waveguide has plate...
