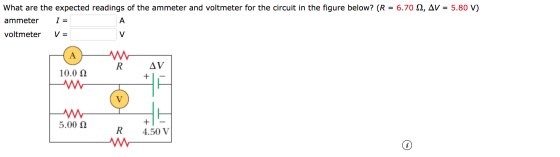

What are the expected readings of the ammeter and voltmeter for the circuit in the figure below? (R = 6.70 Ω, ΔV = 5.80 V)

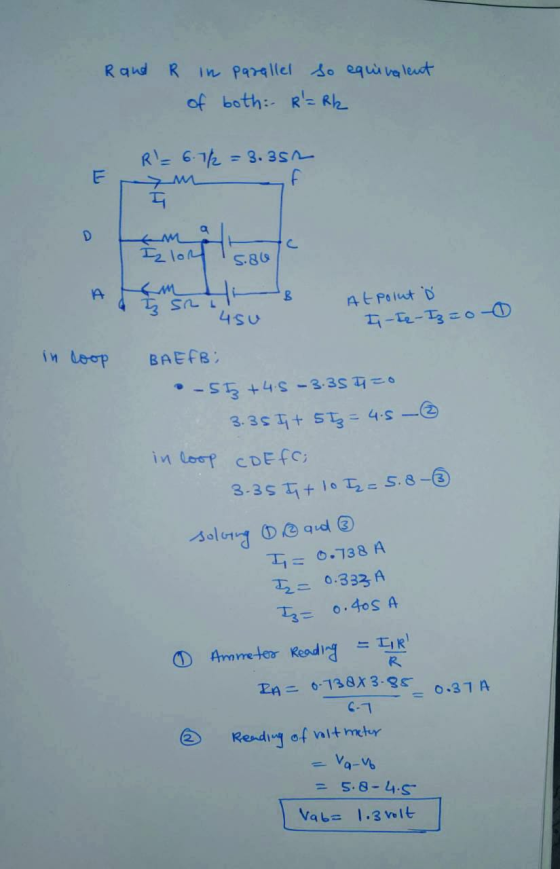

Homework Answers
Add Answer to:
What are the expected readings of the ammeter and voltmeter for
the circuit in the figure...
e m 1 18 A P065 M 10. What are the expected readings of the ammeter...
e m 1 18 A P065 M 10. What are the expected readings of the ammeter and ammeter I voltmeter V for the circuit in the figure below? (R 9.00 Ω. Δν-6.60V) 10.0 Ω 5.00 Ω R 4.50 V Type here to search
What are the expected readings of the following in the figure below? (R-8.40 Ω, AV-670 V)...
What are the expected readings of the following in the figure below? (R-8.40 Ω, AV-670 V) 10.0 Ω R 4.50 V (a) ideal ammeter mA (b) ideal voltmeter
What are the expected readings of the following in the figure below? (R = 8.60 Ω,...
What are the expected readings of the following in the figure
below? (R = 8.60 Ω, ΔV = 5.90 V)
(a) ideal ammeter
(b) ideal voltmeter
wat are the expected readings of the following in the figure below? (R = 9.300, AV...
wat are the expected readings of the following in the figure below? (R = 9.300, AV 6.70 V) w А 10.00 w R AV v w 5.000 R + 4.50V (a) Ideal ammeter (Give your answer in MA.) MA (b) ideal voltmeter (Give your answer in volts.) (c) What If? How would the readings in the ammeter (in mA) and voltmeter (in volts) change if the 4,50 V battery wat nipped so that its positive terminal was to the right?...
In the figure a voltmeter of resistance Rv = 480 s2 and an ammeter of resistance...
In the figure a voltmeter of resistance Rv = 480 s2 and an ammeter of resistance RA = 2.03 12 are being used to measure a resistance R in a circuit that also contains Ro = 100 1 and an ideal battery of emf ε = 12.0 V. Resistance R is given by Vli, where V is the potential across R and i is the ammeter reading. The voltmeter reading is V', which is V plus the potential difference across...
3. The circuit is as shown below. Assuming that the ammeter and voltmeter are ideal, means...
3. The circuit is as shown below. Assuming that the ammeter and voltmeter are ideal, means they don't affect the current in the circuit, so an ideal voltmeter has a very high resistance while an ideal ammeter has a negligible resistance. Voltmeter www 9.0 v 24 (a) What's the ammeter and voltmeter readings with the switch 's' open (0.15 A and 3.6 V (b) What's the ammeter and voltmeter readings with the switch 's' closed? (0.38 A and 9.0V) (e)...
For the circuit shown in the figure (ε-3.50 V, R-5.00 Ω), calculate the following quantities. 12,0...
For the circuit shown in the figure (ε-3.50 V, R-5.00 Ω), calculate the following quantities. 12,0 V 4,00 Ω 2.00 Ω (a) Calculate the current in the 2.00 Ω resistor. (Enter the magnitude.) mA (b) Calculate the potential difference between points a and b. The ammeter shown in the figure below reads 2.94 A. Find the following. 15.0 V 7.00 Ω 5.00 Ω 2.00 Ω ε (a) 1A Consider the following figure, where ε,-12 V and ε2-9.2 v. 10.011 6.00...
Consider the circuit shown below. All three batteries are ideal. The voltmeter and ammeter are also...
Consider the circuit shown below. All three batteries are ideal. The voltmeter and ammeter are also ideal. 7.00V 崇弓= 12.0V v) R 5.00 R2 6.00 Ω = 8.00 V A. What is the internal resistance of the batteries? B. What is the internal resistance of the voltmeter? C. what is the internal resistance of the ammeter? D. Based on your answers to questions A-C draw a simpler equivalent circuit (in the space above to the right of the original circuit)...
emf In the circuit above, the switch is closed for a short time. The readings are...
emf In the circuit above, the switch is closed for a short time. The readings are then recorded from the ammeter and the voltmeter and shown in the table below. Voltmeter Readings (V) Ammeter Readings (mA) 6.75 30 6.00 60 5.25 90 4.50 120 3.00 180 a) Draw a graph on graph paper of Voltmeter Readings against Ammeter Readings b) Find the following information from the graph: D) EMF of the battery b) Internal Resistance of the battery. c) A...
Exercise 2. An instrument used to measure current is called an ammeter. The ammeter is connected...
Exercise 2. An instrument used to measure current is called an ammeter. The ammeter is connected into a circuit in series in the loop in which the desired current reading is required. The resistance of an ideal ammeter is zero, and it is essential in real ammeters that the resistance of the instrument be very small compared to other resistances in the circuit. Why? R2 Ri a)-A meter to measure potential difference is called a voltmeter. To find the potential...
e m 1 18 A P065 M 10. What are the expected readings of the ammeter and ammeter I voltmeter V for the circuit in the figure below? (R 9.00 Ω. Δν-6.60V) 10.0 Ω 5.00 Ω R 4.50 V Type here to search
What are the expected readings of the following in the figure below? (R-8.40 Ω, AV-670 V) 10.0 Ω R 4.50 V (a) ideal ammeter mA (b) ideal voltmeter
What are the expected readings of the following in the figure
below? (R = 8.60 Ω, ΔV = 5.90 V)
(a) ideal ammeter
(b) ideal voltmeter
wat are the expected readings of the following in the figure below? (R = 9.300, AV 6.70 V) w А 10.00 w R AV v w 5.000 R + 4.50V (a) Ideal ammeter (Give your answer in MA.) MA (b) ideal voltmeter (Give your answer in volts.) (c) What If? How would the readings in the ammeter (in mA) and voltmeter (in volts) change if the 4,50 V battery wat nipped so that its positive terminal was to the right?...
In the figure a voltmeter of resistance Rv = 480 s2 and an ammeter of resistance RA = 2.03 12 are being used to measure a resistance R in a circuit that also contains Ro = 100 1 and an ideal battery of emf ε = 12.0 V. Resistance R is given by Vli, where V is the potential across R and i is the ammeter reading. The voltmeter reading is V', which is V plus the potential difference across...
3. The circuit is as shown below. Assuming that the ammeter and voltmeter are ideal, means they don't affect the current in the circuit, so an ideal voltmeter has a very high resistance while an ideal ammeter has a negligible resistance. Voltmeter www 9.0 v 24 (a) What's the ammeter and voltmeter readings with the switch 's' open (0.15 A and 3.6 V (b) What's the ammeter and voltmeter readings with the switch 's' closed? (0.38 A and 9.0V) (e)...
For the circuit shown in the figure (ε-3.50 V, R-5.00 Ω), calculate the following quantities. 12,0 V 4,00 Ω 2.00 Ω (a) Calculate the current in the 2.00 Ω resistor. (Enter the magnitude.) mA (b) Calculate the potential difference between points a and b. The ammeter shown in the figure below reads 2.94 A. Find the following. 15.0 V 7.00 Ω 5.00 Ω 2.00 Ω ε (a) 1A Consider the following figure, where ε,-12 V and ε2-9.2 v. 10.011 6.00...
Consider the circuit shown below. All three batteries are ideal. The voltmeter and ammeter are also ideal. 7.00V 崇弓= 12.0V v) R 5.00 R2 6.00 Ω = 8.00 V A. What is the internal resistance of the batteries? B. What is the internal resistance of the voltmeter? C. what is the internal resistance of the ammeter? D. Based on your answers to questions A-C draw a simpler equivalent circuit (in the space above to the right of the original circuit)...
emf In the circuit above, the switch is closed for a short time. The readings are then recorded from the ammeter and the voltmeter and shown in the table below. Voltmeter Readings (V) Ammeter Readings (mA) 6.75 30 6.00 60 5.25 90 4.50 120 3.00 180 a) Draw a graph on graph paper of Voltmeter Readings against Ammeter Readings b) Find the following information from the graph: D) EMF of the battery b) Internal Resistance of the battery. c) A...
Exercise 2. An instrument used to measure current is called an ammeter. The ammeter is connected into a circuit in series in the loop in which the desired current reading is required. The resistance of an ideal ammeter is zero, and it is essential in real ammeters that the resistance of the instrument be very small compared to other resistances in the circuit. Why? R2 Ri a)-A meter to measure potential difference is called a voltmeter. To find the potential...
