Question 9: Circuit Analysis R4 R2 W R1 V6 R5 R3 (+) R7 8 2. If...

Question

Question

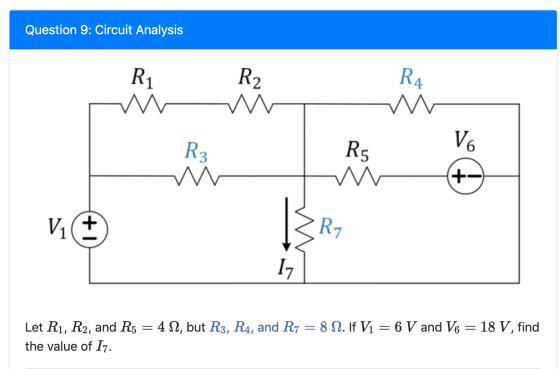

Question 9: Circuit Analysis R4 R2 W R1 V6 R5 R3 (+) R7 8 2. If Vi 6 V and V6 18 V, find Let Ri, R2, and R5 4 0, but R3, R4,

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

R1 R5 R3 R6 R2 R4 R7 AMPS (A) OHMS (S2) WATTS (W) VOLTS (V) ET-...

R1 R5 R3 R6 R2 R4 R7 AMPS (A) OHMS (S2) WATTS (W) VOLTS (V) ET- IT 4A R1 .000084012 R2-120,000m2P2 R3- 21,500m2 R4 = .0385kf2 Rs= 150Ω 12- 13 = 15 = P6- R7 60Ω
vi Ri ii V3 R4 V5 Rs jis R7 In the circuit, Vg = 126 V,...

vi Ri ii V3 R4 V5 Rs jis R7 In the circuit, Vg = 126 V, R2 = 9 Ohm, R3 = 7 Ohm, R4 = 4 Ohm, R5 = 29 Ohm, R6 = 10 Ohm and R7 = 7 Ohm. The current i2 = 3 A. (A) What is the resistance R1? (unit: Ohm) 23.04Ohm Submit Answer Incorrect. Tries 2/5 Previous Tries (B) What is the power supplied by the voltage source Vg into the circuit? (unit: W) Submit...
Given the following circuit with V = 36 Volts, R1 = 9 Ohms, R2 = 9...

Given the following circuit with V = 36 Volts, R1 = 9 Ohms, R2 = 9 Ohms, R3 = 16 Ohms, R4 = 3 Ohms, R5 = 6 Ohms, R6 = 11 Ohms, R7 = 3 Ohms, and R8 = 9 Ohms, what is the equivalent resistance of the entire circuit in Ohms? Given the following circuit with V = 36 Volts, R1 = 9 Ohms, R2 = 9 Ohms, R3 = 16 Ohms, R4 = 3 Ohms, R5 =...

R1-12 R3- 22 R2 122 R4 -62 R5 32 R7 -62 Circle the nodes on the...

R1-12 R3- 22 R2 122 R4 -62 R5 32 R7 -62 Circle the nodes on the diagram, and label each node with a unique LETTER. Note: Terminals A and B are not considered nodes. 1. 2. How many nodes are in the circuit? How many branches are in the circuit? 3. 4. How many loops are in the circuit?
Question 8 (1 point) R2 W R3 In the following circuit, R1=14 Ohm, R2=4" 1.4 Ohm,...

Question 8 (1 point) R2 W R3 In the following circuit, R1=14 Ohm, R2=4" 1.4 Ohm, R3=41.4 Ohm, R4-2 1.4 Ohm, R5-14 Ohm and E= 14 Volt. Calculate the current in R5 resistor. (Picture File-Ohm-2.jpg] Your Answer: Answer units Question 9 (1 point) The equivalent resistance of the following circuit is 6.72 ohm. R1= 2.92 ohm, R2-2 2.92 ohm, R3=3*2.92. What is R4? [Picture File - Ohm-4.jpg] Your Answer: Answer units
А R1 M R3 R2 R5 R4 w B Question 1 (20 points) You are told...

А R1 M R3 R2 R5 R4 w B Question 1 (20 points) You are told that: V = 40V, R1 = 202, R2 = 60, R3 = 202, R4 = 422, R5 = 50. (a)Create an ohm table and find the voltage drop and current across all resistors. (15 points) (b)Find the electric potential difference between point A and point B. (5 points)

R2 R1 R3 R5 M R4 HE In the following circuit, R1=3 Ohm, R2=4* 4.9 Ohm,...

R2 R1 R3 R5 M R4 HE In the following circuit, R1=3 Ohm, R2=4* 4.9 Ohm, R3=4* 4.9 Ohm, R4=2* 4.9 Ohm, R5=3 Ohm and E= 3 Volt. Calculate the current in R5 resistor. [Picture File- Ohm-2.jpg) Your Answer: AL Answer units
Find Req for the circuit shown below. R7 tk R1 1k R2 1k RO w Ik...

Find Req for the circuit shown below. R7 tk R1 1k R2 1k RO w Ik Red R4 1k RS Tk R3 1k RS w 1k Find Re, between A and B for the circuit shown below. R4 1k R1 4k R3 6k R7 w w R2 2k For the given circuit below, find the values of in, i2, i3, i4, and is. 392 iz i2 200 V 492 12114201
Consider the circuit shown where V=30 Volts and R1 = R2 = R3 = R4 =...

Consider the circuit shown where V=30 Volts and R1 = R2 = R3 = R4 = R5 = R6 = 5.2. Riş V R2 W-WWW R4 N WW-WW RO R3 A) Find the equivalent resistance of the circuit. Req Ω B) Find the current through the battery. I = A

Question 1. a) Choose random value for each R1,R2,R3,R4 and R5 ranging from 5 to 150....

Question 1. a) Choose random value for each R1,R2,R3,R4 and R5 ranging from 5 to 150. b) Use any method determine io and Vo in the circuit as in Figure 1. c) If 10V voltage source is replaced with 30V voltage source, what is the new values of i, and Vo in the the same circuit with the same value of resistance? (use linearity) R1 R3 R2 i. + 10V R4 V R5
