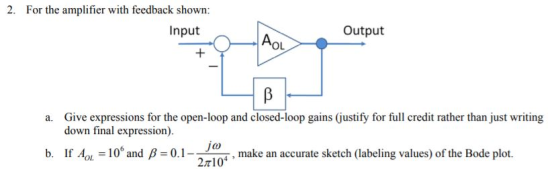

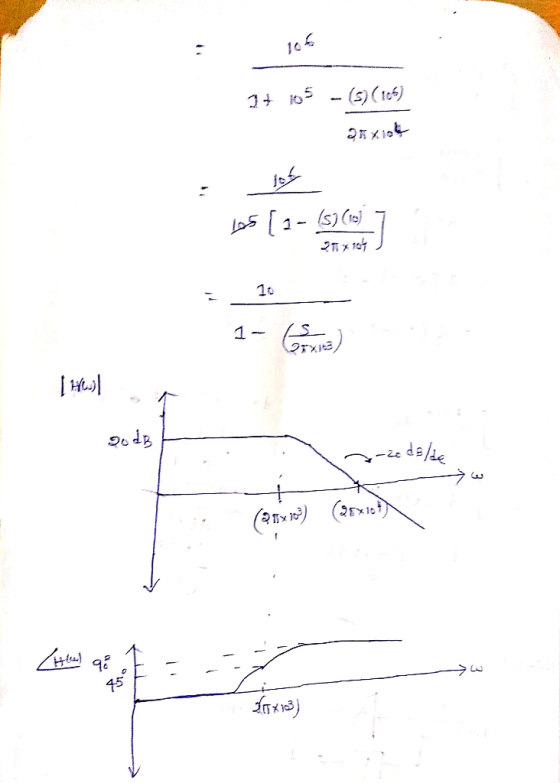

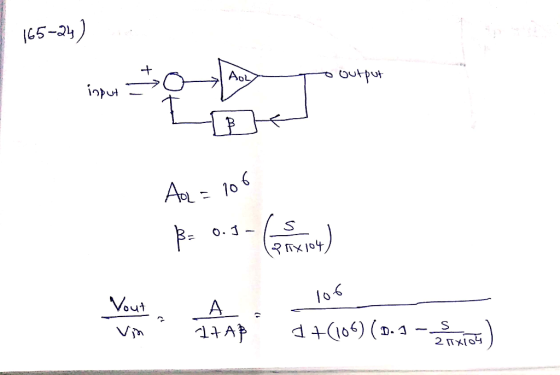

2. For the amplifier with feedback shown: Output Input OL Give expressions for the open-loop and...
A negative feedback closed-loop amplifier employs an internal open-loop basic amplifier with input and output resistances each of 1k and gain A=1000V/V. The closed-loop amplifier has a feedback factor of =0.1V/V. Sketch the closed-loop feedback amplifier block diagram. For the closed-loop amplifier, find the gain, Af, the input resistance, Rif, and the output resistance, Rof.
IV) Shown below in figure A is a feedback circuit and the Bode plot for Ael. In figure B a pole has been added to the circuit to make it stable with a 45° phase margin. A) For figure A draw the Bode plot of Aol (as given) and the loop gain on the same plot. B) FIND RFOR 45' PHASE MARGIN É DRAW THE LOOP SAIN C) What is the closed loop gain at DC. NIN lou HT 0.1...
Question 4: Figure 4 In the series-shunt feedback amplifier shown in Figure 4, the transistors are biased with ideal current-sources 1, 0.1mA, 12 1mA, the devices operate with VE0.7V and t = 100. The input signal V, has a zero DC component. Resistances are (a) If the open loop gain is large, what do you expect the closed-loop gain A, -V/V, to be? Give both an expression and its approximate value (b) Find the DC emitter current in each of...
2. Aunity feedback system is shown in the Figure (a) below has open-loop poles at land apero at The root locus plot for the open-loop transfer function for K> is as shown in Figure (b) below. Determine the open-loop transfer function (in) closed-loop transfer function(i) characteristic equation and the liv the break-in point. (4+4 +2.5) (vill the pain K is chosen as 5 will the closed-loop system have an oscillatory response to a step input? Justify your answer mathematically(5) 11
Spring 2019 3. Given a closed-loop control system with unity feedback is shown in the block diagram. G(s) is the open-loop transfer function, and the controller is a gain, K. 1. (20) Calculate the open-loop transfer function tar →Q--t G(s) (10) Calculate the steady-state error to a step input of the open-loop system. 7. (in Bode Form) from the Bode plot. (10) Calculate the shortest possible settling time with a percentage overshoot of 5% or less. 8. 2. (10)Plot the...
Problem 3. For the above feedback system, the bode diagram of the stable open-loop transfer function G(s) is plotted below: (a) Find the approximate gain margin and phase margin of the system? Is the closed-loop system stable? (b) Suppose in the closed-loop system (s) is replaced with KG(8). What is the range of K so that the closed-loop system is stable? (C) Determine the system type of G(s). (d) Estimate the steady-state errors of the closed-loop system for tracking the...
A unity feedback control system has the open loop TF as: \(G(s)=\frac{K(s+a+1)(s+b)}{s(s+a)(s+a+2)}\)a) Find analytical expressions for the magnitude and phase response for \(\mathrm{G}(\mathrm{s}) .\left[K=K_{1}\right]\)b) Make a plot of the log-magnitude and the phase, using log-frequency in rad/s as the ordinate. \(\left[K=K_{1}\right]\)c) Sketch the Bode asymptotic magnitude and asymptotic phase plots. \(\left[K=K_{1}\right]\)d) Compare the results from \((a),(b)\), and \((c) .\left[K=K_{1}\right]\)e) Using the Nyquist criterion, find out if system is stable. Show your steps. \(\left[K=K_{1}\right]\)f) Using the Nyquist criterion, find the range...
Due Date: April 20, 2 Problem 2: Consider a unity-feedback control system with the following open-loop transfer function: K G(s)H(s) = s(s2 + 4s + 8) 1. Sketch the root-locus plot. 2. IfK 2, where are the closed-loop poles located? 3. If x = 0.5, where are the closed-loop poles located?
2. Given a unity feedback system with open-loop transfer function s+40s-I) a) For K-1, derive the expressions for the real and imaginary parts of G(jo). b) What happen to the real and imaginary parts of G(jo) for ω 0 and for Are there values of ω that either the real or imaginary part goes to zero? If not, compute Gijo) for some ovalue, say,, or 2, to help you sketch the Polar plot of Gja). c) d) Use Matlab to...
Consider the unity-feedback system shown below: R(s) E(s) input: r(t), output: y(t) C(s) P(s) error: e() r(t) y(t) closed-loop transfer-function: Hyr(sD t the closed-loop transfer-function be Hyr(s) Y (s) R(s) Let the transfer-function of the plant be P(s) 10 s (s 1) (s 5) The open-loop transfer-function is G(s) P(s) C(s) DESIGN OBJECTIVES: Find a controller C(s) such that the following are satisfied i) The closed-loop system is stable. ii) The steady-state error ess due to a unit-ramp input r(t)...
