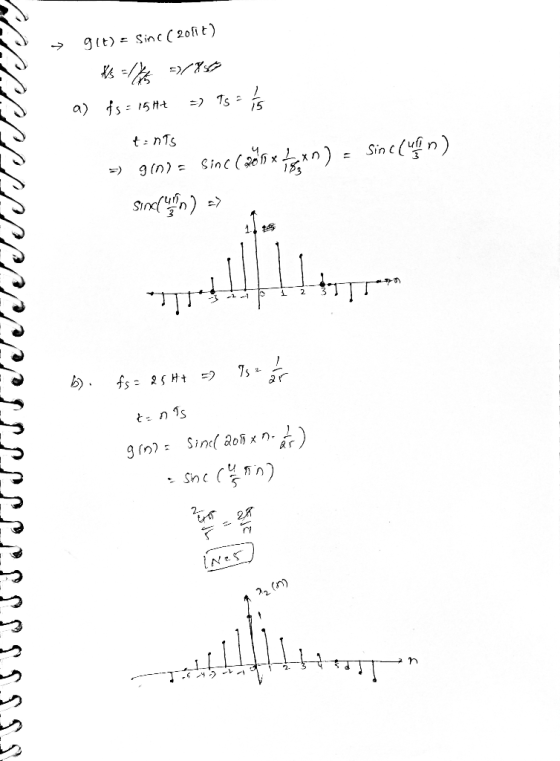

2. a) A signal, g(t)-sinc(20nt), is uniformly sampled at a rate of (i) 15 Hz, (ii)...
solve it using matlab.. show the code 6.1-4 A signal g(t) = sinca (571) is sampled...
solve it using matlab.. show the code

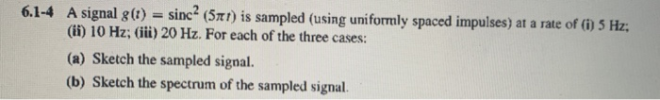

6.1-4 A signal g(t) = sinca (571) is sampled (using uniformly spaced impulses) at a rate of (1) 5 Hz, (ii) 10 Hz; (ii) 20 Hz. For each of the three cases: (a) Sketch the sampled signal. (b) Sketch the spectrum of the sampled signal
Q1) Given an analog signal X(t) = 3 cos (2π . 2000t) + 2 cos (2π...
Q1) Given an analog signal X(t) = 3 cos (2π . 2000t) + 2 cos (2π . 5500t) sampled at a rate of 10,000 Hz, a. Sketch the spectrum of the sampled signal up to 20 kHz; b. Sketch the recovered analog signal spectrum if an ideal lowpass filter with a cutoff frequency of 4 kHz is used to filter the sampled signal in order to recover the original signal ; c. Determine the frequency/frequencies of aliasing noise . Q2)...
Question 2 Consider the natural sampling applied to a signal, x(t) = sinc"5 The signal is sampled (multiplied) by a periodic (rectangular) pulse train which is shown in Figure (b). Assume the...
Question 2 Consider the natural sampling applied to a signal, x(t) = sinc"5 The signal is sampled (multiplied) by a periodic (rectangular) pulse train which is shown in Figure (b). Assume the period, To-0.05s. πt as shown in Figure (a) Pr(t) x(t) XFO 057 Pt(t) 1 mark (a) Determine and sketch the spectrum of the signal x(t). Determine the bandwidth of x(t), B. 1 mark(b) Sketch the sampled signal, E(t) 2 marks () Derive and sketch the spectrum of the...
A signal f(t) sinc (200 t) is sampled by periodic pulse train pr(t) resented in Fig. P5.1-6. Find and sketch the spectrum of the sampled signal. Explain if you 0.8 ms 4 ms 8 ms Fig. P5.1-6 will be ab...
A signal f(t) sinc (200 t) is sampled by periodic pulse train pr(t) resented in Fig. P5.1-6. Find and sketch the spectrum of the sampled signal. Explain if you 0.8 ms 4 ms 8 ms Fig. P5.1-6 will be able to reconstruct f(t) from these samples. If the sampled signal is passed through an ideal lowpass filter of bandwidth 100 Hz and unit gain, find the filter output. What is the filter output if its bandwidth is B Hz, where...
5.1-7 Consider a bandlimited signal g1(C) whose Fourier transform is (a) If g1(t) is uniformly sa...
5.1-7 Consider a bandlimited signal g1(C) whose Fourier transform is (a) If g1(t) is uniformly sampled at the rate of fs400 Hz, show the resulting spectrum of the ideally sampled signal. (b) If we attempt to reconstruct gi (t) from the samples in Part (a), what will be the recovered analog signal in both time and frequency domains? (c) Determine another analog signal G2(f) in frequency domain such that its samples at = 400 Hz will lead to the same...
2.5. Given an analog signal x(t)5cos(2T 2, 5001) + 2cos(2T 4, 5001), for t2 0 sampled...
2.5. Given an analog signal x(t)5cos(2T 2, 5001) + 2cos(2T 4, 5001), for t2 0 sampled at a rate of 8,000 Hz, a. sketch the spectrum of the sampled signal up to 20 kHz; b. sketch the recovered analog signal spectrum if an ideal lowpass filter with a cutoff frequency of 4 kHz is used to filter the sampled signal in order to recover the original signal; c. determine the frequneuencis f aliasing noise.
Question 1: (Sampling and Aliasing Effeet) (25 Marks) The given analog signal x(t)--sin(16xt)+ sin(11xt)+ sin (5nt), where t is in milliseconds, is sampled at a rate of 12kHz. The resulting sampl...
Question 1: (Sampling and Aliasing Effeet) (25 Marks) The given analog signal x(t)--sin(16xt)+ sin(11xt)+ sin (5nt), where t is in milliseconds, is sampled at a rate of 12kHz. The resulting samples are immediately reconstructed by an ideal reconstructor. a. Find and sketch the spectrum of x(t) versus Ω. b. Find and sketch the spectrum of the sampled signal versus o. c. Determine the analog signal x (t) at the output of the reconstructor. d. Prove the x(0) and x(t) having...
1. Given the spectrum X(f) of an analog signal x(t), sketch the spectrum of its sampled...
1. Given the spectrum X(f) of an analog signal x(t), sketch the spectrum of its sampled version x[n], assuming a sampling rate of 50, 40, and 30 Hz. (a) X()=rect(f/40) (b) X()=tri(f/20)
TO 2, the signal m(t) 20 sinc ( 400't) is an input to a ring modulator...
TO 2, the signal m(t) 20 sinc ( 400't) is an input to a ring modulator with carrier frequency 10 fm where fm is the maximum frequency of m(t)} (a) Draw the block diagram of the used ring modulator and write down equation of the output signal of the modulator (b) Sketch spectrum of the modulated transmitted AM signal (c) Sketch the corresponding VSB AM spectrum with 25% of visitgal band relative to the other band.
TO 2, the signal...
An analog signal is given as below x(t) = 10sin 4rtt The signal is sampled by...
An analog signal is given as below x(t) = 10sin 4rtt The signal is sampled by two different frequencies f, = 1Hz, f, = 10Hz respectively, and the output are yı, Yz. (i) Sketch signal x(t) in the time domain. (3 marks) (ii) Sketch frequency spectrum of x(t). (3 marks) (iii) After sampling, the continuous signal is converted to a discrete signal. Draw the two discrete signals Yı, Y2: (4 marks) (iv) Discuss whether f1, f, can successfully sample the...
solve it using matlab.. show the code
6.1-4 A signal g(t) = sinca (571) is sampled (using uniformly spaced impulses) at a rate of (1) 5 Hz, (ii) 10 Hz; (ii) 20 Hz. For each of the three cases: (a) Sketch the sampled signal. (b) Sketch the spectrum of the sampled signal
Question 2 Consider the natural sampling applied to a signal, x(t) = sinc"5 The signal is sampled (multiplied) by a periodic (rectangular) pulse train which is shown in Figure (b). Assume the period, To-0.05s. πt as shown in Figure (a) Pr(t) x(t) XFO 057 Pt(t) 1 mark (a) Determine and sketch the spectrum of the signal x(t). Determine the bandwidth of x(t), B. 1 mark(b) Sketch the sampled signal, E(t) 2 marks () Derive and sketch the spectrum of the...
A signal f(t) sinc (200 t) is sampled by periodic pulse train pr(t) resented in Fig. P5.1-6. Find and sketch the spectrum of the sampled signal. Explain if you 0.8 ms 4 ms 8 ms Fig. P5.1-6 will be able to reconstruct f(t) from these samples. If the sampled signal is passed through an ideal lowpass filter of bandwidth 100 Hz and unit gain, find the filter output. What is the filter output if its bandwidth is B Hz, where...
5.1-7 Consider a bandlimited signal g1(C) whose Fourier transform is (a) If g1(t) is uniformly sampled at the rate of fs400 Hz, show the resulting spectrum of the ideally sampled signal. (b) If we attempt to reconstruct gi (t) from the samples in Part (a), what will be the recovered analog signal in both time and frequency domains? (c) Determine another analog signal G2(f) in frequency domain such that its samples at = 400 Hz will lead to the same...
2.5. Given an analog signal x(t)5cos(2T 2, 5001) + 2cos(2T 4, 5001), for t2 0 sampled at a rate of 8,000 Hz, a. sketch the spectrum of the sampled signal up to 20 kHz; b. sketch the recovered analog signal spectrum if an ideal lowpass filter with a cutoff frequency of 4 kHz is used to filter the sampled signal in order to recover the original signal; c. determine the frequneuencis f aliasing noise.
Question 1: (Sampling and Aliasing Effeet) (25 Marks) The given analog signal x(t)--sin(16xt)+ sin(11xt)+ sin (5nt), where t is in milliseconds, is sampled at a rate of 12kHz. The resulting samples are immediately reconstructed by an ideal reconstructor. a. Find and sketch the spectrum of x(t) versus Ω. b. Find and sketch the spectrum of the sampled signal versus o. c. Determine the analog signal x (t) at the output of the reconstructor. d. Prove the x(0) and x(t) having...
1. Given the spectrum X(f) of an analog signal x(t), sketch the spectrum of its sampled version x[n], assuming a sampling rate of 50, 40, and 30 Hz. (a) X()=rect(f/40) (b) X()=tri(f/20)
TO 2, the signal m(t) 20 sinc ( 400't) is an input to a ring modulator with carrier frequency 10 fm where fm is the maximum frequency of m(t)} (a) Draw the block diagram of the used ring modulator and write down equation of the output signal of the modulator (b) Sketch spectrum of the modulated transmitted AM signal (c) Sketch the corresponding VSB AM spectrum with 25% of visitgal band relative to the other band.
TO 2, the signal...
An analog signal is given as below x(t) = 10sin 4rtt The signal is sampled by two different frequencies f, = 1Hz, f, = 10Hz respectively, and the output are yı, Yz. (i) Sketch signal x(t) in the time domain. (3 marks) (ii) Sketch frequency spectrum of x(t). (3 marks) (iii) After sampling, the continuous signal is converted to a discrete signal. Draw the two discrete signals Yı, Y2: (4 marks) (iv) Discuss whether f1, f, can successfully sample the...
