Question

Yes

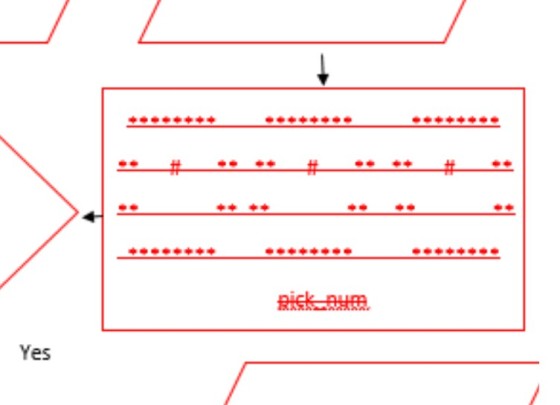

where does this fit in to the corrected flowchart? this has to be included but,wherein the corrected one does it fit in?

Answer 1

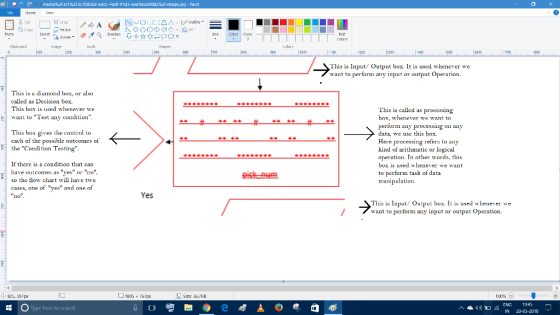

ml.inC" media%2F3c1%간3c10d36d-edC5-4adt-gld pq - Paint File Home Vew S Calar | Color Clipboar ouls Shapes ulurs This is Input/ Output box. It is used whenever we want to perform any input or output Operation. This is a diamond box, or also called as Decision box This box is used whenever we want to "Test ay condition" This is called as processing box, whenever we want to perform any processing on any data, we use this box Here processing refers to any kind of arithmatic or logical operation. In other words, this box is used whenever we want to perform task of dlata maniplation This box gives the control to cach of the possible outcomes of the "Condition Testing" If therc is a condition that can have outeomes as "yes" or "no", so the flow chart will have two cases, one of ves and one of Yes This is Input Output box. It is used whenever we want to perform any input or output Opcration. 小825.99/px 1895 x /b/px Size: 36KB -0 Type here to search IN 20-03-2018

If there is anything that you do not understand, then please mention it iun the comments section.

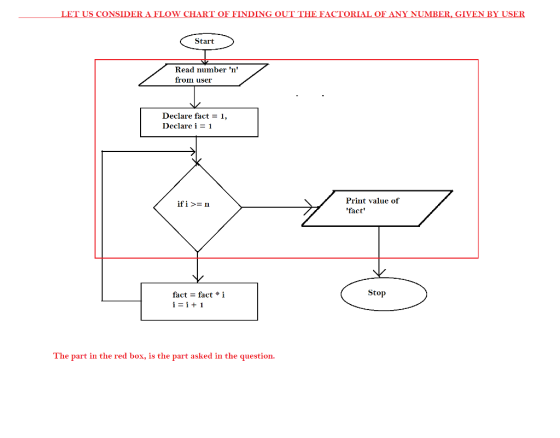

LET US CONSIDER A FLOW CHART OF FINDING OUT THE FACTORIAL OF ANY NUMBER, GIVEN BY USER Start Read number 'n' from user Declare fact Declarei-1 Print value of fact' ifin Stop fact-fact * i i=i+1 The part in the red box, is the part asked in the question.
