Homework Answers
Add Answer to:

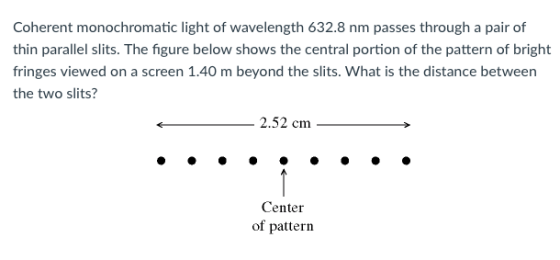

Coherent monochromatic light of wavelength 632.8 nm passes through a pair of thin parallel slits. The...
Coherent light of wavelength 670 nm passes through two parallel slits separated by 0.50 mm. The...
Coherent light of wavelength 670 nm passes through two parallel slits separated by 0.50 mm. The interference pattern is observed on a screen 75 cm from the slits. If the width of each slit is 0.10 mm, how far from the central bright fringe is the first missing fringe? a. 5.0 mm b. 10 mm c. 2.5 mm d. 7.5 mm
Coherent light with wavelength 599 nm passes through two very narrow slits with separation of 20...
Coherent light with wavelength 599 nm passes through two very narrow slits with separation of 20 μm, and the interference pattern is observed on a screen located at a distance of 3.0 m from the slits. Where will the second order dark fringe above the center of central bright fringe will form?
Coherent light of wavelength 670 nm passes through two parallel slits separated by 0.25 mm. The...
Coherent light of wavelength 670 nm passes through two parallel slits separated by 0.25 mm. The interference pattern is observed on a screen 90 cm from the slits. If the width of each slit is 0.08 mm, (a) what is the order of the first bright fringe missing from the pattern? (b)how far from the cbf is this missing fringe?
Light from a coherent monochromatic light source with a wavelength of 5.00 ✕ 102 nm is...
Light from a coherent monochromatic light source with a wavelength of 5.00 ✕ 102 nm is incident on (and perpendicular to) a pair of slits separated by 0.320 mm. An interference pattern is formed on a screen 1.90 m from the slits. Find the distance (in mm) between the first and second dark fringes of the interference pattern. it is 5.00x10^2 nm
Coherent light of wavelength 548 nm passes through two slits. In the resulting interference pattern on...
Coherent light of wavelength 548 nm passes through two slits. In the resulting interference pattern on a screen 4.6 m away, adjacent bright fringes are 5.60 mm apart. What is the separation between the 2nd and the 3rd order maxima for light with a wavelength of 650 nm?
Q2. Monochromatic laser light of frequency 5.20 × 1014 Hz is shown on a pair of thin...
Q2. Monochromatic laser light of frequency 5.20 × 1014 Hz is shown on a pair of thin parallel slits, and the pattern is viewed on a screen 1.20 m away. The 4th bright fringes occur at ±2.12 cm on either side of the central bright fringe. The entire apparatus is now immersed in a transparent liquid. When the experiment is repeated, the 4th bright fringes now occur at ±1.43 cm from the centre. (a) How far apart are the slits? (b)...
Coherent light of wavelength 500 nm passes through two slits that are placed a distance R...
Coherent light of wavelength 500 nm passes through two slits that are placed a distance R from a screen. The slits are 0.05 mm apart. The first dark fringe occurs 1 cm from the central bright fringe. What is the distance R? [A] 0.5 m [B] 0.667 m [C] 1 m [D] 2 m
A diffraction experiment involving two thin parallel slits yields the pattern of closely spaced bright and...
A diffraction experiment involving two thin parallel slits yields the pattern of closely spaced bright and dark fringes shown in the figure (Figure 1). Only the central portion of the pattern is shown in the figure. The bright spots are equally spaced at 1.53 mm center to center (except for the missing spots) on a screen 2.20 m from the slits. The light source was a He-Ne laser producing a wavelength of 632.8 nm. How wide is each one? a...
A diffraction experiment involving two thin parallel slits yields the pattern of closely spaced bright and...
A diffraction experiment involving two thin parallel slits yields the pattern of closely spaced bright and dark fringes shown in the following figure. Only the central portion of the pattern is shown in the figure. The bright spots are equally spaced at d = 1.57 mm center to center (except for the missing spots) on a screen 2.15 m from the slits. The light source was a He-Ne laser producing a wavelength of 632.8 nm. (a) How far apart are...
Coherent light that contains two wavelengths 670 nm (red) and 470 nm (blue) passes through two...
Coherent light that contains two wavelengths 670 nm (red) and 470 nm (blue) passes through two parallel slits separated by 0.60 mm. The interference pattern is observed on a screen 90.0 cm from the slits. In the resulting interference pattern, find the distance between the 3rd bright fringe above the central bright fringe for red and the 3rd dark fringe below the central bright fringe for blue
Coherent light of wavelength 670 nm passes through two parallel slits separated by 0.25 mm. The interference pattern is observed on a screen 90 cm from the slits. If the width of each slit is 0.08 mm, (a) what is the order of the first bright fringe missing from the pattern? (b)how far from the cbf is this missing fringe?
Coherent light of wavelength 548 nm passes through two slits. In the resulting interference pattern on a screen 4.6 m away, adjacent bright fringes are 5.60 mm apart. What is the separation between the 2nd and the 3rd order maxima for light with a wavelength of 650 nm?
Coherent light that contains two wavelengths 670 nm (red) and 470 nm (blue) passes through two parallel slits separated by 0.60 mm. The interference pattern is observed on a screen 90.0 cm from the slits. In the resulting interference pattern, find the distance between the 3rd bright fringe above the central bright fringe for red and the 3rd dark fringe below the central bright fringe for blue
