An alongshore current and breaker wave height are measured as 3.4 ft/s and 6ft, respectively. For...

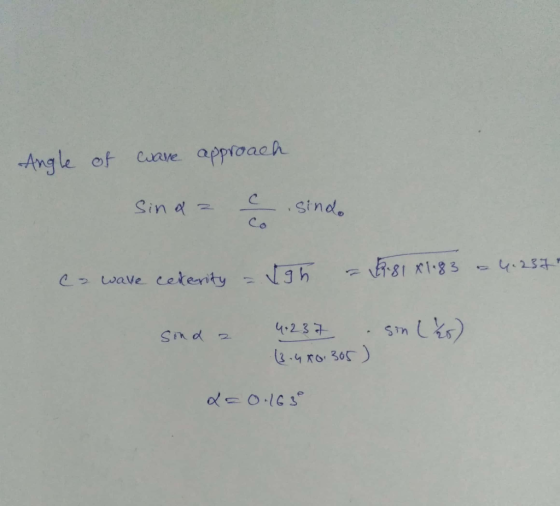

An alongshore current and breaker wave height are measured as 3.4 ft/s and 6ft, respectively. For a beach slope of 1:25 with straight and parallel depth contours, determine the angle ofwave approach at the breaker zone.
Homework Answers
Add Answer to:
An alongshore current and breaker wave height are measured as
3.4 ft/s and 6ft, respectively. For...
