Question

A) Given For the circuit: IK 1Ω 4A B) Determine 1) 2) 3) 4) 5) 6) 7) Sketch of the circuit with all currents information Sketch of the circuit with all voltages information. The power of the 2V independent voltage source. Indicate if it is active or passive element. The power of the 2ix dependent current source. Indicate if it is active or passive element. The power of the 1 Ω resistor. Indicate if it is active or passive element. The power of the 4A independent current source. Indicate if it is active or passive element. Verify the Energy Conservation Law Evaluation Criteria Rubric for Reinforcement Problem # 2 Activities Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 Step 7 Points Describe all the formulas, techniques and 1.0 points 1.0 points 20.0 points ures you used uare all the answers. Include their sical dimensions TOTAL

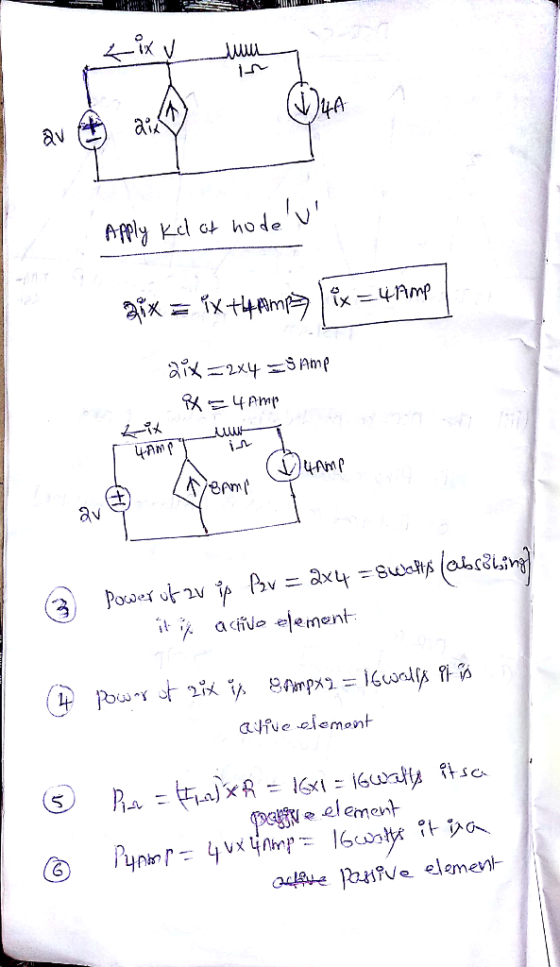

Answer 1
