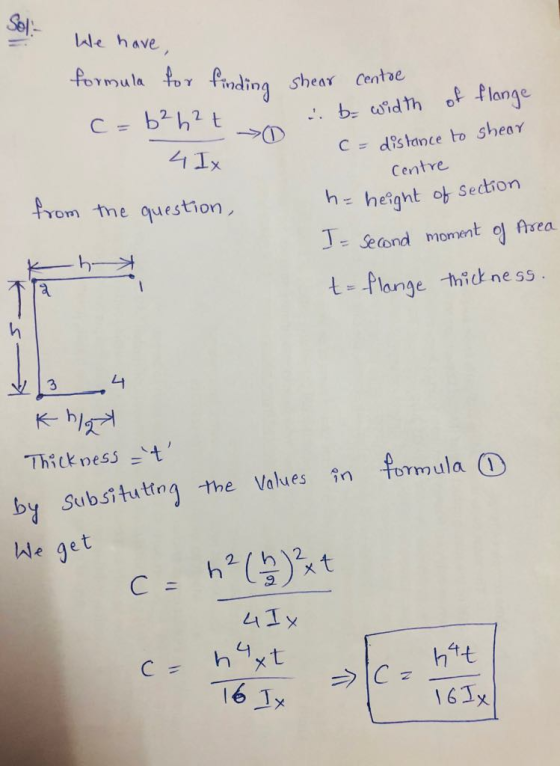

Thickness is "t", all over the body. Find the shear center.
Thickness is "t", all over the
body. Find the shear center.
Homework Answers
#7. Locate the shear center for the symmetric cross-section with constant thickness t4mm. 4Dmm 30m
#7. Locate the shear center for the symmetric cross-section with constant thickness t4mm. 4Dmm 30m
Q6) Derive an expression and locate the shear center for the beam cross section shown in Fig.2 .The walls of the cross...
Q6) Derive an expression and locate the shear center for the beam cross section shown in Fig.2 .The walls of the cross section have constant thickness t- 2.5 וון (IDI 50 mm. 下 t 100 mm 50 mm Fig.2 Q.6
Q6) Derive an expression and locate the shear center for the beam cross section shown in Fig.2 .The walls of the cross section have constant thickness t- 2.5 וון (IDI 50 mm. 下 t 100 mm 50 mm Fig.2 Q.6
Derive the moment of inertia of a hollow sphere with thickness, t, around the center.
Derive the moment of inertia of a hollow sphere with thickness, t, around the center.
Determine the location of the shear center "e" I (16/3)a*t 2a SHEAR FLOW ON THE HORIZONTAL...
Determine the location of the shear center "e" I (16/3)a*t 2a SHEAR FLOW ON THE HORIZONTAL FLANGE IS NOT SHOWN
2.- Link AB, whose width is b = 2 "and its thickness t = 1/8", is...
2.- Link AB, whose width is b = 2 "and its thickness t = 1/8",
is used to support the end of a horizontal beam. If it is known
that the average normal stress in the link is - 20 ksi, and that
the average shear stress in each of the pins is 12 ksi, Find:
a) the diameter d of the pins,
b) the average stress of support on the link.
Make the free body diagram and explain step...
2. Determine the constant thickness of the rectangular tube if the average shear stress is not...
2. Determine the constant thickness of the rectangular tube if the average shear stress is not to exceed 10 ksi when a torque of T = 75kip.in is applied to the tube. 3 in 6 in
For a thin-walled section of T-shape shown in Fig. 5.26, find the followings : a) Shear stress distribution due to a shear force Vy b) Shear stress distribution due to a shear force Vz
Please show all work thank youFor a thin-walled section of T-shape shown in Fig. 5.26, find the followings :a) Shear stress distribution due to a shear force Vyb) Shear stress distribution due to a shear force Vz
For the thin, I-section with longer left flanges and varying thickness as shown below, show that...
For the thin, I-section with longer left flanges and varying thickness as shown below, show that the distance gs of the shear center from the vertical web is given by: SS-3e(1-c) d-(1+12p) where p- d/h. The thickness t is taken to be negligibly small in comparison with the other dimensions t/c SC t/c cd
For the thin, I-section with longer left flanges and varying thickness as shown below, show that...
For the thin, I-section with longer left flanges and varying
thickness as shown below, show that the distance ξs of
the shear center from the vertical web is given by:
where ρ = d/h. The thickness t is taken to be negligibly small
in comparison with the other dimensions.
d (1+12p)
All the problems are with the assumption of the no-body force isotropic elastic body. Consider the...
All the problems are with the assumption of the no-body force isotropic elastic body. Consider the axisymmetric problem of an anmlar disk with a fixed imer radius and loaded with uniform shear stress τ over the outer radius. Using the Airy stress functio term α show that the stress and displacement sohution for this problem is given by 1+v r2
#7. Locate the shear center for the symmetric cross-section with constant thickness t4mm. 4Dmm 30m
Q6) Derive an expression and locate the shear center for the beam cross section shown in Fig.2 .The walls of the cross section have constant thickness t- 2.5 וון (IDI 50 mm. 下 t 100 mm 50 mm Fig.2 Q.6
Q6) Derive an expression and locate the shear center for the beam cross section shown in Fig.2 .The walls of the cross section have constant thickness t- 2.5 וון (IDI 50 mm. 下 t 100 mm 50 mm Fig.2 Q.6
Determine the location of the shear center "e" I (16/3)a*t 2a SHEAR FLOW ON THE HORIZONTAL FLANGE IS NOT SHOWN
2.- Link AB, whose width is b = 2 "and its thickness t = 1/8",
is used to support the end of a horizontal beam. If it is known
that the average normal stress in the link is - 20 ksi, and that
the average shear stress in each of the pins is 12 ksi, Find:
a) the diameter d of the pins,
b) the average stress of support on the link.
Make the free body diagram and explain step...
2. Determine the constant thickness of the rectangular tube if the average shear stress is not to exceed 10 ksi when a torque of T = 75kip.in is applied to the tube. 3 in 6 in
For the thin, I-section with longer left flanges and varying thickness as shown below, show that the distance gs of the shear center from the vertical web is given by: SS-3e(1-c) d-(1+12p) where p- d/h. The thickness t is taken to be negligibly small in comparison with the other dimensions t/c SC t/c cd
For the thin, I-section with longer left flanges and varying
thickness as shown below, show that the distance ξs of
the shear center from the vertical web is given by:
where ρ = d/h. The thickness t is taken to be negligibly small
in comparison with the other dimensions.
d (1+12p)
All the problems are with the assumption of the no-body force isotropic elastic body. Consider the axisymmetric problem of an anmlar disk with a fixed imer radius and loaded with uniform shear stress τ over the outer radius. Using the Airy stress functio term α show that the stress and displacement sohution for this problem is given by 1+v r2
