Determine the steady-state de voltages across the three capacitors in the circuit shown in Figure 4...

Question

Question

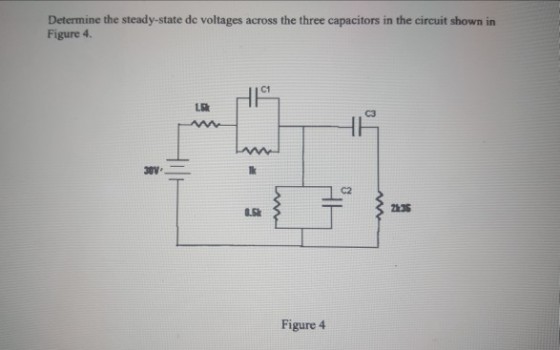

Determine the steady-state de voltages across the three capacitors in the circuit shown in Figure 4 C1 C3 w. C2 2135 Figure 4

engineering Electrical-Engineering

Answer 1

Answer #1

C2 Neltage divisim 30 2 L3

Answer 2

Similar Homework Help Questions

Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values...

Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C1 = 27.5 μF, C2 = 45.5 μF, C3 = 50.5 μF, C4 = 40.5 μF, and the power supply is at voltage V = 16.5 V. What is the equivalent capacitance of the circuit? Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C1-27.5 μF, C2 = 45.5 μF, C3 = 50.5 F, C.-40.5 and the...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, Vg, and Vc). The resistor values are: R7-2 Ohms, R-R3-4 Ohms, and the battery voltages are VA=25 V. V8-15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by Rg? Vc R, VA VE R₂ R3 1.25 W 0 2.0 W 5.0 W O 6.25 W O 8.13 W The circuit shown in the figure contains...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vd). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Ve=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R1 VA V. R2 R3 O 0.75 W O 1.25 W 0 2.67 w 4.2 w O 5.5 W The circuit shown in the figure...

The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...

The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C3? C4 C1 C2 C3 1.25 V 3.0 V 4.0 V 2.0 V 2.5 V
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...

The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage V0=5 V. When the circuit is connected what will be voltage across C3? 1.25 V 3.0 V 4.0 V 2.0 V 2.5 V C4 C1 C2 C3 G V.
Question 9 5 pts The circuit shown in the figure contains four capacitors whose values are...

Question 9 5 pts The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C3? CA C1 C2 C3 V. 1.25 V 3.0 V 4.0 V 2.0 V 2.5 V

The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...

The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C4? C4 C1 C2 C3 V 2.5 V 4.0 V 2.0 V 3.0 V
The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three...

The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three batteries (VA. Vg, and Vc). The resistor values are: Rq=2 Ohms, Ry-R3-8 Ohms, and the battery voltages are VA-25 V, V8-15 V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R1 F VB R2 M 20 O 0.75 W O 1.25 W 0 2.67 W 0 4.2 W 5.5 W The circuit shown in the...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R=R3=4 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R1? Vc M R1 + VA VB - R2 R3 1.25 W 2.0W 12.5 W 6.25 W 8.13 W The circuit shown in the figure contains four...

The circuit shown in the figure below contains three capacitors whose values are as follows: C1=1...

The circuit shown in the figure below contains three capacitors whose values are as follows: C1=1 UF, C2=2 pF, and C3=3 uF. The battery voltage Vo=20 V. When the circuit is connected, and the capacitors are charged, what will be charge on C3? C2, V. C3 GO 30 micro C 16.7 micro C 8.3 micro C 50 micro C 5 micro C
