Question

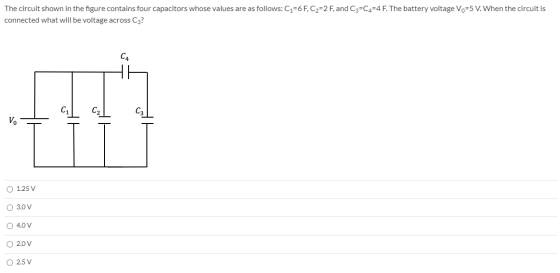

The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vd). The resThe circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The batt

0 0
Add a comment Improve this question Transcribed image text
Answer #1

2ou Isu 8 250 w and su in parallel R!. 16 By Kishorfs law. (200-25) His) – 6= 0 SA 10 = 6 irst les = ir est sel 2 5.5 W iR X

Add a comment
Know the answer?
Add Answer to:
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

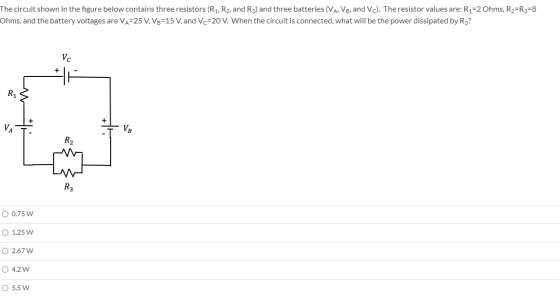

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R=R3=4 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R1? Vc M R1 + VA VB - R2 R3 1.25 W 2.0W 12.5 W 6.25 W 8.13 W The circuit shown in the figure contains four...

  • The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three batteries (VA. Vg, and Vc). The resistor values are: Rq=2 Ohms, Ry-R3-8 Ohms, and the battery voltages are VA-25 V, V8-15 V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R1 F VB R2 M 20 O 0.75 W O 1.25 W 0 2.67 W 0 4.2 W 5.5 W The circuit shown in the...

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, Vg, and Vc). The resistor values are: R7-2 Ohms, R-R3-4 Ohms, and the battery voltages are VA=25 V. V8-15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by Rg? Vc R, VA VE R₂ R3 1.25 W 0 2.0 W 5.0 W O 6.25 W O 8.13 W The circuit shown in the figure contains...

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, V8, and Vc). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are Va=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? VC R1 VA -- VB R2 R3 O 0.75 W O 1.25 W 0 2.67 W O 4.2 W O 5.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc + R1 3 + VB R2 R3 O 0.75 W O 1.25 W 0 2.67 W 4.2 W O 5.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, V8, and Vc). The resistor values are: R2=2 Ohms, R2=R3=4 Ohms, and the battery voltages are Va=25 V, V8=15 V, and Vc=20 V. When the circuit is connected what will be the current through R2? Vc R₂ 3 A VA HH V. R2 R3 O 0.75 A 01.25 A 0 2.5 A O 3.0 A 0 3.75 A

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? VC +H R1 VA t: SA VB R2 R3 0.75 W 1.25 W 2.67 W 4.2 W O 5.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, V8, and V). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA 25 V. Ve=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc HA R1 VA th VB R2 m M R3 O 0.75W 1.25 W 2.67 w 04.2W 5.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, Vs, and V). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are Va=25 V. V8-15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R1 VA V: R₂ } R3 0.75 W 1.25 W 2.67 W 104.2 W 5.5 W

  • Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2,...

    Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2, and Rs) and three batteries (VA. Vg, and V). The resistor values are: R2-2 Ohms, R2-R3-6 Ohms, and the battery voltages are VA-25 V. V8-15V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R2? VC R 3 VA VB R2 R₃ 10W 2.0 W oooo 5.0 W 6.0 W 7.5 W Question 9 5 pts The circuit...
