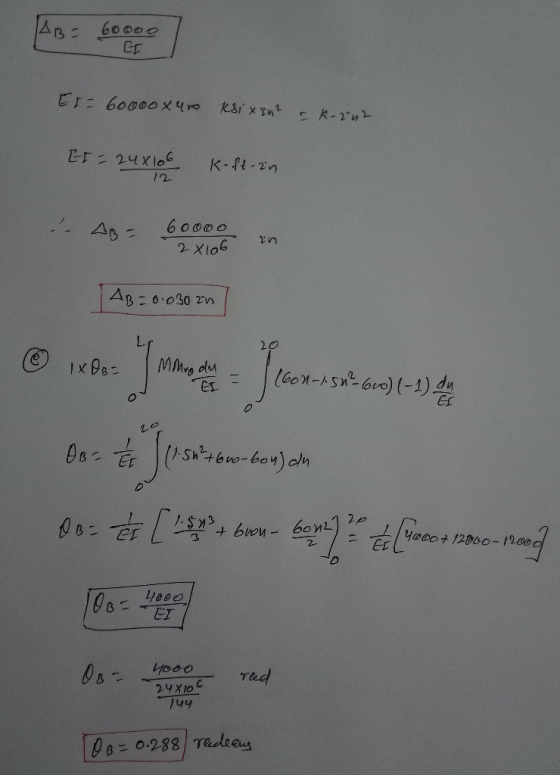

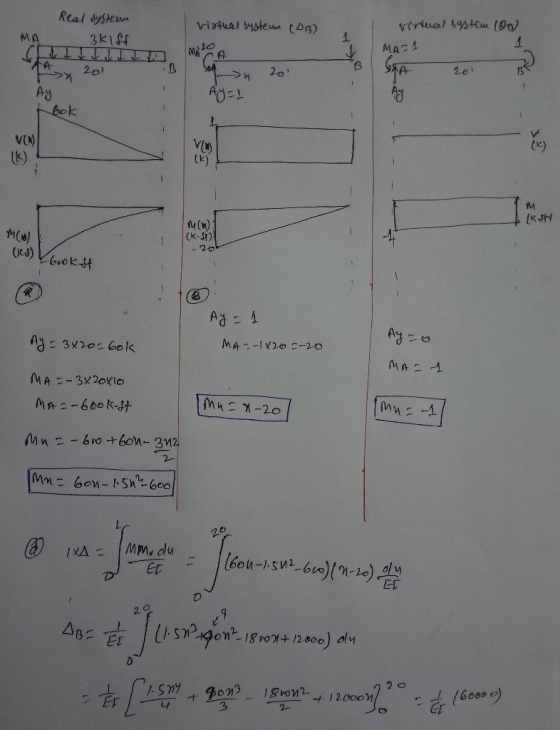

Given: The cantilevered beam shown below with E = 60,000 ksi and I = 400 in...
The cantilevered beam shown here has a known rigidity, EI, andlength, b, and is loaded...
The cantilevered beam shown here has a known rigidity, EI, and
length, b, and is loaded with a point force and a point moment as
shown a) Determine all reactions forces and draw the shear and
moment diagrams for this loading.b) Using discontinuity functions and the integration method,
find the deflection and the slope of the beam at the free
end.c) Using the moment-area method, find the deflection and the
slope of the beam at the location of the point load.
The two-span continuos beam (ABC) shown in the sketch below carries a uniformly distributed load, w,...
The two-span continuos beam (ABC) shown in the sketch
below carries a uniformly distributed load, w, in the left side
span AB. Assume that EI is constant. Use the method of virtual
work, together with the principle of relative displacements, to
determine the following quantities in terms of E,I,L and
w:
The two-span continuous beam (ABC) shown in the sketch below carries a uniformly distributed load, w, in the left side span AB. Assume that El of the beam is...
1) The beam shown below is made from an 8 in x 8 in hollow square...
1) The beam shown below is made from an 8 in x 8 in hollow square tube with a wall thickness of 0.5 in The modulus of elasticity of the beam is 10,000 ksi. (a) Identify the individual load cases from the beam tables that should be applied. Draw the deflected shape for each case and clearly show or mark locations where deflection or slope are zero. (b) Evaluate the deflection at point C in inches. [Ans. To check, ve-3.82in...
The beam shown below is made from steel with a modulus of elasticity of 10,000 ksi. The section is a rectangular beam t...
The beam shown below is made from steel with a modulus of elasticity of 10,000 ksi. The section is a rectangular beam that is 15" tall and 7" wide. The length of the beam is 30 ft. (a) Identify the individual load cases from the beam tables that should be applied. Draw the deflected 2) shape for each case and clearly show or mark locations where deflection or slope are zero. (b) Evaluate the deflection of the beam at A...
Problem #3 GIVEN: E = 29,000 ksi I = 1000 in4 OK 40K 15 33.3K 6.7K...
Problem #3 GIVEN: E = 29,000 ksi I = 1000 in4 OK 40K 15 33.3K 6.7K 30 FIND: Find the deflection at point D by virtual work. (Mm) Answer will be in inches, and give direction.
Determine the slope and displacement at the end A of the beam. Take E 29(103) ksi,...
Determine the slope and displacement at the end A of the beam. Take E 29(103) ksi, - 170 in4. Use the method of virtual work Prob. 8-24 10 k 2 k/ft 10 ft10 ft 10 ft
The W10 × 15 cantilevered beam is made of A-36 steel and is subjected to the loading shown
The W10 × 15 cantilevered beam is made of A-36 steel and is subjected to the loading shown. Suppose that w=2.5 kip/ft. E = 29(103) ksi and I = 68.9 in4.(Figure 1) Part A Determine the slope of the beam B, measured counterclockwise from the positive x axis. Express your answer using three significant figures. Part B Determine the displacement of the beam at B.
Determine the slope and displacement at the end A of the beam. Take E 29(103) ksi,...
Determine the slope and displacement at the end A of the beam. Take E 29(103) ksi, in4. Use the method of virtual work. 170 Prob. 8-24 10 k 2 k/ft 1 10 ft 10 ft 10 ft
A timber [E = 1,800 ksi] beam is loaded and supported as shown. The cross section...
A timber [E = 1,800 ksi] beam is loaded and supported
as shown. The cross section of the timber beam is b = 4
in. wide and h = 7 in. deep. The beam is supported at
B by a 0.875-in.-diameter aluminum [E = 10,500
ksi] rod, which has no load before the distributed load is applied
to the beam. After a distributed load of w = 610 lb/ft is
applied to the beam, determine
(a) the force carried by...
Problem #3 GIVEN: E 29,000 ksi 1 1000 in IOR 40K 15 33.3K 6.1K FIND: Find...
Problem #3 GIVEN: E 29,000 ksi 1 1000 in IOR 40K 15 33.3K 6.1K FIND: Find the deflection at point D by virtual work. (Mm) Answer will be in inches, and give direction.
The two-span continuos beam (ABC) shown in the sketch
below carries a uniformly distributed load, w, in the left side
span AB. Assume that EI is constant. Use the method of virtual
work, together with the principle of relative displacements, to
determine the following quantities in terms of E,I,L and
w:
The two-span continuous beam (ABC) shown in the sketch below carries a uniformly distributed load, w, in the left side span AB. Assume that El of the beam is...
1) The beam shown below is made from an 8 in x 8 in hollow square tube with a wall thickness of 0.5 in The modulus of elasticity of the beam is 10,000 ksi. (a) Identify the individual load cases from the beam tables that should be applied. Draw the deflected shape for each case and clearly show or mark locations where deflection or slope are zero. (b) Evaluate the deflection at point C in inches. [Ans. To check, ve-3.82in...
The beam shown below is made from steel with a modulus of elasticity of 10,000 ksi. The section is a rectangular beam that is 15" tall and 7" wide. The length of the beam is 30 ft. (a) Identify the individual load cases from the beam tables that should be applied. Draw the deflected 2) shape for each case and clearly show or mark locations where deflection or slope are zero. (b) Evaluate the deflection of the beam at A...
Problem #3 GIVEN: E = 29,000 ksi I = 1000 in4 OK 40K 15 33.3K 6.7K 30 FIND: Find the deflection at point D by virtual work. (Mm) Answer will be in inches, and give direction.
Determine the slope and displacement at the end A of the beam. Take E 29(103) ksi, - 170 in4. Use the method of virtual work Prob. 8-24 10 k 2 k/ft 10 ft10 ft 10 ft
Determine the slope and displacement at the end A of the beam. Take E 29(103) ksi, in4. Use the method of virtual work. 170 Prob. 8-24 10 k 2 k/ft 1 10 ft 10 ft 10 ft
A timber [E = 1,800 ksi] beam is loaded and supported
as shown. The cross section of the timber beam is b = 4
in. wide and h = 7 in. deep. The beam is supported at
B by a 0.875-in.-diameter aluminum [E = 10,500
ksi] rod, which has no load before the distributed load is applied
to the beam. After a distributed load of w = 610 lb/ft is
applied to the beam, determine
(a) the force carried by...
Problem #3 GIVEN: E 29,000 ksi 1 1000 in IOR 40K 15 33.3K 6.1K FIND: Find the deflection at point D by virtual work. (Mm) Answer will be in inches, and give direction.
