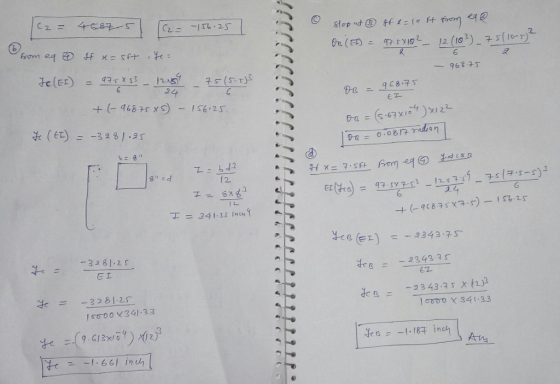

![1) The beam shown below is made from an 8 in x 8 in hollow square tube with a wall thickness of 0.5 in The modulus of elasticity of the beam is 10,000 ksi. (a) Identify the individual load cases from the beam tables that should be applied. Draw the deflected shape for each case and clearly show or mark locations where deflection or slope are zero. (b) Evaluate the deflection at point C in inches. [Ans. To check, ve-3.82in downward] (c) Evaluate the slope of the beam at B in radians. [Ans. To check, ,-+0.0987 rad] (d) Calculate the deflection halfway between C and B in inches. Ans. To check, v = 1.36in downward 75 k 12 k/ft 5 ft 5 ft](http://img.homeworklib.com/questions/2d286810-2144-11eb-b552-238811ce8ec6.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
1) The beam shown below is made from an 8 in x 8 in hollow square...
