Calculate the deflection of the rectangular wood beam at the load application point, 8 ft from...

Question

Question

Calculate the deflection of the rectangular wood beam at the load application point, 8 ft from A. Write you answer in inches

engineering Mechanical-Engineering

Answer 1

Answer #1

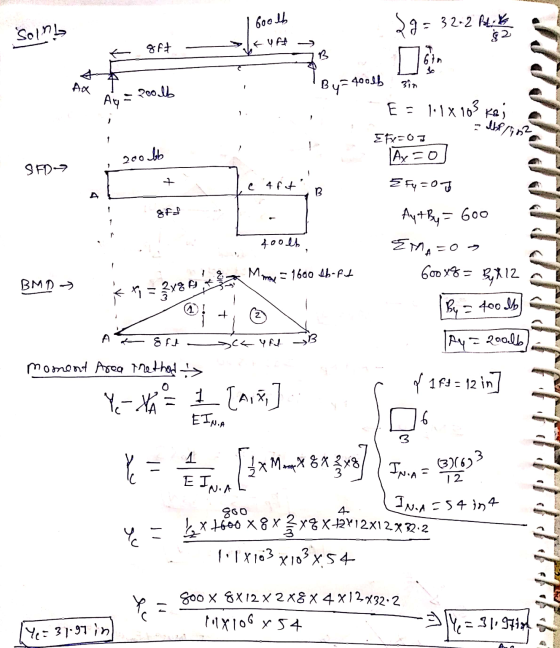

600 lb Solny 19 = 32.2 flit § 2 8ft 6in 3in Roolb By = 400lb Ay E = 1.1x103 kej 1 Ibf/722 Efv=0 Ax=0 200 bb SFD it Fy= В 8F

Answer 2

Similar Homework Help Questions

Calculate the deflection (mm) at point of the simply supported beam. The modulus of elasticity of...

Calculate the deflection (mm) at point of the simply supported beam. The modulus of elasticity of the wood is E = 16.8 GPa. Write your answer in mm to 2 decimal places. 3 kN 3 kN 100 mm B 1200 mm -1.5 m-+-1.5 m + 3 m
A 8 kip load is applied at the center of a propped cantilever wood beam (E...

A 8 kip load is applied at the center of a propped cantilever wood beam (E 1,200 ksi, and I - 200 in4). If the span length of the beam is 11 ft, what is the centerline deflection, in inches, of the beam?
A simply supported wood beam with a span of L = 16 ft supports a uniformly...

A simply supported wood beam with a span of L = 16 ft supports a uniformly distributed load of w0 = 305 lb/ft. The allowable bending stress of the wood is 1.30 ksi. If the aspect ratio of the solid rectangular wood beam is specified as h/b = 1.75, calculate the minimum width b that can be used for the beam. A simply supported wood beam with a span of L = 16 ft supports a uniformly distributed load of...

1) The beam shown below is made from an 8 in x 8 in hollow square...

1) The beam shown below is made from an 8 in x 8 in hollow square tube with a wall thickness of 0.5 in The modulus of elasticity of the beam is 10,000 ksi. (a) Identify the individual load cases from the beam tables that should be applied. Draw the deflected shape for each case and clearly show or mark locations where deflection or slope are zero. (b) Evaluate the deflection at point C in inches. [Ans. To check, ve-3.82in...
16. Beam Deflection Using the method of progressive diagrams, find the centerline deflection for the given...

16. Beam Deflection Using the method of progressive diagrams, find the centerline deflection for the given beam. Give the required values for each diagram (load, shear, moment slope(EI) and deflection) shown in the problem statement (see the pdf). 3 w 1 DATASET: 1 -2. Length A Length B Point Load P Uniform Load w Modulus of Elasticity Moment of Inertia 9 FT 10 FT 13 KIPS 1 KLF 29000 KSI 600 IN 4 -A- B- -- A - Correct Answer...
A simply supported wood beam with a span of L = 17 ft supports a uniformly...

A simply supported wood beam with a span of L = 17 ft supports a uniformly distributed load of w0 = 250 lb/ft. The allowable bending stress of the wood is 1.65 ksi. If the aspect ratio of the solid rectangular wood beam is specified as h/b = 2.25, calculate the minimum width b that can be used for the beam.

A simply supported wood beam with a span of L = 12 ft supports a uniformly...

A simply supported wood beam with a span of L = 12 ft supports a uniformly distributed load of w0 = 300 lb/ft. The allowable bending stress of the wood is 1.70 ksi. If the aspect ratio of the solid rectangular wood beam is specified as h/b = 3.00, calculate the minimum width b that can be used for the beam.
A cantilever wood beam with a span of L = 21 ft supports a linearly distributed...

A cantilever wood beam with a span of L = 21 ft supports a linearly distributed load with maximum intensity of w0 = 250 lb/ft. The allowable bending stress of the wood is 1.70 ksi. If the aspect ratio of the solid rectangular cross section is specified as h/b = 0.50, determine the minimum width b that can be used for the beam. A cantilever wood beam with a span of L = 21 ft supports a linearly distributed load...
A simply supported wood beam with a span of L = 23 ft supports a uniformly...

A simply supported wood beam with a span of L = 23 ft supports a uniformly distributed load of w0 = 300 lb/ft. The allowable bending stress of the wood is 1.95 ksi. If the aspect ratio of the solid rectangular wood beam is specified as h/b = 2.25, calculate the minimum width b that can be used for the beam. Wo 2L Answer: b - in. The number of significant digits is set to 3; the tolerance is +/-1%

100 lb/tht A cantilever beam 10 ft long carries a uniformly distributed load of w 100...

100 lb/tht A cantilever beam 10 ft long carries a uniformly distributed load of w 100 lb/ft. The beam is constructed from a 3-in.-wide by 8-in.-deep wood timber (1) that is reinforced on its upper surface by a 3-in.-wide by 0.25-in.-thick alumi- 3im num plate (2). The elastic modulus of the wood is E 1,700 ksi, and the elastic modulus of the aluminum plate is E 10,200 ksi. Determine 0h Cross-sectional dimensions. the maximum bending stresses produced in timber (1)...
