Question

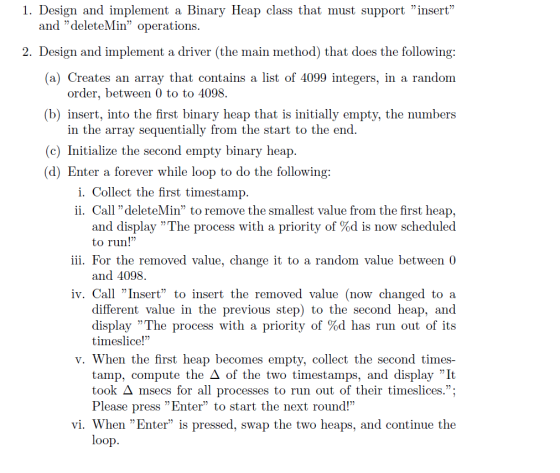

1. Design and implement a Binary Heap class that must support "insert" and "deleteMin" operations 2. Design and implement a driver (the main method) that does the following: (a) Creates an array that contains a list of 4099 integers, in a random order, between 0 to to 4098. (b) insert, into the first binary heap that is initially empty, the numbers in the array sequentially from the start to the end (c) Initialize the second empty binary heap (d) Enter a forever while loop to do the following i. Collect the first timestamp ii. Call "deleteMin" to remove the smallest value from the first heap, and display "The process with a priority of %d is now scheduled to run!" iii. For the removed value, change it to a random value between 0 and 4098. iv. Call " Insert" to insert the removed value (now changed to a different value in the previous step) to the second heap, and display "The process with a priority of %d has run out of its timeslice!" v. When the first heap becomes empty, collect the second times- tamp, compute the of the two timestamps, and display "It took ? msecs for all processes to run out of their timeslices." Please press " Enter to start the next round!" vi. When "Enter" is pressed, swap the two heaps, and continue the oop

Must be in JAVA

Answer 1

Implemenetation of binary Heap given beloiw:

*   Binary Heap

*/

import java.util.Scanner;

import java.util.Arrays;

import java.util.NoSuchElementException;

/* Class BinaryHeap */

class BinaryHeap

{

    /* The number of children each node has */

    private static final int d = 2;

    private int heapSize;

    private int[] heap;

    /* Constructor */

    public BinaryHeap(int capacity)

    {

        heapSize = 0;

        heap = new int[capacity + 1];

        Arrays.fill(heap, -1);

    }

    /* Function to check if heap is empty */

    public boolean isEmpty( )

    {

        return heapSize == 0;

   }

    /* Check if heap is full */

    public boolean isFull( )

    {

        return heapSize == heap.length;

    }

    /* Clear heap /

    public void makeEmpty( )

    {

        heapSize = 0;

    }

    /* Function to get index parent of i */

    private int parent(int i)

    {

        return (i - 1)/d;

    }

    /* Function to get index of k th child of i */

    private int kthChild(int i, int k)

    {

        return d * i + k;

    }

    /* Function to insert element /

    public void insert(int x)

    {

        if (isFull( ) )

            throw new NoSuchElementException("Overflow Exception");

        /* Percolate up */

        heap[heapSize++] = x;

        heapifyUp(heapSize - 1);

    }

    /* Function to find least element */

    public int findMin( )

    {

        if (isEmpty() )

            throw new NoSuchElementException("Underflow Exception");

        return heap[0];

    }

    /* Function to delete min element */

    public int deleteMin()

    {

        int keyItem = heap[0];

        delete(0);

        return keyItem;

    }

    /* Function to delete element at an index */

    public int delete(int ind)

    {

        if (isEmpty() )

            throw new NoSuchElementException("Underflow Exception");

        int keyItem = heap[ind];

        heap[ind] = heap[heapSize - 1];

        heapSize--;

        heapifyDown(ind);

        return keyItem;

    }

    /* Function heapifyUp */

    private void heapifyUp(int childInd)

    {

        int tmp = heap[childInd];

        while (childInd > 0 && tmp < heap[parent(childInd)])

        {

            heap[childInd] = heap[ parent(childInd) ];

            childInd = parent(childInd);

        }

        heap[childInd] = tmp;

    }

    /* Function heapifyDown */

    private void heapifyDown(int ind)

    {

        int child;

        int tmp = heap[ ind ];

        while (kthChild(ind, 1) < heapSize)

        {

            child = minChild(ind);

            if (heap[child] < tmp)

                heap[ind] = heap[child];

            else

                break;

            ind = child;

        }

        heap[ind] = tmp;

    }

    /* Function to get smallest child */

    private int minChild(int ind)

    {

        int bestChild = kthChild(ind, 1);

        int k = 2;

        int pos = kthChild(ind, k);

        while ((k <= d) && (pos < heapSize))

        {

            if (heap[pos] < heap[bestChild])

                bestChild = pos;

            pos = kthChild(ind, k++);

        }

        return bestChild;

    }

    /* Function to print heap */

    public void printHeap()

    {

        System.out.print("\nHeap = ");

        for (int i = 0; i < heapSize; i++)

            System.out.print(heap[i] +" ");

        System.out.println();

    }

}

/* Class BinaryHeapTest */

public class BinaryHeapTest

{

    public static void main(String[] args)

    {

        Scanner scan = new Scanner(System.in);

        System.out.println("Binary Heap Test\n\n");

        System.out.println("Enter size of Binary heap");

        /* Make object of BinaryHeap */

        BinaryHeap bh = new BinaryHeap(scan.nextInt() );

        char ch;

        /* Perform Binary Heap operations */

        do

        {

            System.out.println("\nBinary Heap Operations\n");

            System.out.println("1. insert ");

            System.out.println("2. delete min");

            System.out.println("3. check full");

            System.out.println("4. check empty");

            System.out.println("5. clear");

            int choice = scan.nextInt();

            switch (choice)

            {

            case 1 :

                try

                {

                    System.out.println("Enter integer element to insert");

                    bh.insert( scan.nextInt() );

                }

                catch (Exception e)

                {

                    System.out.println(e.getMessage() );

              }

                break;

            case 2 :

                try

                {

                    System.out.println("Min Element : "+ bh.deleteMin());

                }

                catch (Exception e)

              {

                    System.out.println(e.getMessage() );

                }

                break;

            case 3 :

                System.out.println("Full status = "+ bh.isFull());

                break;

            case 4 :

                System.out.println("Empty status = "+ bh.isEmpty());

                break;

            case 5 :

                bh.makeEmpty();

                System.out.println("Heap Cleared\n");

                break;

            default :

                System.out.println("Wrong Entry \n ");

                break;

            }

            /* Display heap */

            bh.printHeap();

            System.out.println("\nDo you want to continue (Type y or n) \n");

            ch = scan.next().charAt(0);

        } while (ch == 'Y'|| ch == 'y');

    }

}
