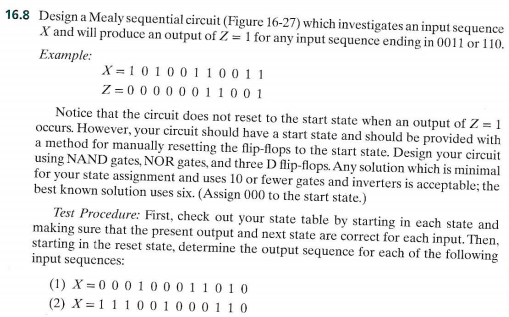

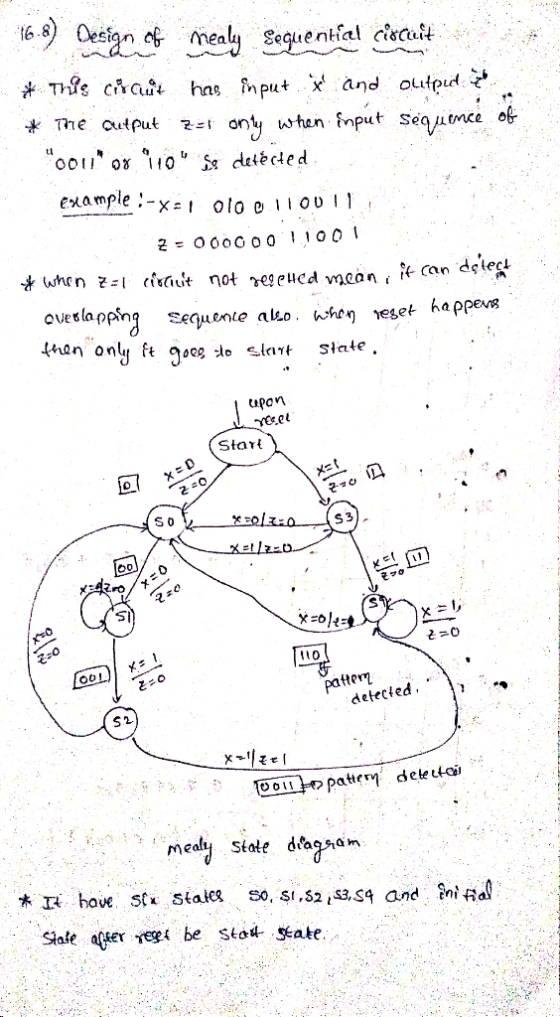

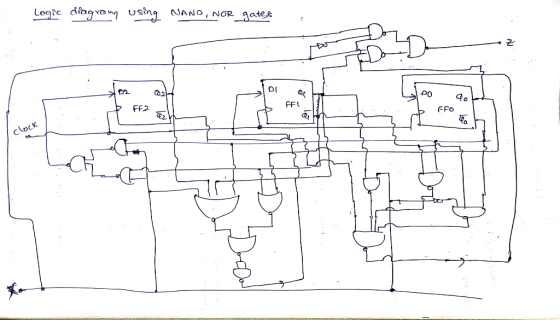

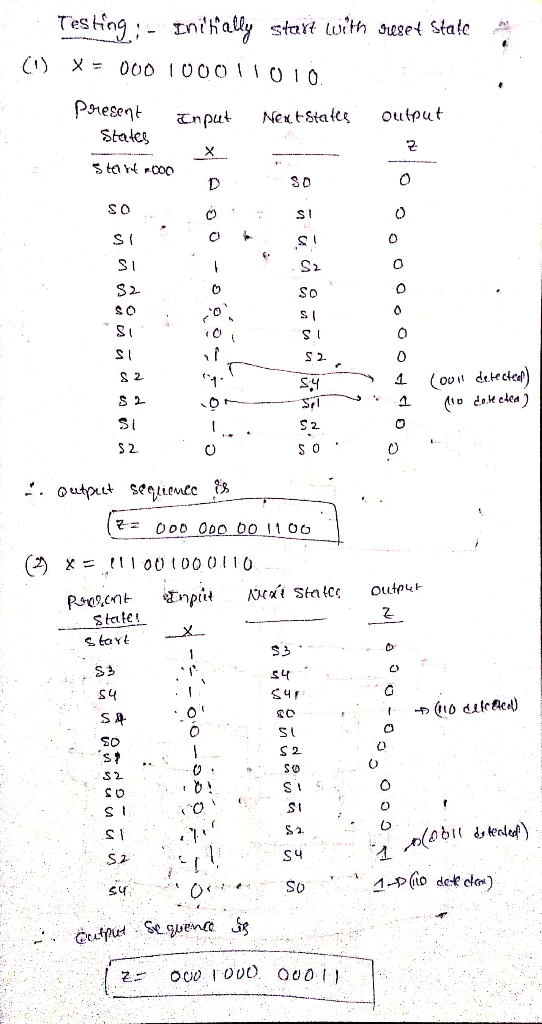

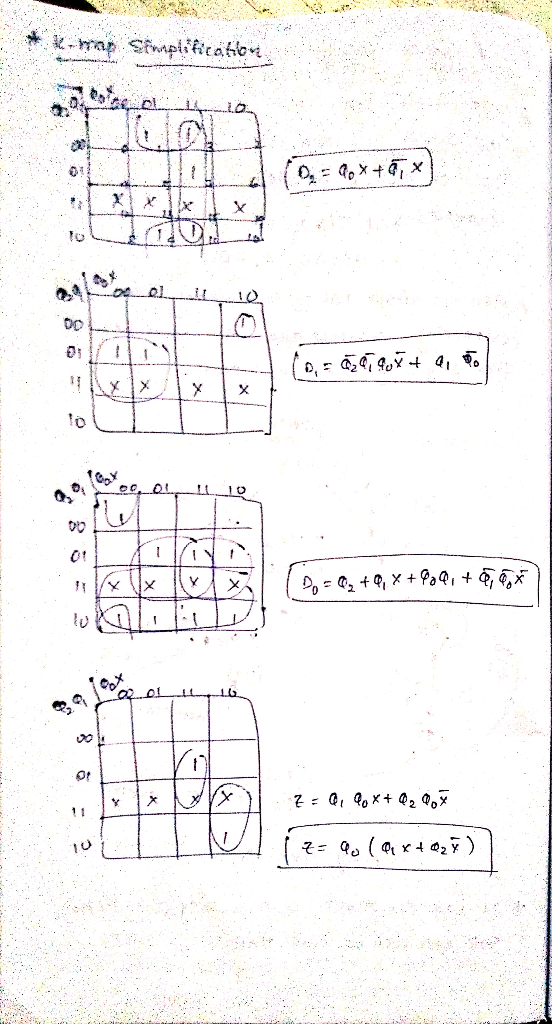

Design a Mealy sequential circuit (Figure 16-27) which investigates an input sequence...
Design a Mealy sequential circuit with one input X and one output Y that recognizes the...
Design a Mealy sequential circuit with one input X and one output Y that recognizes the sequence 1101 anywhere on the input sequence X. When the circuit recognizes the sequence it asserts its output Z high. Design the circuit with T flip flops.
Design a sequential circuit for a sequence detector that detects the sequence 10011
Design a sequential circuit for a sequence detector that detects the sequence 10011. A continuous bit stream is fed at the input of the circuit. Every time the circuit detects the sequence 10011, an output line is made HIGH a) Sketch Mealy FSM for the sequence detector. b) Tabulate the state table c) Using K-maps, write down the simplified Boolean expressions of the flip-flops input equations using T flip-flops d) Sketch the logic circuit diagram
Please send an easy to read circuit design as well and explain how it works. 4:02...
Please send an easy to read circuit design as well and explain
how it works.
4:02 00 LTE il 50% + ENEE 2586 - Lab 9_f... @ + : ENEF 356 Lab -Sequence Detector ENEE 2586 Lab #9 - Sequence Detector Purpose: The goal of this lab is to design a sequence detector using sequential logic circuits Procedure: 1. Design a sequential logic circuit to check an input stream labeled X and to produce an output Z=1 for any input...
1. Given the state diagram shown below for a two-state synchronous sequential Mealy circuit with input....
1. Given the state diagram shown below for a two-state synchronous sequential Mealy circuit with input. and output z, realize the circuit using D flip-flops. Your answer must include the state transition,excita- tion, and output tables, the excitation equation(s), and a labeled circuit diagram 1/0 2. Given the state diagram in Problem 1, realize the circuit using JK flip-flops. Your answer must include the state transition, excitation, and output tables, the excitation equation(s), and a labeled circuit diagram. 3. Given...
5) A single-input (x) single-output(z) synchronous sequential circuit is required to operate as follows: i) The...
5) A single-input (x) single-output(z) synchronous sequential circuit is required to operate as follows: i) The circuit is put to a specific initial state (call this state A) ii) Starting from state A, the circuit will give a 1 output when the input sequence up to and including the present time contains an odd number of 0's and an odd number of l's: the circuit will give a 0 output at all other times An example input and corresponding output...
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an ...
digital logic
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping sequences should be detected.(Note : use D flip-flops in your design. Repeat problem 2 for a Mealy-type FSM 2. 3.
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping...
Using a mealy machine and D flip-flops design a sequential circuit for the sequence '1000'.
Using a mealy machine and D flip-flops design a sequential circuit for the sequence '1000'.
Please label the circuit as well, the inputs and outputs Design a sequence detector that examines...
Please label the circuit as well, the inputs and outputs
Design a sequence detector that examines a string of inputs applied to the input X and generates an output Z-1 whenever the input sequence is 011. A typical input sequence is as follows: X 0 01 1 01 1 1 0 1 0 1 0 0 1 1 Z 0 0 01 0 01 0 0 0 0 0 0 0 0 1 Time: 0 1 2 3 4 5...
9. Product State Graph ou are asked to design a sequence detector to detect the input codes 10 and 01. The input of the circuit is and the output is Z, which only changes at a clock edge. Overla...
9. Product State Graph ou are asked to design a sequence detector to detect the input codes 10 and 01. The input of the circuit is and the output is Z, which only changes at a clock edge. Overlaps must also be detected. Z only changes at the clock edge . [2%] A. Restate the problem by circling the most appropriate term within the parentheses 1. The circuilt type is (combinational- asynchronous- FSM). 2. The subcategory of the circuit is...
Can I get the chance to do this please ? A sequential circuit has an input...
Can I get the chance to do this please ? A sequential circuit has an input w and an output z (and an input reset). Its function is to generate z = 1 when the binary sequence 010 is detected; otherwise, z = 0. Implement the circuit in a Moore machine using graphical symbols of D flip-flops and any other gates. You can use a straightforward assignment method. An example of the desired behavior is as follows w: 010101010011001011 z:...
Please send an easy to read circuit design as well and explain
how it works.
4:02 00 LTE il 50% + ENEE 2586 - Lab 9_f... @ + : ENEF 356 Lab -Sequence Detector ENEE 2586 Lab #9 - Sequence Detector Purpose: The goal of this lab is to design a sequence detector using sequential logic circuits Procedure: 1. Design a sequential logic circuit to check an input stream labeled X and to produce an output Z=1 for any input...
1. Given the state diagram shown below for a two-state synchronous sequential Mealy circuit with input. and output z, realize the circuit using D flip-flops. Your answer must include the state transition,excita- tion, and output tables, the excitation equation(s), and a labeled circuit diagram 1/0 2. Given the state diagram in Problem 1, realize the circuit using JK flip-flops. Your answer must include the state transition, excitation, and output tables, the excitation equation(s), and a labeled circuit diagram. 3. Given...
5) A single-input (x) single-output(z) synchronous sequential circuit is required to operate as follows: i) The circuit is put to a specific initial state (call this state A) ii) Starting from state A, the circuit will give a 1 output when the input sequence up to and including the present time contains an odd number of 0's and an odd number of l's: the circuit will give a 0 output at all other times An example input and corresponding output...
digital logic
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping sequences should be detected.(Note : use D flip-flops in your design. Repeat problem 2 for a Mealy-type FSM 2. 3.
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping...
Please label the circuit as well, the inputs and outputs
Design a sequence detector that examines a string of inputs applied to the input X and generates an output Z-1 whenever the input sequence is 011. A typical input sequence is as follows: X 0 01 1 01 1 1 0 1 0 1 0 0 1 1 Z 0 0 01 0 01 0 0 0 0 0 0 0 0 1 Time: 0 1 2 3 4 5...
9. Product State Graph ou are asked to design a sequence detector to detect the input codes 10 and 01. The input of the circuit is and the output is Z, which only changes at a clock edge. Overlaps must also be detected. Z only changes at the clock edge . [2%] A. Restate the problem by circling the most appropriate term within the parentheses 1. The circuilt type is (combinational- asynchronous- FSM). 2. The subcategory of the circuit is...
