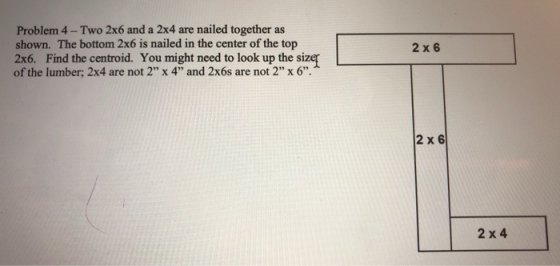

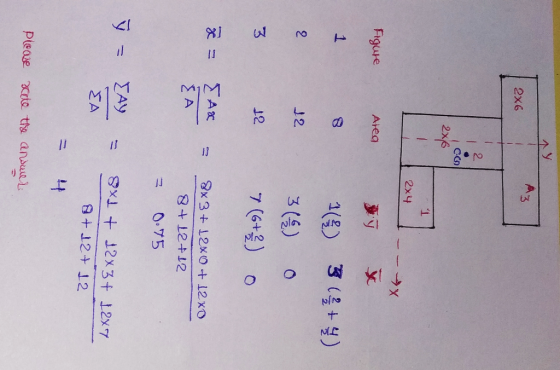

Problem 4-Two 2x6 and a 2x4 are nailed together as shown. The bottom 2x6 is nailed...
くQuiz #7 Problem 7.44 Part A The T-beam is nailed together as shown in (Figure 1)....
くQuiz #7 Problem 7.44 Part A The T-beam is nailed together as shown in (Figure 1). The nails can each support a shear force of 6 kN. The allowable shear stress for the wood is Tallow 4 MPa Determine the Express your Submit Part B Figure 1of 1 > Determine the co Express your an 50 mm' 300 mm S Submit Re 300 mm Provide Feedback 50 mm PM 438 4/9/2019 ENG R V- 1 Value 1 of 1 Part...
8) (8 pts total) For this problem, you will sketch a graph of f(x) = 2x4...
8) (8 pts total) For this problem, you will sketch a graph of f(x) = 2x4 + 8x3. Complete the following steps: (a) (1 pt) Determine the intercepts of the function. (b) (3 pts) Use the first derivative to find the intervals on which f increases and decreases, and the relative maximums and minimums. (c) (3 pts) Use the second derivative to find the intervals on which f is concave up and concave down, and the inflection points. (d) (1...
2. A beam section is made by nailing together two 2X8 boards (actual size - 1.s...
2. A beam section is made by nailing together two 2X8 boards (actual size - 1.s inches by 7:25 inches, a board dimension exceeds 6 inches, the actual dimension is inch less) and two 2x4 boards (actual ize 1.5 inches by 3.5 inches) in the configuration shown to the right. when 1.50 75 7.25 A 12-foot long beam with the section described above is used in a deck as illustrated below. The ends can be considered to be simply supported,...
Problem 4: 12Ω 40Ω 300 A circuit is put together as shown above. The left voltage...
Problem 4: 12Ω 40Ω 300 A circuit is put together as shown above. The left voltage source puts out a constant voltage of +20 volts. Part (a) Assume that the switch is open as shown. In this case, what is the value of the current lo through the top of the circuit in the direction shown? Give your answer in amps. Hint: You can do this from First Principles, but in this case it might be calculationally a little faster...
Problem 4. (20 points) For the Flanged Beam shown below, the effective flange width is given...
Problem 4. (20 points) For the Flanged Beam shown below, the effective flange width is given at 20 inches. Use L-4000 psi and f,-60,000 psi: (a) (15 points)The ultimate factored moment capacity and corresponding curvature. (b) (5 points) Amount of steel required to result in a balanced failure and Hint You'll need to find the centroid of the steel bars in order to determine d. You can find that centroid with the standard linear approach of the "balance of areas."...
Problem 5 Two 180 mm-long rubber bars are fixed at the bottom and attached at the...
Problem 5 Two 180 mm-long rubber bars are fixed at the bottom and attached at the top to a rigid disk of radius 20 mm, as shown below. If the rigid disk is rotated about its center by 2°, determine the shear strain in the rubber at point C (same as point A). ur= 20 mm 180 mm
You have two people, one of whom is standing at the bottom of a building and...
You have two people, one of whom is standing at the bottom of a building and another who is standing at the top. The person at the bottom of the building throws a ball vertically upward at 40.0 m/s at the same instant the person at the top releases an identical ball from rest. If the vertical distance between release points is 1.00 x 102 m how far from the top of the building do the two balls meet? Ignore...
Need help with part B (the sketching!) thanks Problem 3: A thin flat plate of length...
Need help with part B (the sketching!) thanks
Problem 3: A thin flat plate of length L-120 mm, thickness t=4 mm, width W=30 mm, and thermal conductivity k=20 W/m-K is thermally joined to heat sinks at different temperatures, where T(x = 0) = To-100 C and T(x = L) = T,-35°C. The top surface of the plate is subjected to uniform heat flux q"-20 kW/m2, and the bottom surface of the plate is subjected to uniform convection with a convection...
Question 7 1 pts Two infinite plates with surface charge densities to and -20 are shown...
Question 7 1 pts Two infinite plates with surface charge densities to and -20 are shown below. Determine the direction of the net electric field in each region. (Answers take the form of Region 1, Region 2, Region Region 1 Region 2 Region 3 + + 7 8 x (nm) -5 -4 -3 + 9 -2 -1 6 10 None of the other answers is Right Left, Right Left, Right Right Left, Right, Left Right, Right, Left Question 8 1...
Problem #2) Three boards that are glued together to form a single beam whose cross section...
Problem #2) Three boards that are glued together to form a single beam whose cross section is shown below. The moment acting about the z-axis is 1000 ft-lb and the vertical shear force is 400 lb. (20 points) a. Find the vertical centroid of the section, y. b. Find the moment of inertia of the section taken about a horizontal z-axis through the centroid. c. Determine the bending stress the wood must be able to resist assuming compression controls. d....
くQuiz #7 Problem 7.44 Part A The T-beam is nailed together as shown in (Figure 1). The nails can each support a shear force of 6 kN. The allowable shear stress for the wood is Tallow 4 MPa Determine the Express your Submit Part B Figure 1of 1 > Determine the co Express your an 50 mm' 300 mm S Submit Re 300 mm Provide Feedback 50 mm PM 438 4/9/2019 ENG R V- 1 Value 1 of 1 Part...
8) (8 pts total) For this problem, you will sketch a graph of f(x) = 2x4 + 8x3. Complete the following steps: (a) (1 pt) Determine the intercepts of the function. (b) (3 pts) Use the first derivative to find the intervals on which f increases and decreases, and the relative maximums and minimums. (c) (3 pts) Use the second derivative to find the intervals on which f is concave up and concave down, and the inflection points. (d) (1...
2. A beam section is made by nailing together two 2X8 boards (actual size - 1.s inches by 7:25 inches, a board dimension exceeds 6 inches, the actual dimension is inch less) and two 2x4 boards (actual ize 1.5 inches by 3.5 inches) in the configuration shown to the right. when 1.50 75 7.25 A 12-foot long beam with the section described above is used in a deck as illustrated below. The ends can be considered to be simply supported,...
Problem 4: 12Ω 40Ω 300 A circuit is put together as shown above. The left voltage source puts out a constant voltage of +20 volts. Part (a) Assume that the switch is open as shown. In this case, what is the value of the current lo through the top of the circuit in the direction shown? Give your answer in amps. Hint: You can do this from First Principles, but in this case it might be calculationally a little faster...
Problem 4. (20 points) For the Flanged Beam shown below, the effective flange width is given at 20 inches. Use L-4000 psi and f,-60,000 psi: (a) (15 points)The ultimate factored moment capacity and corresponding curvature. (b) (5 points) Amount of steel required to result in a balanced failure and Hint You'll need to find the centroid of the steel bars in order to determine d. You can find that centroid with the standard linear approach of the "balance of areas."...
Problem 5 Two 180 mm-long rubber bars are fixed at the bottom and attached at the top to a rigid disk of radius 20 mm, as shown below. If the rigid disk is rotated about its center by 2°, determine the shear strain in the rubber at point C (same as point A). ur= 20 mm 180 mm
Need help with part B (the sketching!) thanks
Problem 3: A thin flat plate of length L-120 mm, thickness t=4 mm, width W=30 mm, and thermal conductivity k=20 W/m-K is thermally joined to heat sinks at different temperatures, where T(x = 0) = To-100 C and T(x = L) = T,-35°C. The top surface of the plate is subjected to uniform heat flux q"-20 kW/m2, and the bottom surface of the plate is subjected to uniform convection with a convection...
Question 7 1 pts Two infinite plates with surface charge densities to and -20 are shown below. Determine the direction of the net electric field in each region. (Answers take the form of Region 1, Region 2, Region Region 1 Region 2 Region 3 + + 7 8 x (nm) -5 -4 -3 + 9 -2 -1 6 10 None of the other answers is Right Left, Right Left, Right Right Left, Right, Left Right, Right, Left Question 8 1...
Problem #2) Three boards that are glued together to form a single beam whose cross section is shown below. The moment acting about the z-axis is 1000 ft-lb and the vertical shear force is 400 lb. (20 points) a. Find the vertical centroid of the section, y. b. Find the moment of inertia of the section taken about a horizontal z-axis through the centroid. c. Determine the bending stress the wood must be able to resist assuming compression controls. d....
