Question

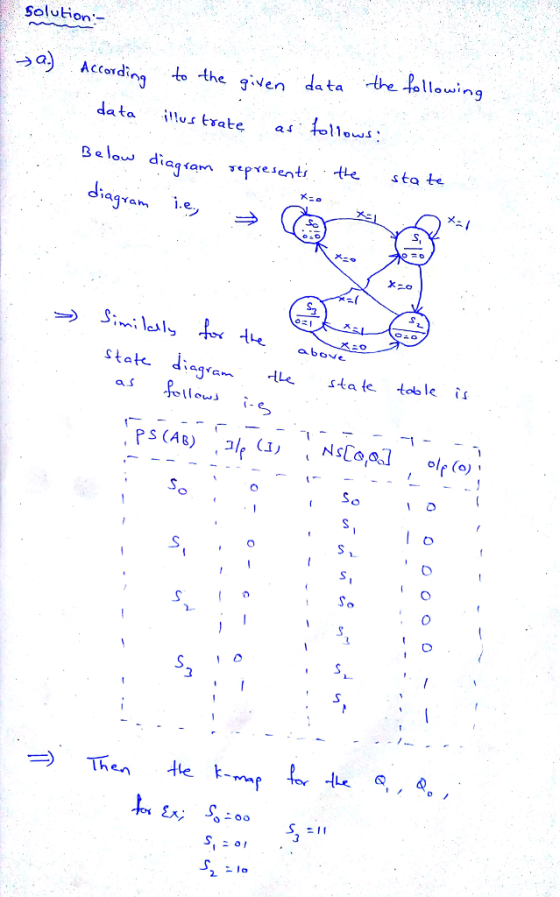

2 Design a circuit that has two inputs, clk and X, and produces one output O. Xmay change every clock cycle and the change happens at the falling edge. The circuit samples the input at every rising edge of the clock. O is 1 (for one clock cycle, from positive edge to positive edge) if the last values of X over the last three cycles were 101. (a) Complete the following the state transition diagram for this circuit. Assume that SO is the starting state. Label each arc as X-1 or X=0 to indicate if the change of state occurs when X is 1 or 0, respectively. Within each state write 0-1 or 0-0 to indicate the output. (20 points) SO S1 S3 S2 b. Write the next state and output table Inputs Output

0 0
Add a comment Improve this question Transcribed image text
