Homework Answers

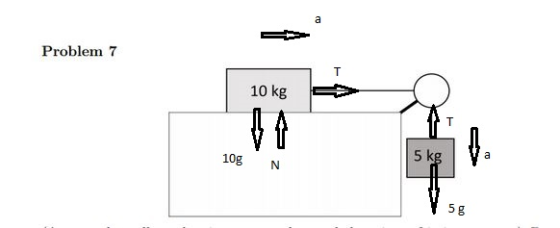

Applying Newton's 2nd law,
Fnet = m a
on 5kg,
5g - T = 5a .........(i)
on 10 kg:
T = 10 a ........(ii)
(i) + (ii ) =>
5g - 10a = 5a
a = 5 x 9.81 / (5 + 10) = 3.27 m/s^2
Add Answer to:

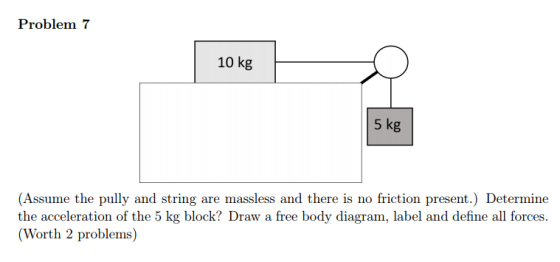

(Assume the pully and string are massless and there is no friction present.) Determine the acceleration...
