Question

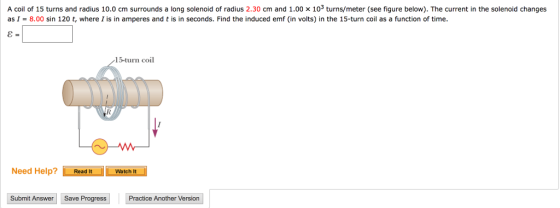

A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.30 cm and 1.00 x 103 ter (see figure below). The current in the solenoid changes 8.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time as I 15-turn coil VW- Need Help? Read It L Watch It Submit Answer Save Progress Practice Another Version

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

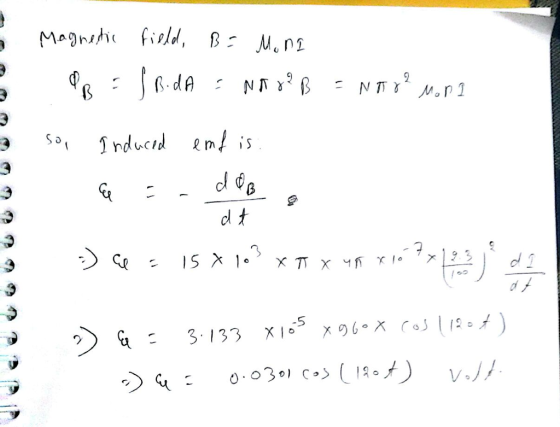

Answer #1

dナ -5 レ。// ーノメノ のし 2 2 3フ

2 0
Add a comment
Know the answer?
Add Answer to:
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.30...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.10...

    A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.10 cm and 1.00 103 turns/meter (see figure below). The current in the solenoid changes as I = 2.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time.

  • A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 1.70 cm

    A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 1.70 cm and 1.00 × 10³ turns/meter (see figure below). The current in the solenoid changes as I=5.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time.ɛ= _______

  • A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.50...

    A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.50 cm and 1.00x 103 turns/meter (see figure below). The current in the solenoid changes as I -5.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time. 15-turn coil Need Help? RedtWatch

  • A coil of 15 turns and radius 10 cm is located inside and coaxial with a...

    A coil of 15 turns and radius 10 cm is located inside and coaxial with a solenoid that has a radius 18 cm and 1.00 x 10 turns/meter. The current in the solenoid changes as 73.00 sin 120 t. where is in amperes and tis in seconds. Find the magnitude of induced emf (in volts) in the 15-turn coil as a function of time. OE=0.69 cos(120) E=0.69 sin(120) OE=0.21 cos(120) OE=0.21 sin(1200)

  • Any ideas. I'm stuck and need help A 20Ohm coil of 15 turns and radius 10.0...

    Any ideas. I'm stuck and need help A 20Ohm coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 5.0 cm and 1000 turns/meter (see figure below). The current in the solenoid changes as I = b sin (a t), where I is in amperes and t is in seconds. Let a = 120 rad/s and b = 6 A. What is the magnitude of the EMF in the 15-turn coil as a function of time?...

  • = 5. A coil of Nc turns and radius b surrounds a long solenoid of radius...

    = 5. A coil of Nc turns and radius b surrounds a long solenoid of radius a and n turns per meter in Figure. The current in the solenoid changes as lo 10e sin(wt). Circuit has a variable resistor. (a) Find the induced emf (electromotor force) in the coil as a function of time. (b) Find the self-inductance of solenoid. (c) Find the potential V of the circuit when at t=2 s resistor has 2 12, L=0.4 H, and f=10...

  • A coil with 136 turns, a radius of 5.00 cm, and a resistance of 13.92 surrounds...

    A coil with 136 turns, a radius of 5.00 cm, and a resistance of 13.92 surrounds a solenoid with 255 turns/cm and a radius of 3.71 cm ; see the figure. The current in the solenoid changes at a constant rate from 0 to 2.30 A in 130 ms. (Figure 1) Part A What is the magnitude of the induced current in the 136-turn coil. Answer in units of milliamps. View Available Hint(s) ΤΕΙ ΑΣφ ? I = 48.0 mA...

  • A coil with 170 turns, a radius of 5.0 cm, and a resistance of 12Ω surrounds...

    A coil with 170 turns, a radius of 5.0 cm, and a resistance of 12Ω surrounds a solenoid with 240 turns/cm and a radius of 4.5 cm ; see the figure. The current in the solenoid changes at a constant rate from 0 to 2.0 A in 0.15 s . a) Calculate the magnitude and direction of the induced current in the 170-turn coil. b) Which of the following is true? The current flows from left to right through the...

  • A long solenoid with 1500 turns per meter and radius 1.6 cm carries an oscillating current...

    A long solenoid with 1500 turns per meter and radius 1.6 cm carries an oscillating current I = 6.0 sin 100πt, where I is in amperes and t is in seconds. What is the maximum value of the electric field induced at a radius r = 1.2 cm from the axis of the solenoid.

  • A long solenoid has 470 turns per meter. A coil of radius 1.1 cm with 30...

    A long solenoid has 470 turns per meter. A coil of radius 1.1 cm with 30 turns of insulated wire is placed inside the solenoid, its axis parallel to the axis of the solenoid. (a) What is the mutual inductance? H (b) What emf will be induced around the coil if the current in the solenoid winding changes at the rate of 180 A/s? V
