A coil of 15 turns and radius 10 cm is located inside and coaxial with a...

Question

Question

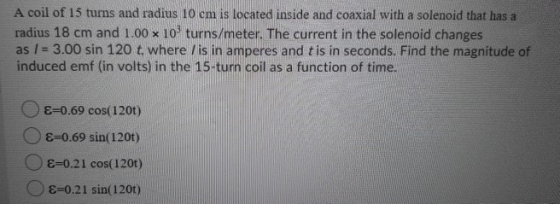

A coil of 15 turns and radius 10 cm is located inside and coaxial with a solenoid that has a radius 18 cm and 1.00 x 10 turns

science physics

Answer 1

Answer #1

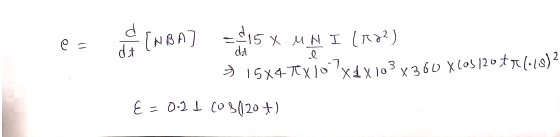

es (MBA) FAI5 X MN I (17?) 15x47x107x4X103x360 XC03120511-48)2 E = 0.21 (03(120+)

Answer 2

Similar Homework Help Questions

A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.10...

A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.10 cm and 1.00 103 turns/meter (see figure below). The current in the solenoid changes as I = 2.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time.
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.50...

A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.50 cm and 1.00x 103 turns/meter (see figure below). The current in the solenoid changes as I -5.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time. 15-turn coil Need Help? RedtWatch
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 1.70 cm

A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 1.70 cm and 1.00 × 10³ turns/meter (see figure below). The current in the solenoid changes as I=5.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time.ɛ= _______

A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.30...

A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.30 cm and 1.00 times 10^3 turns/meter (see figure below). The current in the solenoid changes as I = 8.00 sin 120 t, where I is in amperes and t is in seconds. Find the induced emf (in volts) in the 15-turn coil as a function of time sigma =
Any ideas. I'm stuck and need help A 20Ohm coil of 15 turns and radius 10.0...

Any ideas. I'm stuck and need help A 20Ohm coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 5.0 cm and 1000 turns/meter (see figure below). The current in the solenoid changes as I = b sin (a t), where I is in amperes and t is in seconds. Let a = 120 rad/s and b = 6 A. What is the magnitude of the EMF in the 15-turn coil as a function of time?...
A circular coil of 310 turns and radius 4.50 cm is placed inside and coaxial to...

A circular coil of 310 turns and radius 4.50 cm is placed inside and coaxial to a solenoid with 350 turns/m. If the current in the solenoid is represented by the equation I = a(1 − e−bt) where a = 20.5 A and b = 1.80 s−1, determine the magnitude of the induced emf in the coil when t = 1.50 s.

a 160-turn coil of radius 2.7 cm and resistance 6.8 Ω is coaxial with a solenoid of 260 turns/cm and diameter 4.6 cm. Th...

a 160-turn coil of radius 2.7 cm and resistance 6.8 Ω is coaxial with a solenoid of 260 turns/cm and diameter 4.6 cm. The solenoid current drops from 1.4 A to zero in time interval Δt = 23 ms. What current is induced in amperes in the coil during Δt?
In the figure, a 170-turn coil of radius 2.6 cm and resistance 4.8 is coaxial with...

In the figure, a 170-turn coil of radius 2.6 cm and resistance 4.8 is coaxial with a solenoid of 290 turns/cm and diameter 4.4 cm. The solenoid current drops from 1.7 A to zero in time interval At = 21 ms. What current is induced in amperes in the coil during At? Coil oppoppooopppppppppppp KRMNMRCRRRRRRRRRRRKNX Solenoid Number Units
1. A coil is located at the center of a long solenoid of radius R- 15...

1. A coil is located at the center of a long solenoid of radius R- 15 cm which has 5x10'turns per meter and carries a current I-16A. The coil is coaxial with the solenoid and consist ors of wire, each in shape of a square oflength a-5cm on each ade. solenoid coil A (5 pts) What is the magnetic fux passing through each loop of the coil? Ans. 2.51 Wb B.(5 pts) If the current in the solenoid is not...

In the figure, a 130-turn coil of radius 2.1 cm and resistance 5.4 Q is coaxial...

In the figure, a 130-turn coil of radius 2.1 cm and resistance 5.4 Q is coaxial with a solenoid of 290 turns/cm and diameter 3.2 cm. The solenoid current drops from 1.2 A to zero in time interval At = 35 ms. What current is induced in amperes in the coil during At? Coil Solenoid Number Units the tolerance is +/-7%
